推出 7 英寸触摸屏显示器：提升您的视觉体验
推出 SF-TC700I-9239C-T，这是一款尖端的 7 英寸 TFT-LCD，拥有 RTP 触摸屏界面，采用 800×480 像素的 WVGA 分辨率设计。这款动态显示模块具有多功能性，可与各种 MCU（如 8051、PIC、AVR、ARDUINO 和 ARM）无缝集成。从嵌入式系统到 GPS 设备、医疗仪器到工业机械和安全系统，在需要卓越 TFT 显示器的应用中体验无与伦比的视觉效果。
SF-TC700I-9239C-T 可在 -20℃ 至 +70℃ 的温度范围内完美运行，存储能力从 -30℃ 到 +80℃，确保在各种环境条件下的可靠性。
此外，该显示模块与备受推崇的 Innolux 型号 AT070TN83 完全兼容，为视觉技术的卓越品质和性能树立了标杆。使用 SF-TC700I-9239C-T，以生动、高质量的图像提升您的项目，并释放您的创作潜力。
| Keywords: | 7 Inch TFT Touch Display Module |
| Touch Screen: | Resistive Touch Panel |
| Resolution: | 800*480 |
| Cover Glass Dimension: | ODM |
| Interface: | RGB |
| Surface Luminance: | 280 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Pins: | 40 |
| Control-Board: | With |
| Viewing Direction: | 6 O’clock |
7 英寸 RGB 电阻式触摸屏 TFT 显示模块产品图纸
液晶模组PIN定义
| Pin | Symbol | Function |
| 1 | GND | Power Ground |
| 2 | GND | Power Ground |
| 3 | NC | Not Connect |
| 4 | Vcc | Power Supply for Digital Circuit |
| 5 | Vcc | Power Supply for Digital Circuit |
| 6 | Vcc | Power Supply for Digital Circuit |
| 7 | Vcc | Power Supply for Digital Circuit |
| 8 | NC | Not Connect |
| 9 | DE | Data Enable |
| 10 | GND | Power Ground |
| 11 | GND | Power Ground |
| 12 | GND | Power Ground |
| 13 | B5 | Blue Data 5 (MSB) |
| 14 | B4 | Blue Data 4 |
| 15 | B3 | Blue Data 3 |
| 16 | GND | Power Ground |
| 17 | B2 | Blue Data 2 |
| 18 | B1 | Blue Data 1 |
| 19 | B0 | Blue Data 0 (LSB) |
| 20 | GND | Power Ground |
| 21 | G5 | Green Data 5 (MSB) |
| 22 | G4 | Green Data 4 |
| 23 | G3 | Green Data 3 |
| 24 | GND | Power Ground |
| 25 | G2 | Green Data 2 |
| 26 | G1 | Green Data 1 |
| 27 | G0 | Green Data 0(LSB) |
| 28 | GND | Power Ground |
| 29 | R5 | Red Data 5 (MSB) |
| 30 | R4 | Red Data 4 |
| 31 | R3 | Red Data 3 |
| 32 | GND | Power Ground |
| 33 | R2 | Red Data 2 |
| 34 | R1 | Red Data 1 |
| 35 | R0 | Red Data 0(LSB) |
| 36 | GND | Power Ground |
| 37 | GND | Power Ground |
| 38 | DCLK | Clock Signals ; Latch Data at the Falling Edge |
| 39 | GND | Power Ground |
| 40 | GND | Power Ground |
电气特性
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | 3 | 3.3 | 3.6 | V | If=20 mA |
| Supply Current | If | – | 0.20 | 0.26 | A | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 3.1 | – | W | – |
| Luminous Intensity for LCM | – | – | 500 | – | Cd/m2 | If=20mA |
| Uniformity for LCM | – | 80 | – | – | ％ | If=20 mA |
| LED life time | Hr | 30000 | 50000 | – | Hour | – |
| Backlight Color | White | |||||
可靠性测试
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 | No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C (0.5 hour ¬ 5 min ® 0.5 hour) | 10cycles |

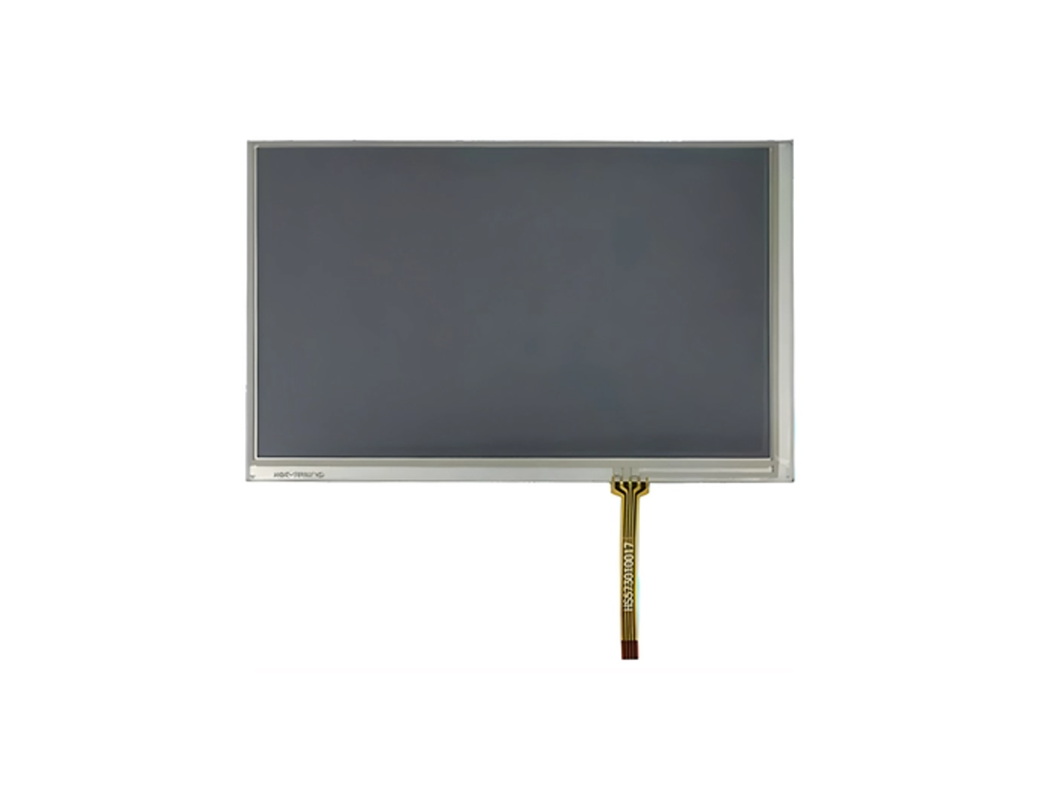

7 英寸 RGB 电阻式触摸屏 TFT 显示模块产品图片
投射电容式 (PCAP) 触摸
投射电容式 (PCAP) 触摸技术提供快速灵敏的响应和专业级可靠性。投射电容式触摸屏专为严格的工业、医疗和汽车应用而设计。我们还可以将 PCAP 触摸屏与液晶显示器 (LCD) 相结合，这是一种有助于简化供应链和组装的集成嵌入式解决方案。
