电容式触摸屏 5 英寸 TFT LCD 显示屏模块中国制造商供应 MIPI 接口

产地：深圳 / 中国

品牌：SAEF

型号：SF-TC500I-8725B-CT

认证：ISO9001 / ISO14000

资料下载视频播放

产品详情

Product:	5" IPS TFT LCD	Resolution:	720x1280 Dots
Interface:	MIPI (Customizable）	Touch Screen:	Capacitive Touchscreen
Viewing Direction:	IPS All Viewing Angle(85/85/85/85)	PCAP Structure:	GFF
LCD Controller:	ILI9881C	CTP Controller:	GT911
Cover Glass Dimension:	Customizable	Pin Number:	25 Pins
Connection:	FPC Plugging (customizable）	Surface Luminance:	300 Cd/m2(nits)
LED Lifetime:	40,000 Hours	Compliance:	REACH & RoHS Compliant
Highlight:	MIPI Interface TFT LCD Display, 5 Inch TFT LCD Display Module, Capacitive Touchscreen TFT LCD Display

电容触摸屏5寸TFT液晶屏720*1280点产品介绍

产品快速回顾

· 型号 SF-TC500I-8725B-CT

· 5英寸TFT液晶屏

· 720*1280点分辨率

· IPS，全视角

· TFT液晶显示屏接口：MIPI

· 带电容式触摸屏

· CTP接口：I2C

描述

Saef Technology SF-TC500I-8725B-CT是一款对角线尺寸为5英寸的TFT LCD模块，分辨率为720x1280像素。该模块内置ILI9881C IC；它包括控制器和驱动IC功能，支持MIPI接口，电源电压（Vdd）范围为2.6V至3.3V。典型值2.8V。该模组可视方向为IPS型自由视角（85/85/85/85）。

SF-TC500I-8725B-CT TFT液晶模块为纵向模式，亮度为300尼特。该模块还可用于新设计的电阻式触摸屏和投射式电容式触摸屏。工作温度范围为-20℃至+70℃；其储存温度范围为-30℃至+80℃。这款 5 英寸 TFT LCD 模块广泛应用于工业设备、扫描仪、家庭自动化、门禁系统、监控设备、分析仪、安全系统、花园灌溉系统等。

特征

Product:	5" IPS TFT LCD
Resolution:	720x1280 Dots
Interface:	MIPI
Viewing Direction:	IPS All Viewing Angle(85/85/85/85)
LCD Controller:	ILI9881C
Cover Glass Dimension:	Customizable
Touch Screen:	Capacitive Touchscreen
PCAP Structure:	GFF
CTP Controller:	GT911
Pin Number:	25 Pins
Surface Luminance:	300 Cd/m2(nits)
Connection:	FPC Plugging (customizable)
LED Lifetime:	40,000 Hours
Compliance:	REACH & RoHS Compliant

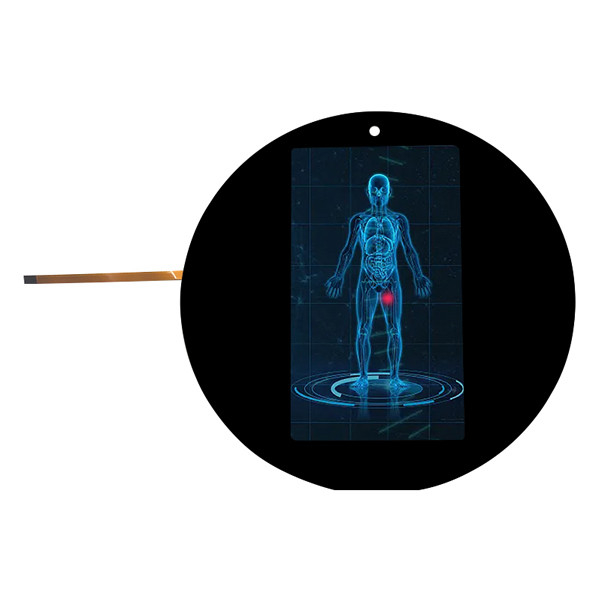

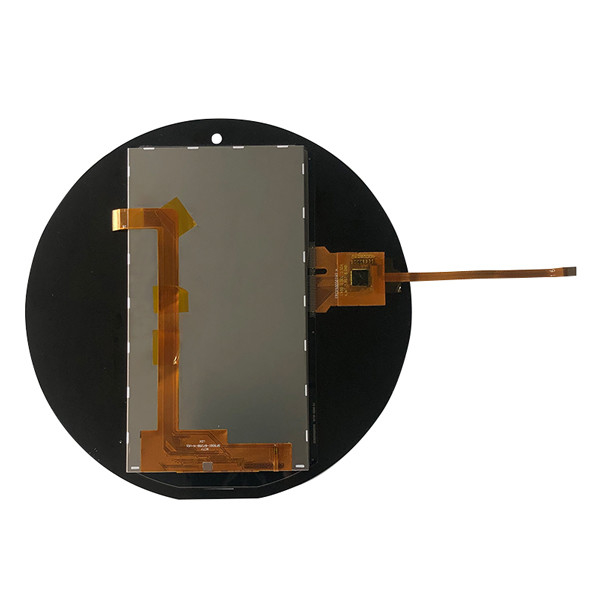

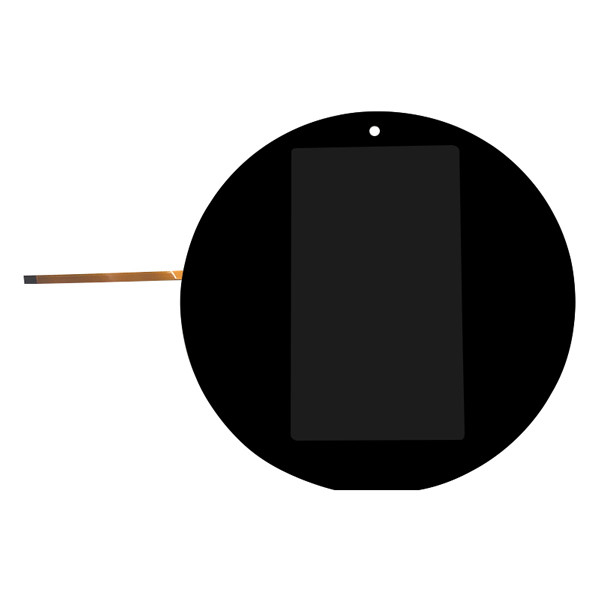

电容触摸屏5寸TFT液晶屏720*1280点产品图

20220423184604_31208

pl94552446-remark

pl94552447-remark

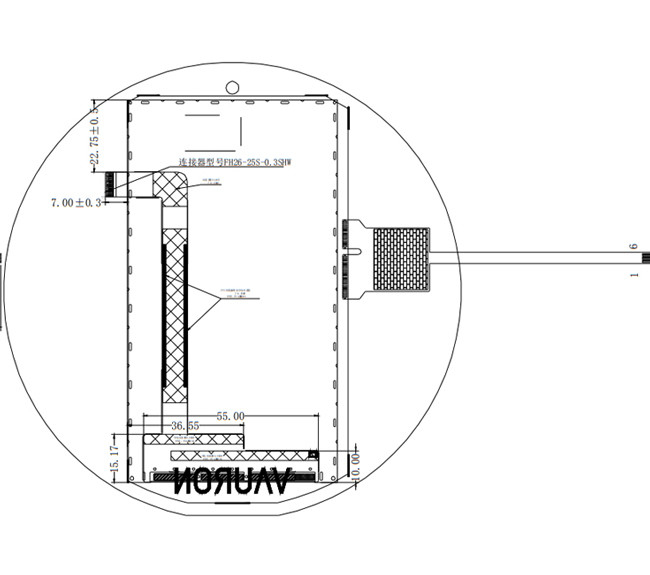

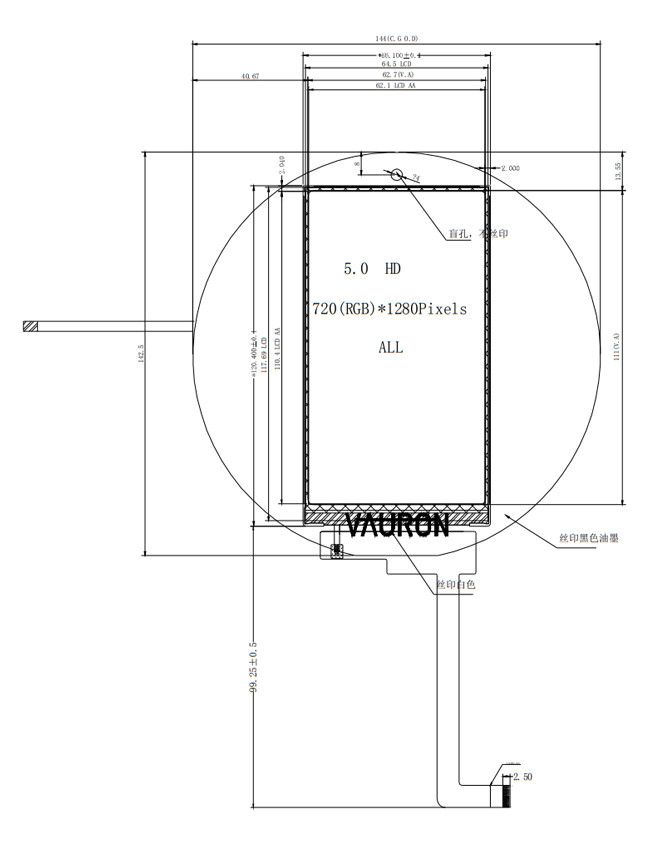

引脚说明

NO.	PIN NAME	I/O	Description
1	LEDA	O	LED Anode
2	LEDK	O	LED Cathode
3	VCC	I	Power Supply 2.8V
4	IOVCC	I	Power Supply 1.8V/2.8V Voltage
5	GND	I	Power Ground
6	CLKP	I/O	DSI-CLK+ clock signals
7	CLKN	I/O	DSI-CLK- clock signals
8	GND	I	Power Ground
9	D0N	I/O	DSI-D0- data signals
10	D0P	I/O	DSI-D0+ data signals
11	GND	I	Power Ground
12	D1N	I/O	DSI-D1- data signals
13	D1P	I/O	DSI-D1+ data signals
14	GND	I	Power Ground
15	D2N	NC	DSI-D2- data signals
16	D2P	NC	DSI-D2+ data signals
17	GND	I	Power Ground
18	D3N	NC	DSI-D3- data signals
19	D3P	NC	DSI-D3+ data signals
20	GND	I	Power Ground
21	TE	I	Tearing effect output pin
22	LCD_ID	I	LCD_ID
23	RESET	I	Register select pin
24	GND	I	Power Ground
25	GND	I	Power Ground

最大绝对限制

Item	Symbol	Value	Unit
Power supply voltage for logic	VDD	0.3~4.6	V
Input voltage	Vin	VDD+0.3	V
Operating temperature	Topr	-20 to 70	°C
Storage temperature	Tstg	-30 to 80	°C

直流特性 (VDD=2.8V,Ta=25°C)

Item	Symbol	Min	Type	Max	Unit	Test condition
Operating voltage	VDD	2.6	2.8	3.3	V	-
Supply current	IDD	-	-	-	mA	VDD=2.8V,Ta=25°C
Input voltage	VIH	0.8VDD	-	VDD	V	-
Input voltage	VIL	0	-	0.3VDD	V	-
Input leakage current	IIL	-1.0	-	-	mA	VIN=VDD or VSS

背光电光特性

Item	Symbol	MIN	TYP	MAX	UNIT	Test Condition	Note
Supply Voltage	Vf		19.2		V	If= 40 mA	-
Supply Current	If	-	40	-	mA	-	-
Reverse Voltage	Vr	-	-	5	V	-
Power dissipation	Pd	-	768	-	mW	-
Luminous Intensity for LCM	-		300	-	Cd/m2	If= 40 mA	-
Uniformity for LCM	-	80	-	-	％	If= 40 mA	-
Backlight Color	White

光学特性

No.	ITEM		Symbol	Conditions	Specification			Unit	Note
No.	ITEM		Symbol	Conditions	Min	Typ	Max	Unit	Note
1	Response Time		Tr+Tf	25℃	-	35	40	Ms	(1)(2)
2	Transmittance (With PL)		T(%)	-	-	4.3	-	-	-
3	Contrast Rate		Cr	θ=0,Normal viewing angle	900	1200	-	-	(1)(3)
4	Viewing Angle	Hor.	θR	CR>10		80	-	Deg	-
		Hor.	θL			80	-
		Ver.	Θ+			80	-
		Ver.	Θ-			80	-
