7 英寸 TFT LCD 显示屏 Innolux AT070TN83 800x480 点 40 针 RGB 接口RTP

产地：深圳 / 中国

品牌：SAEF

型号：SF-TC700I-9239D-T

认证：ISO9001 / ISO14000

资料下载视频播放

产品详情

Keywords:	7 Inch TFT Touch Display Module	Touch Screen:	Resistive Touch Panel
Resolution:	800*480	Cover Glass:	ODM
Interface:	RGB	Surface Luminance:	300 Cd/m2
LED Lifetime:	40,000 Hours	Pins Number:	40
Control-Board:	With	Viewing Direction:	6 O'clock
Highlight:	7 Inch TFT LCD Display, Innolux AT070TN83, 800x480 Dots TFT LCD Display

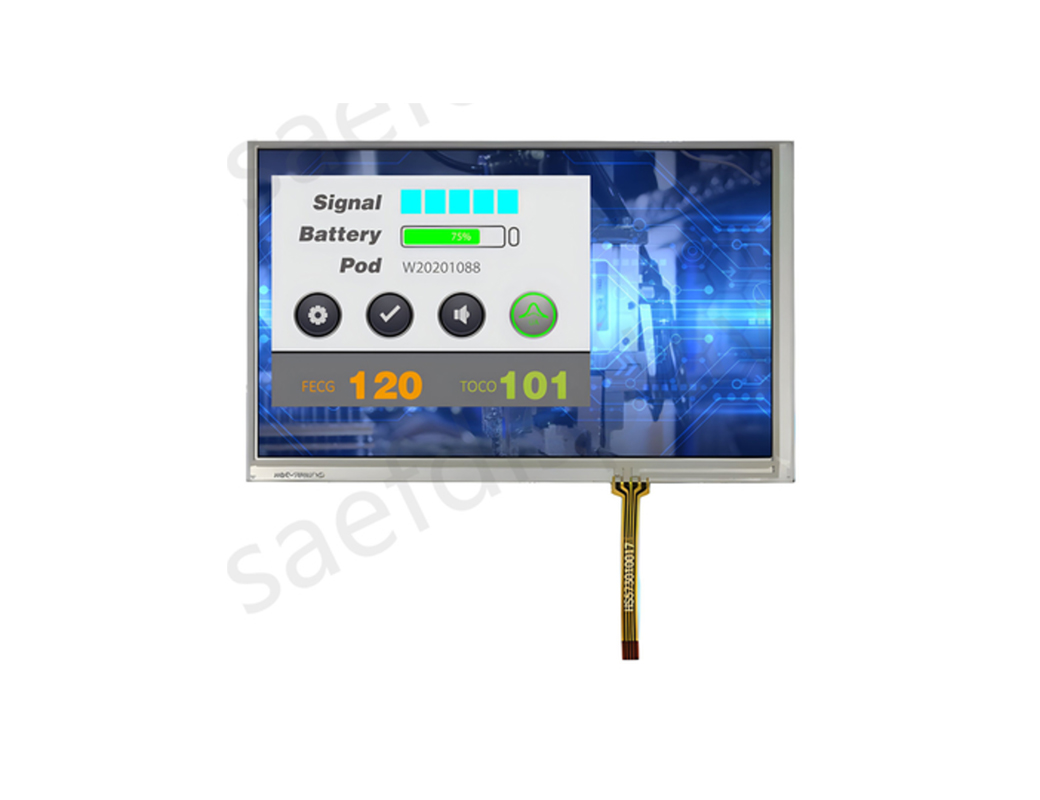

7" TFT 800x480 点阵 RTP 产品介绍

型号： SF-TC700I-9239D-T（与群创AT070TN83完全兼容）

SF-TC700I-9239D-T是一款7英寸TN透射式彩色有源矩阵TFT液晶显示器，配备电阻式触摸屏，分辨率为800x480点。模组尺寸为165（宽）X104（高）X6.5（深）mm；有效面积152.4（宽）X91.44（高）毫米。该 TFT 显示器支持 24 位 RGB 接口。借助防眩光显示表面，屏幕不会反射光线并保持更好的图像质量。

该模块的对比度为500:1（典型值），亮度为300尼特（典型值）。 LCM的供电电压范围为3.0~3.6V，典型值为3.3V。该模块工作温度范围为-20至+70℃，存储温度范围为-30至+80℃。

特征

Item	Specification
LCD size	7.0 inch(Diagonal)
Driver element	a-Si TFT active matrix
Resolution	800X3(RGB)X480
Display mode	Normally white, Transmissive
Dot pitch	0.0635(W)X0.1905(H) mm
Active area	152.4 (W)X91.44 (H) mm
Module size	165(W)X104(H)X6.5(D) mm
Surface treatment	Anti-Glare
Color arrangement	RGB-stripe
Interface	Digital (TTL)
Backlight power consumption	2.500W (Typ.)
Panel power consumption	0.825W (Typ.)

7" TFT 800x480 点，带 RTP 产品图纸

20240721175139_99739

20240721175233_64659

引脚定义

Pin No.	Symbol	I/O	Function
1	VLED	P	Power supply for LED Driver
2	VLED	P	Power supply for LED Driver
3	ADJ	I	Adjust the led brightness with PWM Pulse
4	GLED	P	Ground for LED circuit
5	GLED	P	Ground for LED circuit
6	VCC	P	Power supply for digital circuit
7	VCC	P	Power supply for digital circuit
8	MODE	I	DE or HV mode control
9	DE	I	Data enable
10	VS	I	Vsync signal input
11	HS	I	Hsync signal input
12	GND	P	Power ground
13	B5	I	Blue data input (MSB)
14	B4	I	Blue data input
15	B3	I	Blue data input
16	GND	P	Power ground
17	B2	I	Blue data input
18	B1	I	Blue data input
19	B0	I	Blue data input(LSB)
20	GND	P	Power ground
21	G5	I	Green data input(MSB)
22	G4	I	Green data input
23	G3	I	Green data input
24	GND	P	Power ground
25	G2	I	Green data input
26	G1	I	Green data input
27	G0	I	Green data input(LSB)
28	GND	P	Power ground
29	R5	I	Red data input(MSB)
30	R4	I	Red data input
31	R3	I	Red data input
32	GND	P	Power ground
33	R2	I	Red data input
34	R1	I	Red data input
35	R0	I	Red data input(LSB)
36	GND	P	Power ground
37	DCLK	I	Sample clock
38	GND	P	Power ground
39	L/R	I	Select left or right scanning direction
40	U/D	I	Select up or down scanning direction

典型操作条件

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power voltage	VCC	3.1	3.3	3.5	V
	VLED	4.8	5	5.2	V
	Icc	-	250	300	mA
Current consumption	ILED	-	500	550	mA
Input logic high voltage	VIH	0.7VCC	-	VCC	V
Input logic low voltage	VIL	0	-	0.3VCC	V
LED life time	-	40,000	-	-	Hr

光学规格

Item	Symbol	Condition	Values			Unit
Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Viewing angle (CR≥ 10)	θL	Φ=180°(9 o’clock)	60	70	-	degree
	θR	Φ=0°(3 o’clock)	60	70	-
	θT	Φ=90°(12 o’clock)	40	50	-
	θB	Φ=270°(6 o’clock)	60	70	-
Response time	TON	Normal θ=Φ=0°	-	10	20	msec
Response time	TOFF		-	15	30	msec
Contrast ratio	CR	400	500	-	-
Color chromaticity	WX	0.26	0.31	0.36	-
Color chromaticity	WY	0.28	0.33	0.38
Luminance	L		250	300	-	cd/m2
Luminance uniformity	YU		70	75	-	%
