户外高亮度 1000nits 7 英寸 TFT LCD 模块 1024*600 LVDS 接口

产地：深圳 / 中国

品牌：SAEF

型号：SFTO700SH-7168A10-N

认证：ISO9001 / ISO14000

资料下载视频播放

产品详情

IPS TFT LCD 7" LVDS 显示屏1000nits 1024x600dots 产品介绍

型号： SFTO700SH-7168A10-N

LVDS 接口是指低压差分信号传输。该传输技术主要是为了减少高比特率宽带传输时功耗高、EMI电磁干扰大的缺点而开发的，从而能够有效实现低噪声、低功耗。

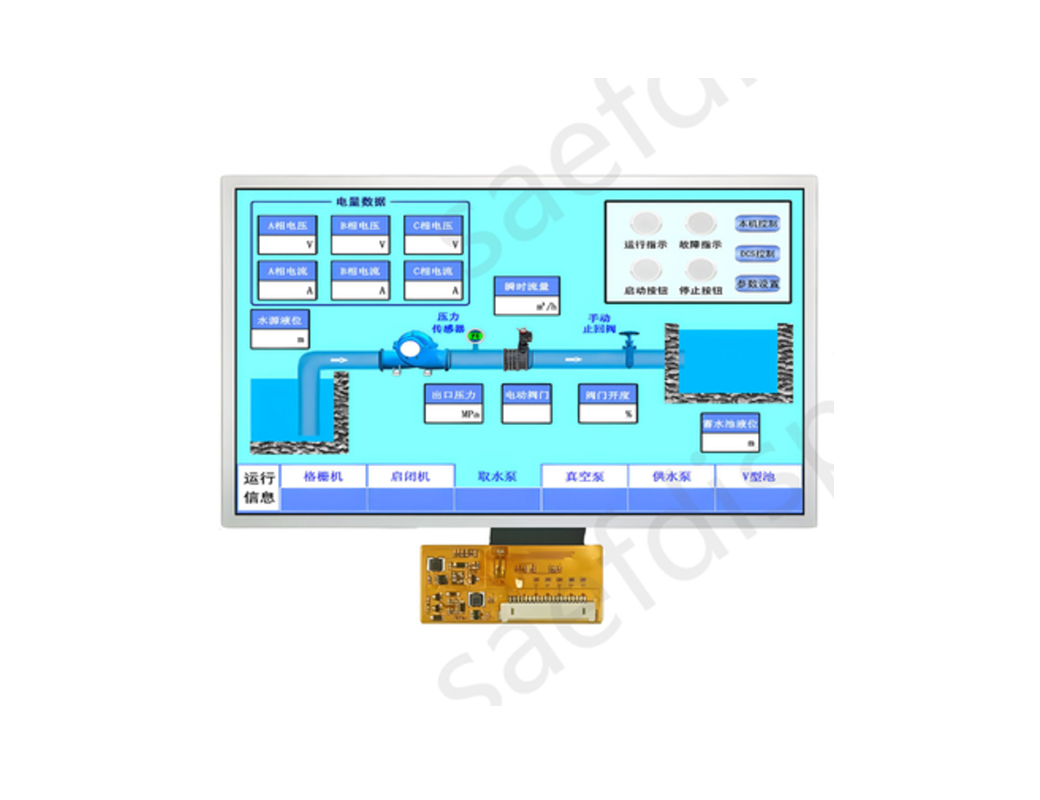

型号 SFTO700SH-7168A10-N 是一款 7 英寸 IPS 透射式彩色有源矩阵 TFT LCD 显示屏，支持 1024x600 点的分辨率。模块尺寸为165(H)×100(V)×5.7(D)mm；有效面积154.2144(H)×85.92(V)mm。该 TFT 显示器支持 LVDS 接口。借助防眩光显示表面，屏幕不会反射光线并保持更好的图像质量。

LCD的亮度值为1000cd/m2，对比度（典型值）为500:1。电源电压范围3.0V至3.6V；典型值为3.3V。工作温度范围为-30℃至+80℃，存储温度范围为-30℃至+80℃。

特征

No.	Item	Specification	Unit
1	Panel Size	7	inch
2	Number of Pixels	1024 × 3(RGB) ×600	pixels
3	Active Area	154.2144(H) ×85.92(V)	mm
4	Pixel Pitch	0.1506(H) ×0.1432(V)	mm
5	Outline Dimension	165(H) × 100(V) × 5.7(D)	mm
6	Pixel arrangement	RGB - stripe	-
7	Display Mode	IPS with Normally Black	-
8	Viewing Direction	ALL Viewing Direction	-
9	Display Color	16.7M	-
10	Interface	LVDS	-
11	Backlight	White LED	-
12	Brightness	1000	cd/m2
13	Drive IC	-	-
14	Operation Temperature	-30~80	ºC
15	Storage Temperature	-30~85	ºC
16	Weight	116(Typ.)	g

产品图纸

20240722001142_81928

引脚定义

Pin No.	Symbol	I/O	Function
1	VDD	P	Power supply VDDIN=3.3V
2	VDD	P	Power supply VDDIN=3.3V
3	LED_EN	I	Power supply VDDIN(3.3~5.0V)
4	GND	P	Ground
5	RXIN0N	I	0-LVDS differential data
6	RXIN0P	I	0+LVDS differential data
7	GND	P	Ground
8	RXIN1N	I	1-LVDS differential data
9	RXIN1P	I	1+LVDS differential data
10	GND	P	Ground
11	RXIN2N	I	2-LVDS differential data
12	RXIN2P	I	2+LVDS differential data
13	GND	P	Ground
14	RX_CLKN	I	-LVDS differential clock input
15	RX_CLKP	I	+LVDS differential clock input
16	GND	P	Ground
17	RXIN3N	I	3-LVDS differential clock input
18	RXIN3P	I	3+LVDS differential clock input
19	PWM	I	Backlight brightness:apply 0.7V to 1.4V DC voltage signal
20	VLED	P	Power supply VLED=5~12V(Typ.)

典型操作条件

Item		Symbol	Values			Unit
Item		Symbol	Min.	Typ.	Max.	Unit
Digital Supply Voltage		VDD	3	3.3	3.6	V
Power Supply for LED		VLED	4.8	5	12	V
Power IC provides voltage		AVEE	-6	-5	-4.5	V
Power IC provides voltage		AVDD	4.5	5.5	6	V
Driver IC provides voltage internally		VGH	9	-	20	V
Driver IC provides voltage internally		VGL	-20	-	-9	V
Input Signal Voltage	Low Level	VIL	0	-	0.3*VDD	V
Input Signal Voltage	High Level	VIH	0.7*VDD	-	VDD	V

光学规格

Item		Symbol	Condition	Values			Unit
Item		Symbol	Condition	Min.	Typ.	Max.	Unit
Viewing angle		Θu	CR≥10	-	85	-	degree
		ΘD		-	85	-
		ΘL		-	85	-
		ΘR		-	85	-
Response time		TON+TOFF	θ=Φ =0 °, Normal viewing angle	-	19	25	ms
Contrast ratio		CR		400	500	-	-
Luminance		L			1000	-	cd/m²
Luminance uniformity		YU		70	75	-	%
Color chromaticity (CIE1931)	White	WX		0.276	0.296	0.316
	White	WY		0.302	0.322	0.342
	Red	RX		-	-	-
	Red	RY		-	-	-
	Green	GX		-	-	-
	Green	GY		-	-	-
	Blue	BX		-	-	-
	Blue	BY		-	-	-
