8.8 英寸条形 MIPI TFT 显示屏 480×1920 像素 产品介绍
►尺寸：8.8 英寸
►分辨率：480×1920 点
►视角：IPS
►MIPI 接口
►驱动 IC：OTA7290B
►控制板：无
►亮度（cd/m²）：550
►触摸屏：无触摸屏，CTP 可选
描述
这款条形显示器拥有接近 4:1 的超宽纵横比，非常适合在狭窄空间中使用。可将此显示器用作电器或仪表板上的信息面板。此显示器可以显示在其他显示器上被挤压的宽图形，也可以分成几部分来代替多个其他显示器。
显示器的有效区域对角线为 8.8 英寸。它具有 MIPI 接口和表面亮度为 550 尼特的白色 LED 背光。
条形 8.8 英寸宽屏 TFT LCD 显示器；独家提供的新型 TFT 显示器尺寸和分辨率。这款 8.8 英寸条形宽 TFT LCD 显示器提供分辨率为 480×1920 像素的高质量彩色图像；它特别适用于工业设备和汽车应用、服务器系统、POS 系统、动态信息显示、音频系统和广告显示。
| Keywords: | Bar Type TFT 8.8 Inch |
| Resolution: | 480×1920 |
| Interface: | MIPI |
| Viewing Direction: | IPS All Viewing Angles |
| Driving Voltage: | 3.3 V |
| Surface Luminance: | 550 Cd/m2 (nits) |
| Touch Screen: | No |
| Contrast Ratio: | 1000:01:00 |
| Operating Temp.: | –20℃ To +70℃ |
| Storage Temp: | –30℃ To +80℃ |
| Connection: | Connector Type |
| Pins: | 40 PINS |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |

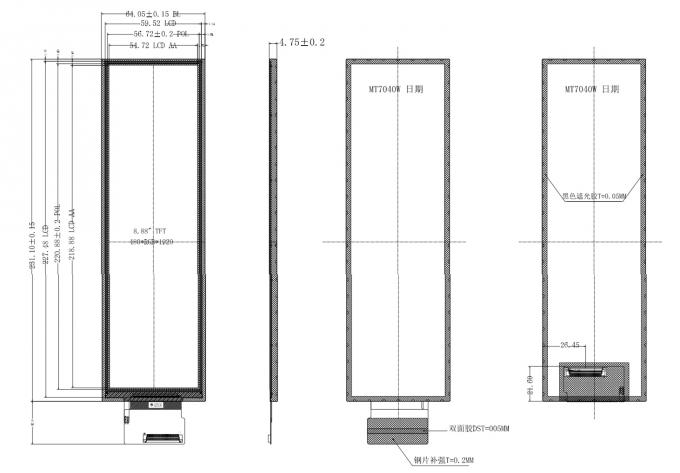

8.8 英寸条形 TFT 显示屏 480×1920 像素 MIPI 接口产品图纸
引脚定义
| NO. | Pin Name | Description |
| 1 | GND | Ground |
| 2 | D0P | DSI-D0+ data signals |
| 3 | D0N | DSI-D0- data signals |
| 4 | GND | Ground |
| 5 | D1P | DSI-D1+ data signals |
| 6 | D1N | DSI-D1- data signals |
| 7 | GND | Ground |
| 8 | CLKP | DSI-Clock+ signals |
| 9 | CLKN | DSI-Clock- signals |
| 10 | GND | Ground |
| 11 | D2P | DSI-D2+ data signals |
| 12 | D2N | DSI-D2- data signals |
| 13 | GND | Ground |
| 14 | D3P | DSI-D3+ data signals |
| 15 | D3N | DSI-D3- data signals |
| 16 | GND | Ground |
| 17 | GND | Ground |
| 18 | IOVCC | Power Supply 1.8V |
| 19 | IOVCC | Power Supply 1.8V |
| 20 | REFCLK/NC | reference clock/NC |
| 21 | SDA | Data signal Dummy |
| 22 | SCL | Clock signal Dummy |
| 23 | BIST | Built-in Self Test |
| 24 | RSTB | LCM reset signals |
| 25 | STBYB | Standby mode control H:normal operation;L:disable display |
| 26 | AVDD/ NC | NC |
| 27 | GND | Ground |
| 28 | K | LED Cathode |
| 29 | K | LED Cathode |
| 30 | GND | Ground |
| 31 | VGL/NC | Gate OFF Voltage/NC |
| 32 | GND | Ground |
| 33 | GND | Ground |
| 34 | VGH/NC | Gate ON Voltage/NC |
| 35 | LEDA | LED anode |
| 36 | LEDA | LED anode |
| 37 | TE | Tearing effect output |
| 38 | VCI | Power Supply 3.3V |
| 39 | VCI | Power Supply 3.3V |
| 40 | VCOM/NC | VCOM voltage/NC |
绝对最大额定值
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VCI | -0.5~4 | V |
| Input voltage | Vin | VVCI+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
光学特性
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| View Angles | θT | CR≧10 | 75 | 80 | – | Degree |
| θB | 75 | 80 | – | |||
| θL | 75 | 80 | – | |||
| θR | 75 | 80 | – | |||
| Contrast Ratio | CR | θ=0° | 800 | 1000 | – | – |
| Transmittance (with Polarizer) | T (%) | 4.03 | 4.53 | |||
| Response Time | TON | 25℃ | – | 30 | 40 | ms |
| TOFF | ||||||
| Uniformity | U | – | 70 | 80 | – | % |
| NTSC | – | – | – | 70 | – | % |
| Luminance | L | 550 | – | cd/m2 |

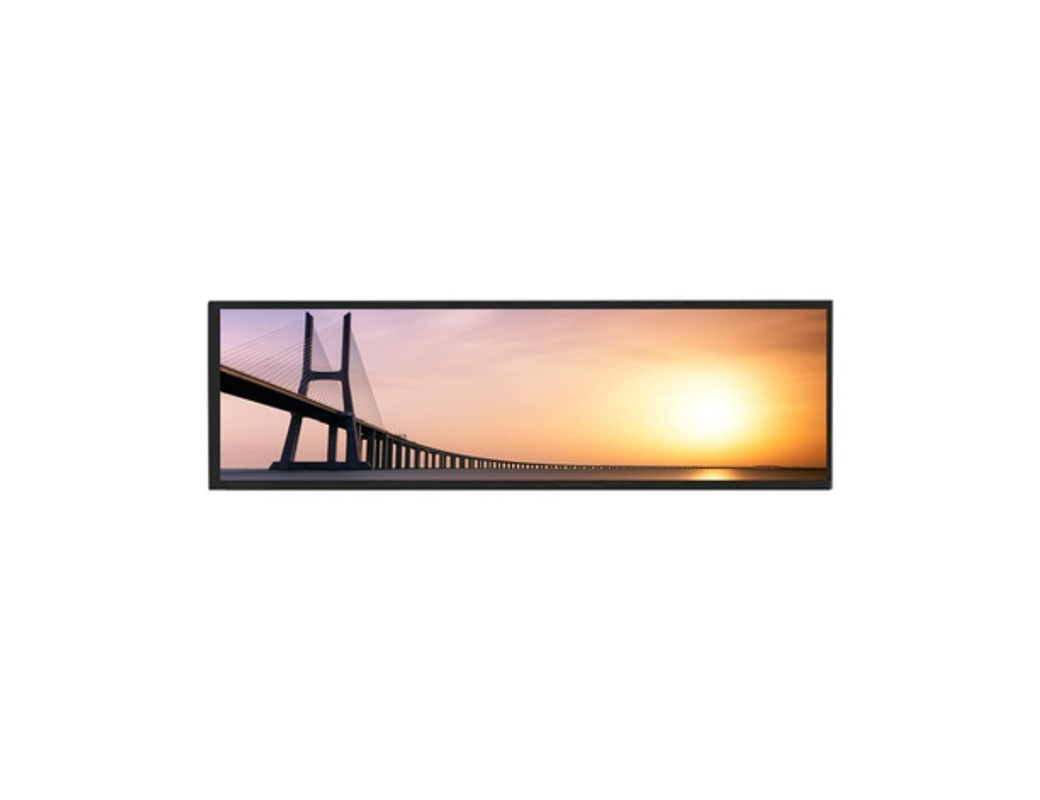

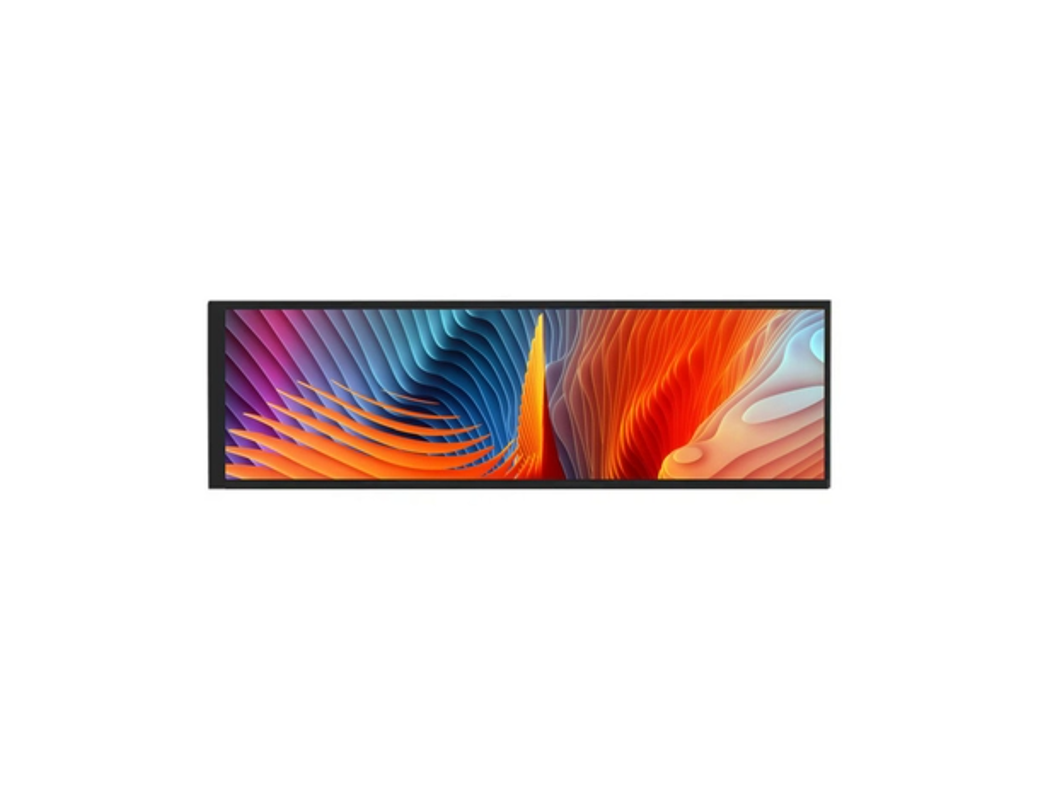

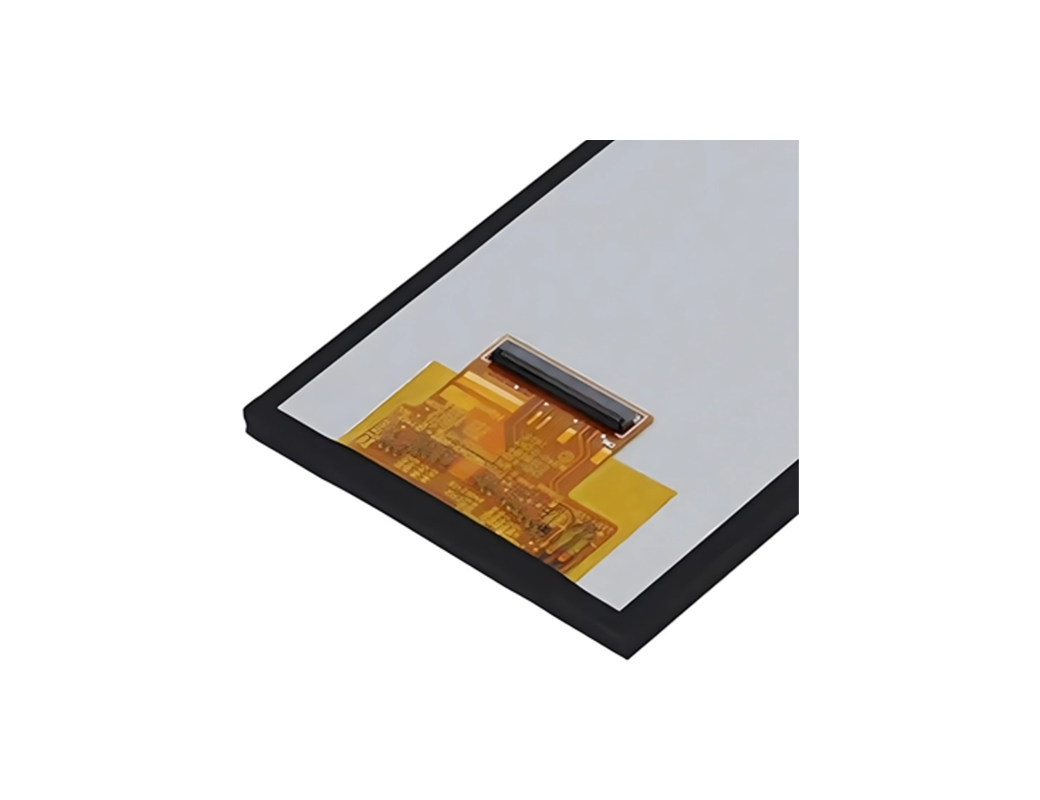

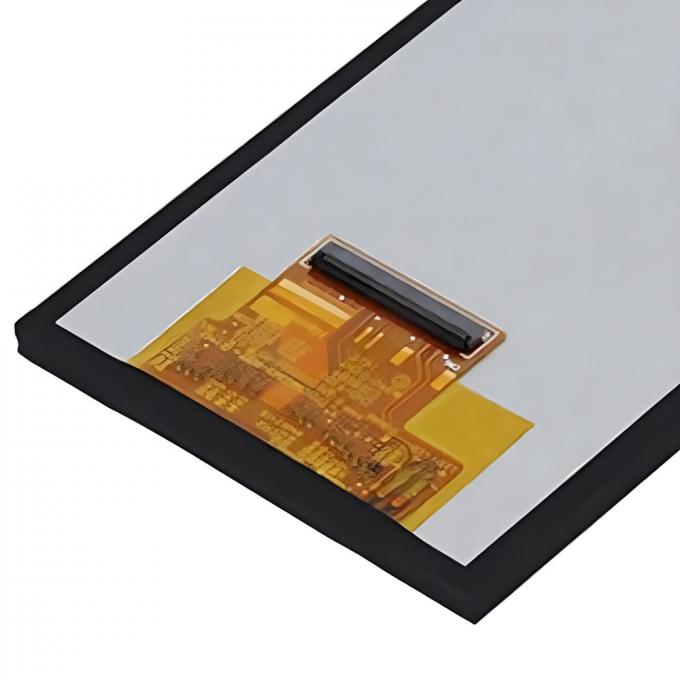

8.8 英寸条形 TFT 显示屏 480×1920 像素 MIPI 接口 产品图片
