| Technology: | Electrophoretic E-ink (Bi-stable) | Screen Size: | 2.13 Inch (54.1 Mm Diagonal) |
| Special Features:: | Integrated Frontlight | Resolution: | 122 (H) × 250 (V) Pixels | 130 DPI |
| Interface: | Configurable SPI (3-w/4-w Via BS1 Pin) | Refresh Time: | Full Update: 1.8 Sec; Partial Update: 0.3 Sec |
| Active Area: | 23.7 × 48.55 （mm） | Color: | Monochrome (Black/White) |
| Power Supply: | 10.5 MW (Typ.) | Viewing Angle: | 180° (Ultra-wide) |
| Optical: | Reflectivity: 35% (Typ.) | Operating Temp: | 0°C To +50°C |
| Storage Temp.: | -25°C To +70°C | Compliance: | REACH & RoHS Compliant & Halogen Free |
| Customization:: | CTP Optional Via I²C, OCA Lamination Support | Reliability: | Validated For 240 Hrs At 90% RH, ±8kV ESD, UV Exposure |
| Highlight: | 2.13 inch E-ink display with frontlight, E-ink epaper display with 0.3s refresh, small E-ink screen with partial refresh | ||
面向工业物联网的集成前照灯超低功耗电子纸
SFE213QXBW-7353A-FL是一款2.13英寸的电子墨水显示模块，内置前光并支持0.3秒部分刷新，专为需要阳光下可读性和即时内容更新的电池供电设备而设计。该模块非常适合电子货架标签（ESL）、便携式医疗设备和智能传感器，它将双稳态技术（零功耗保持图像）与SPI可编程波形优化相结合，实现了极高的能效。
恶劣环境的主要区别
（1）集成的前灯和快速刷新
• 边线LED前光确保在弱光条件下（例如仓库，夜班）均匀的背光。
• 0.3秒的部分刷新（vs. 1.8S完整更新）在动态数据更改（价格更新，传感器读数）中最小化UI延迟，将功耗降低70％（第8页）。
（2）工程师优化的SPI控制
• 双模式SPI（可通过BS1引脚选择3线/4线）与低功率MCU（ESP32，NRF52）兼容。
• 温度感知的波形LUT（命令0x32）和VCOM OTP编程（命令0x2a）消除了操作温度（-25°C至 +70°C存储）的屏幕闪烁。
（3）用于交互式应用程序的自定义CTP集成
• 可通过手套/触摸支持的专用I²C（TSCL/TSDA）的可扩展电容式触摸（CTP）。
• 硬化的表面：反胶合涂层（≥6h硬度）在高流量的零售/工业环境中抵抗了划痕。
系统集成的技术规格
• 超低功率体系结构：10.5兆瓦的主动力量，1-5 µA深度睡眠（命令0x10）长达十年的电池寿命。
• 光学卓越：35％的反射率（CIE 1931标准），180°视角和45°照明下的8：1对比度（第23页）。
• 可靠性：在90％RH湿度，±8KV ESD和UV耐药性的情况下，经过240小时的验证（第24页）。
• 纤细的轮廓：1.65毫米厚度，带有FPC加强剂，可用于振动。
合规性和自定义
◾EU/美国认证：ROHS 3（EU 2015/863），REACH SVHC和EU 2025/40可回收包装。
CTP自定义：OCA层压，抗指纹涂层，延长温度（-30°C〜85°C）。
目标应用
• 零售：ESL，数字价格标签
• 医疗保健：药物跟踪器，便携式诊断
• 工业：物联网传感器，仓库物流跟踪器
• 智能城市：停车收费表，环境监视器
▶在此页面中下载数据表。
▶请求CTP样本：具有15天交货时间的自定义触摸解决方案。

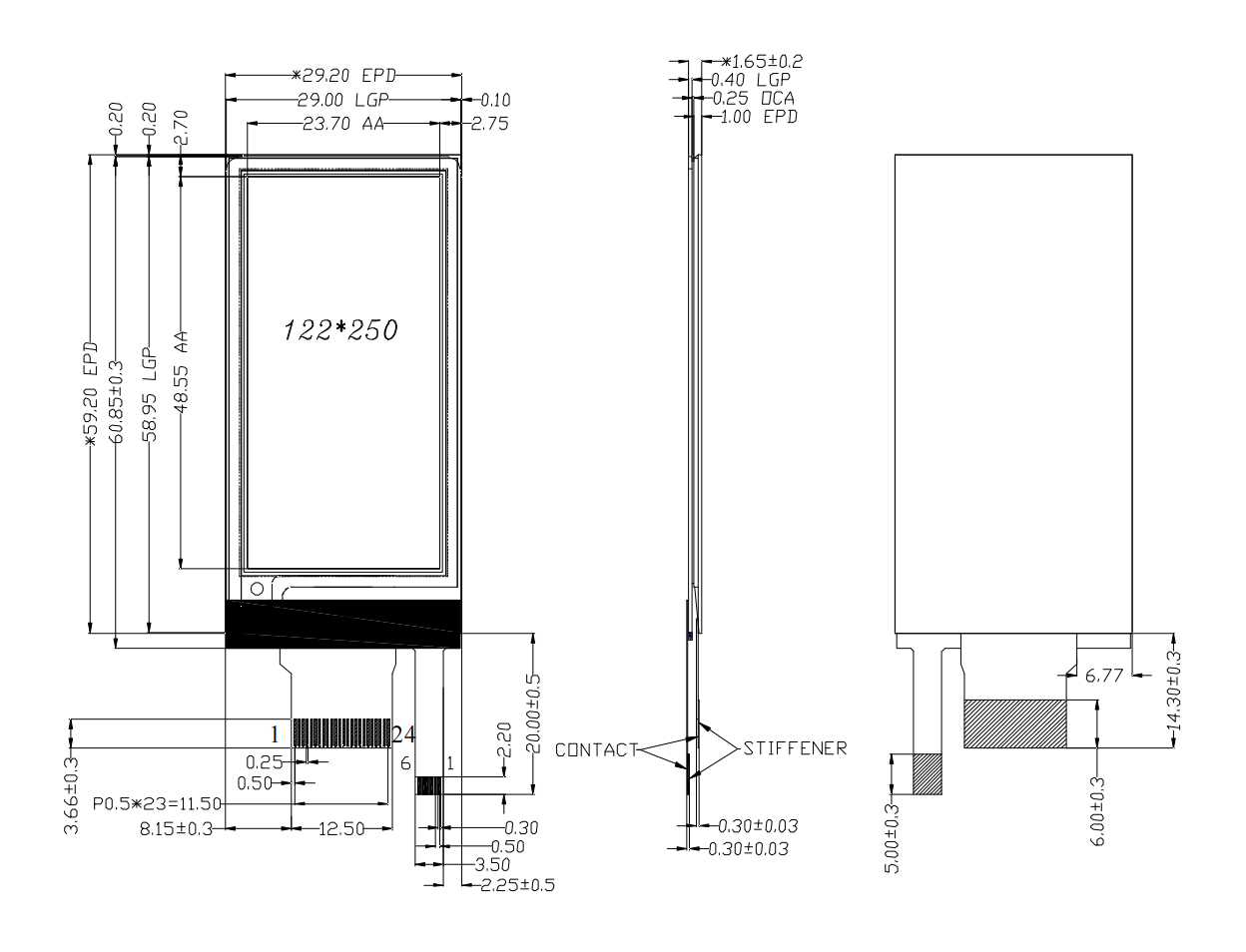

机械尺寸
机械规格
| Parameter | Specifications | Unit | Remark |
| Screen Size | 2.13 | Inch | |
| Display Resolution | 122(H)×250(V) | Pixel | Dpi:130 |
| Active Area | 23.7×48.55 | mm | |
| Pixel Pitch | 0. 1943×0.1942 | mm | |
| Pixel Configuration | Square | ||
| Outline Dimension | 29.2(H)×59.2 (V) ×1.65(D) | mm | |
| Weight | TBD | g |
绝对最大额定值
| Parameter | Symbol | Rating | Unit |
| Logic supply voltage | VCI | -0.5 to +6.0 | V |
| Logic Input voltage | VIN | -0.5 to VCI +0.5 | V |
| Logic Output voltage | VOUT | -0.5 to VCI +0.5 | V |
| Operating Temp range | TOPR | 0 to +50 | ºC |
| Storage Temp range | TSTG | -25 to+70 | ºC |
| Optimal Storage Temp | TSTGo | 23±2 | ºC |
| Opt ma Storage Hum ty | HSTGo | 55± | RH |
面板直流特征
| Parameter | Symbol | Conditions | Applicable pin | Min. | Typ. | Max | Units |
| Single ground | VSS | - | - | 0 | - | V | |
| Logic supply voltage | VCI | - | VCI | 2.2 | 3.0 | 3.7 | V |
| Core logic voltage | VDD | VDD | 1.7 | 1.8 | 1.9 | V | |
| High level input voltage | VIH | - | - | 0.8 VCI | - | - | V |
| Low level input voltage | VIL | - | - | - | - | 0.2 VCI | V |
| High level output voltage | VOH | IOH = -100uA | - | 0.9 VCI | - | - | V |
| Low level output voltage | VOL | IOL = 100uA | - | - | - | 0.1 VCI | V |
| Typical power | PTYP | VCI =3.0V | - | - | 10.5 | - | mW |
| Deep sleep mode | PSTPY | VCI =3.0V | - | - | 0.003 | - | mW |
| Typical operating current | Iopr_VCI | VCI =3.0V | - | - | 3.5 | - | mA |
| Image update time | - | 25 ºC | - | - | 1.8 | - | sec |
| Sleep mode current | Islp_VCI | DC/DC off No clock No input load Ram data retain | - | - | 20 | uA | |
| Deep sleep mode current | Idslp_VCI | DC/DC off No clock No input load Ram data not retain | - | - | 1 | 5 | uA |
注2：图像更新时间（完整）：1.8秒； 图像更新时间（部分）：0.3秒。
光学规格
| Symbol | Parameter | Conditions | Min | Typ. | Max | Units |
| R | White Reflectivity | White | 30 | 35 | - | % |
| CR | Contrast Ratio | Indoor | 8:1 | - | ||
| T update | Image update time | at 25 °C | 3 | - | sec | |
| L e | Topr | t mes or 5years |
输入 /输出引脚分配
| No. | Name | I/O | Description |
| 1 | NC | Do not connect with other NC pins | |
| 2 | GDR | O | N-Channel MOSFET Gate Drive Control |
| 3 | RESE | I | Current Sense Input for the Control Loop |
| 4 | NC | NC | Do not connect with other NC pins |
| 5 | VSH2 | C | Positive Source driving voltage(Red) |
| 6 | TSCL | O | This pin is I2C Interface to digital temperature sensor Clock pin. External pull up resistor is required when connecting to I2C slave. When not in use:VSS |
| 7 | TSDA | I/O | This pin is I2C Interface to digital temperature sensor Data pin. External pull up resistor is required when connecting to I2C slave. When not in use: VSS |
| 8 | BS1 | I | Bus Interface selection pin |
| 9 | BUSY | O | Busy state output pin |
| 10 | RES# | I | Reset signal input. Active Low. |
| 11 | D/C# | I | Data /Command control pin |
| 12 | CS# | I | Chip select input pin |
| 13 | SCL | I | Serial Clock pin (SPI) |
| 14 | SDA | I/O | Serial Data pin (SPI) |
| 15 | VDDIO | P | Power Supply for interface logic pins It should be connected with VCI |
| 16 | VCI | P | Power Supply for the chip |
| 17 | VSS | P | Ground |
| 18 | VDD | C | Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS |
| 19 | VPP | P | FOR TEST |
| 20 | VSH1 | C | Positive Source driving voltage |
| 21 | VGH | C | Power Supply pin for Positive Gate driving voltage and VSH1 |
| 22 | VSL | C | Negative Source driving voltage |
| 23 | VGL | C | Power Supply pin for Negative Gate driving voltage VCOM and VSL |
| 24 | VCOM | C | VCOM driving voltage |

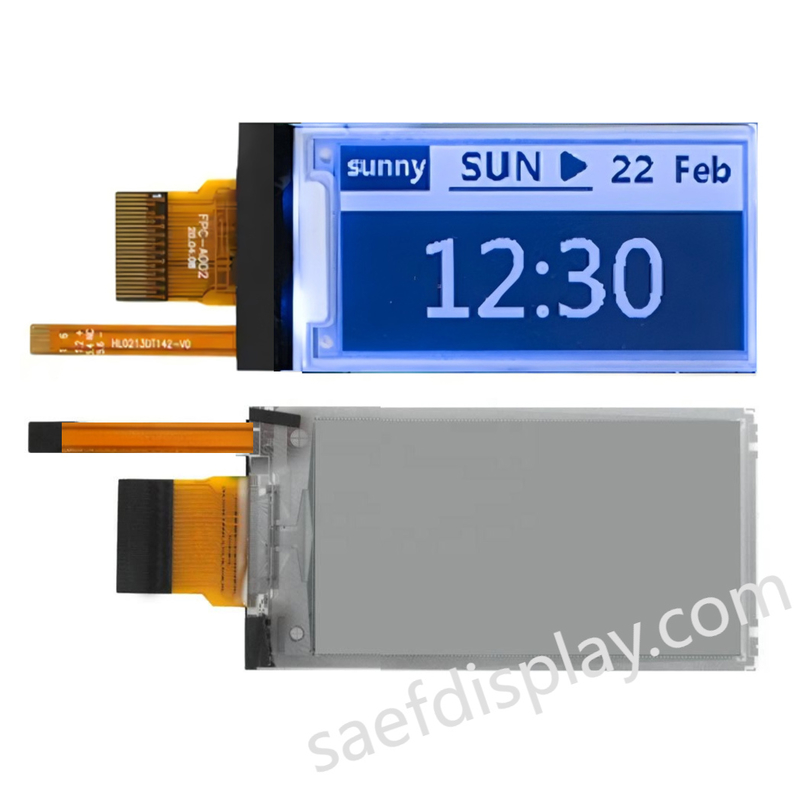

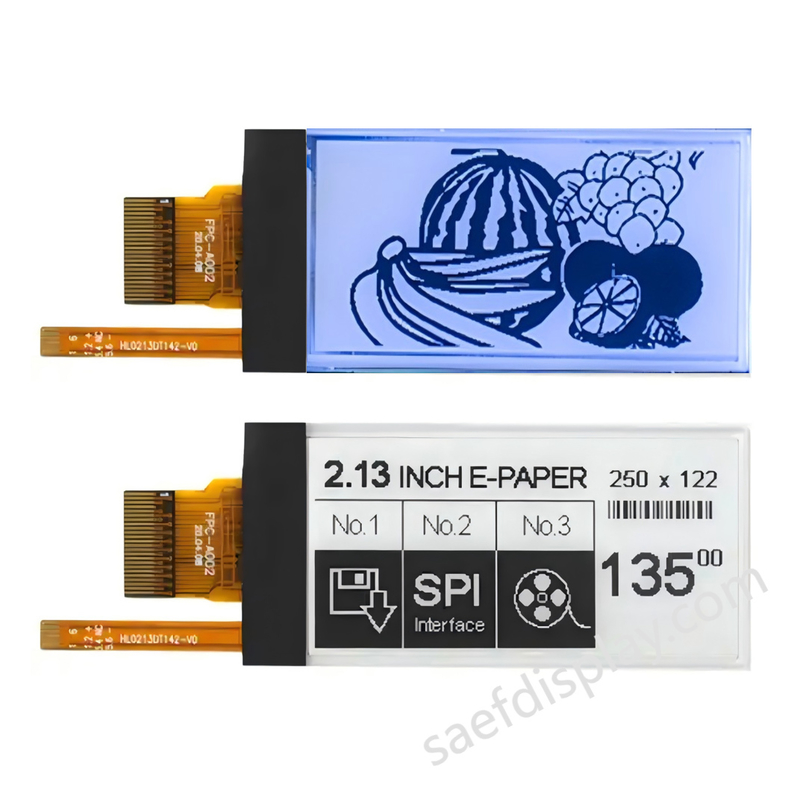

产品图像
