2 英寸 QVGA TFT LCD 显示屏，带 ILI9342C 驱动器
2 英寸横向 QVGA TFT LCD 描述
SF-TC200C-8563A1-N 是一款 2 英寸 TN 型 TFT LCD 显示屏，QVGA 分辨率为 320×240 像素。此 TFT LCD 模块配备先进的 ILI9342CIC 驱动器。支持 SPI 接口，模拟电源电压 (Vcc) 设置为 3.2V（典型值）。
SF-TC200C-8563A1-N LCD 模块采用防眩光表面面板，12 点钟视角和 6 点钟灰度反转确保最佳可视性。可在 -20°C 至 70°C 的温度范围内无缝运行，在各种环境中具有弹性和适应性。
产品特点
| Product: | 2 Inch TFT QVGA |
| Resolution: | 320×240 |
| Touch Screen: | Without Touch Screen (Optional) |
| Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12 O’clock |
| Driver IC: | ILI9342C Or Compatible |
| Interface: | SPI Interface |
| Connection: | Soldering |
| Pin Number: | 15 Pins |
| Surface Luminance: | 250 Cd/m2(nits) |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
2 英寸横向 QVGA TFT LCD 产品图纸
接口管脚定义
| NO. | PIN NAME | I/O | Description |
| 1 | LEDK | O | LED Cathode |
| 2 | LEDA | O | LED Anode |
| 3 | GND | I | Ground |
| 4 | VDD | I | Power Supply 2.8V Voltage |
| 5 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 6 | GND | I | Ground |
| 7 | CS | I | Input pin for chip selection signal |
| 8 | RESET | I | LCM Reset input signal |
| 9 | TE | I | Tearing effect output pin to synchronies MCU to frame writing, activated by S/W command. |
| 10 | SCK | I | This pin is used serial interface clock |
| 11 | SDA | I | Display Data input signal |
| 12 | RS | I | 4-line system (D/CX) |
| 13-15 | GND | I | Ground |
直流特性 (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
背光电光特性
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | – | 3.2 | – | V | If= 40 mA |
| Supply Current | If | – | 40 | – | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 128 | – | mW | – |
| Luminous Intensity for LCM | – | – | 250 | – | Cd/m2 | If= 40 mA |
| Uniformity for LCM | – | 80 | – | – | ％ | If= 40 mA |

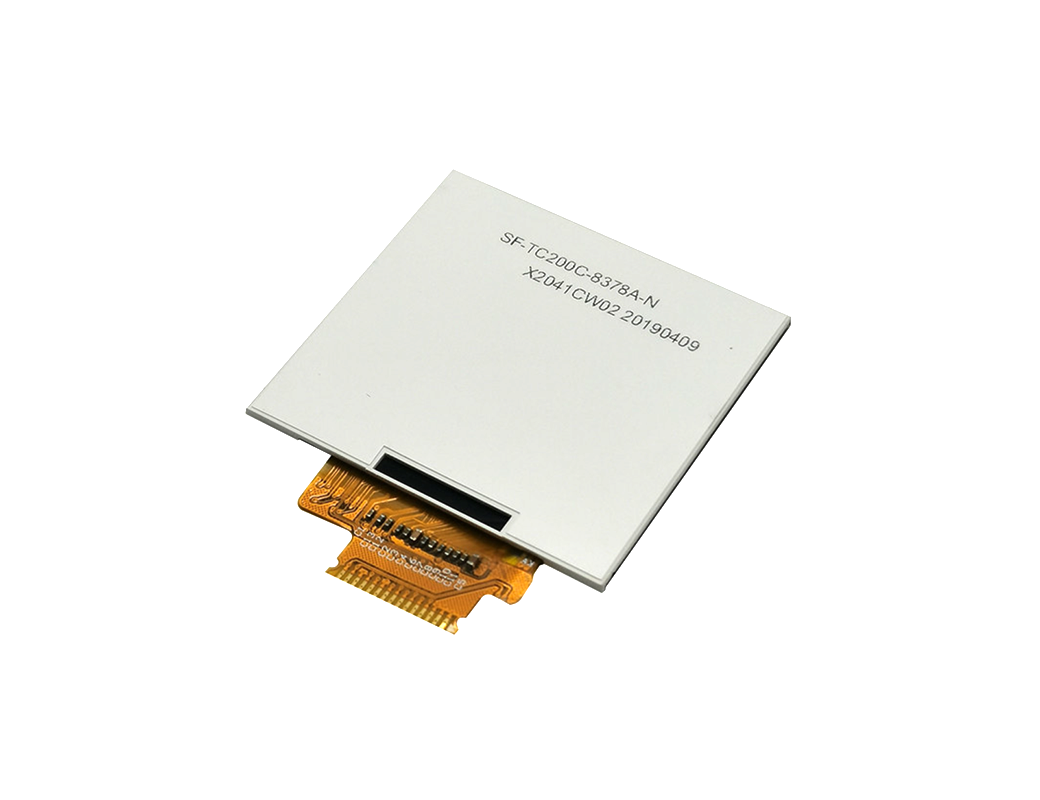

2 英寸横向 QVGA TFT LCD 产品图片
