| Product: | 2.4 Inch TFT LCD Display | Touch Screen: | Resistive Touch Panel |
| Resolution: | 240*320 | Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12:00 | Interface: | Mcu 8/16/18bit RGB, 16/18bit 3/4 LINE |
| Pin Number: | 48 Pins | Connection: | Soldering |
| Surface Luminance: | 350 Cd/m2 | Driver IC: | ILI9341V |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | 2.4 Inch TFT LCD Display, MCU RGB Interface TFT LCD Display, ILI9341 IC TFT LCD Display | ||
电阻式触摸屏 TFT LCD 2.4 英寸 MCU&RGB 接口产品介绍
SF-TC240H-8944A-T 是一款 2.4 英寸 TFT-LCD 显示屏，分辨率为 240x320 像素，亮度为 350 cd/m2。该模块使用 ILI9341 控制器 IC，支持 MCU 8/16/18bit RGB 和 RGB 16/18bit 3/4 线接口。显示屏的模块尺寸为 42.72（宽）x 60.26（高）x 3.5（厚）mm，有效区域为 36.73（宽）x 48.96（高）mm。其模拟供电电压范围为 2.6V 至 3.3V；典型值为 2.8V。
该显示模块采用 TN 型屏幕 12:00 观看方向。 SF-TC240H-8944A-T 模块可在 -20°C 至 +70°C 的温度下运行；其存储温度范围为 -30°C 至 +80°C。
特性
| Product: | 2.4 Inch TFT LCD Display |
| Resolution: | 240*320 |
| Driver IC: | ILI9341V |
| Viewing Direction: | 12:00 |
| Pin Number: | 48 Pins |
| Surface Luminance: | 350 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Touch Screen: | Resistive Touch Panel |
| Cover Glass Dimension: | Customizable |
| Interface: | Mcu 8/16/18bit RGB 16/18bit 3/4 LINE SPI |
| Connection: | Soldering |
| Compliance: | REACH & RoHS Compliant |

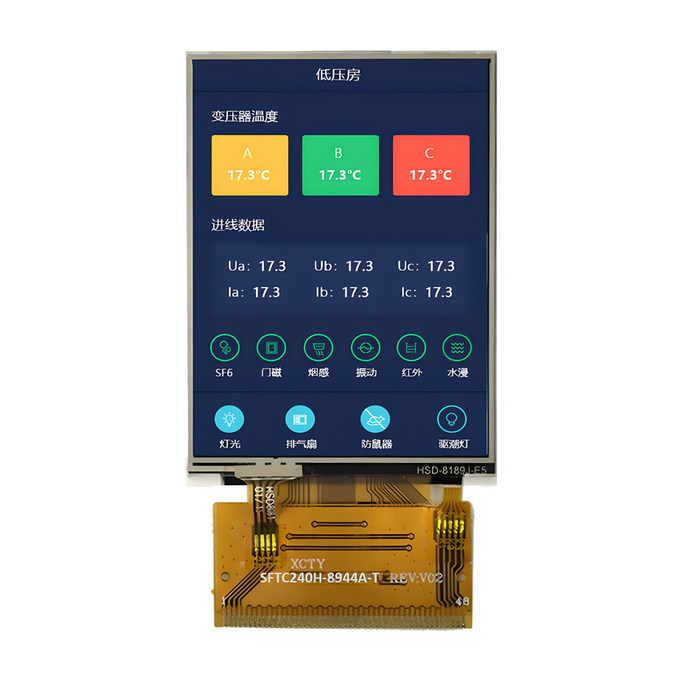

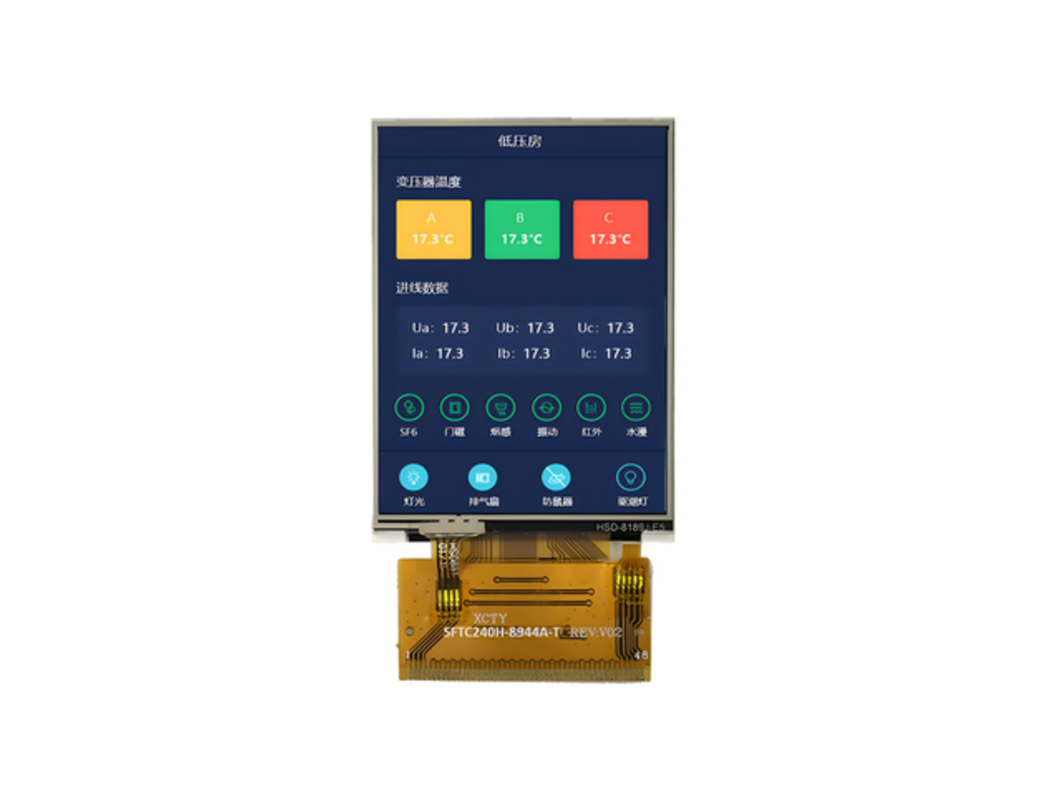

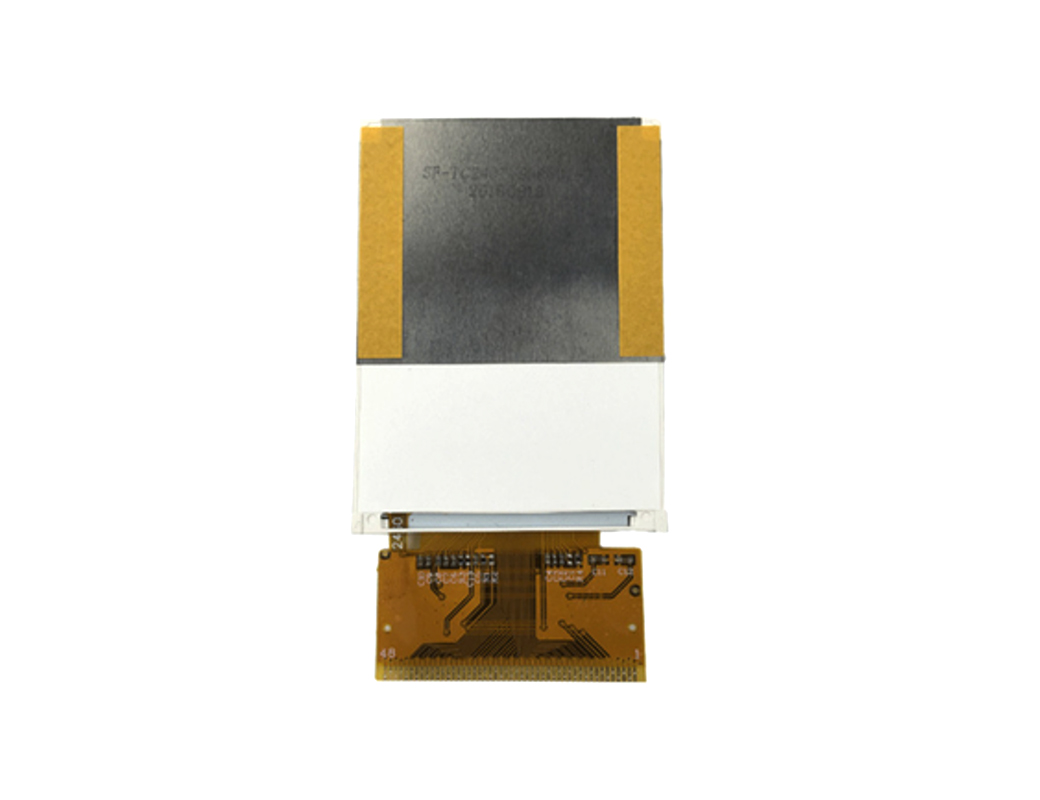

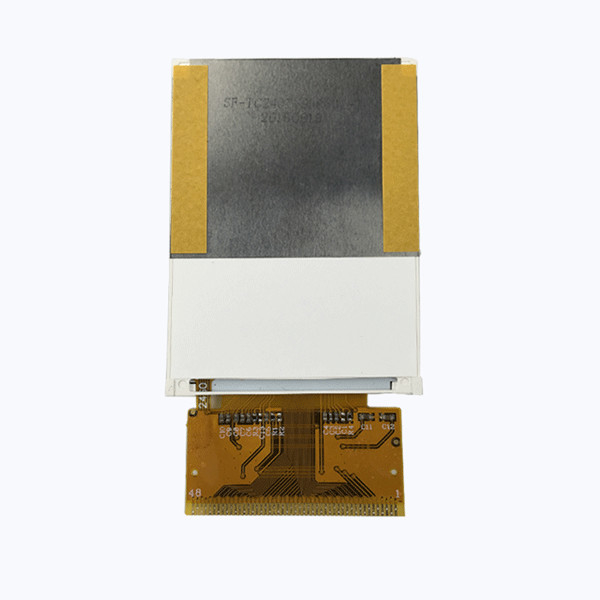

电阻式触摸屏 TFT LCD 2.4 英寸 MCU&RGB 接口产品图
引脚说明
| NO. | PIN NAME | I/O | Description |
| 1 | YU | I | Touch Panel Pin |
| 2 | XL | I | Touch Panel Pin |
| 3 | YD | I | Touch Panel Pin |
| 4 | XR | I | Touch Panel Pin |
| 5 | GND | I | Ground |
| 6 | VCI | I | Power Supply 2.8V Voltage |
| 7 | VDD3 | I | Power Supply 2.8V/1.8V Voltage |
| 8 | VDD3_P(NC) | - | Set Open |
| 9 | BC_CTRL(NC) | - | Set Open |
| 10 | BC(NC) | - | Set Open |
| 11 | TE | O | Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low. |
| 12-29 | DB17-DB0 | I/O | Display Data I/O |
| 30 | SDA | I/O | Serial input signal |
| 31 | DOTLCK | I | Dot Clock Signal for RGB Interface Operation |
| 32 | ENABLE | I | Data Enable Signal for RGB Interface Operation |
| 33 | HSYNC | I | Line Horizontal Synchronizing Signal |
| 34 | VSYNC | I | Frame Vertical Synchronizing Signal |
| 35 | RDX | I | Read strobe signal input pin |
| 36 | WRX | I | Write strobe signal input pin |
| 37 | DCX | I | Register select signal |
| 38 | CSX | I | Input pin for chip selection signal |
| 39 | RESET | I | LCM Reset input signal |
| 40 | IM0 | I | Please refer to the fourth page, Select the MCU interface mode |
| 41 | IM1 | ||
| 42 | IM2 | ||
| 43 | IM3 | ||
| 44 | LED_A | I | LED Anode |
| 45 | LED_K1 | I | LED Cathode |
| 46 | LED_K2 | I | LED Cathode |
| 47 | LED_K3 | I | LED Cathode |
| 48 | LED_K4 | I | LED Cathode |
绝对最大额定值
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
直流特性 (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | - |
| Supply current | IDD | - | - | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | - | VDD | V | - |
| VIL | 0 | - | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | - | 1.0 | mA | VIN=VDD or VSS |
背光电光特性
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition | Note |
| Supply Voltage | Vf | 3.0 | 3.2 | 3.4 | V | If=80mA | - |
| Supply Current | If | - | 80 | - | mA | - | - |
| Reverse Voltage | Vr | - | - | 5 | V | - | |
| Power dissipation | Pd | - | 288 | - | mW | - | |
| Luminous Intensity for LCM | - | - | 350 | - | Cd/m2 | If=80mA | - |
| Uniformity for LCM | - | 80 | - | - | ％ | If=80 mA | - |
| Backlight Color | White | ||||||

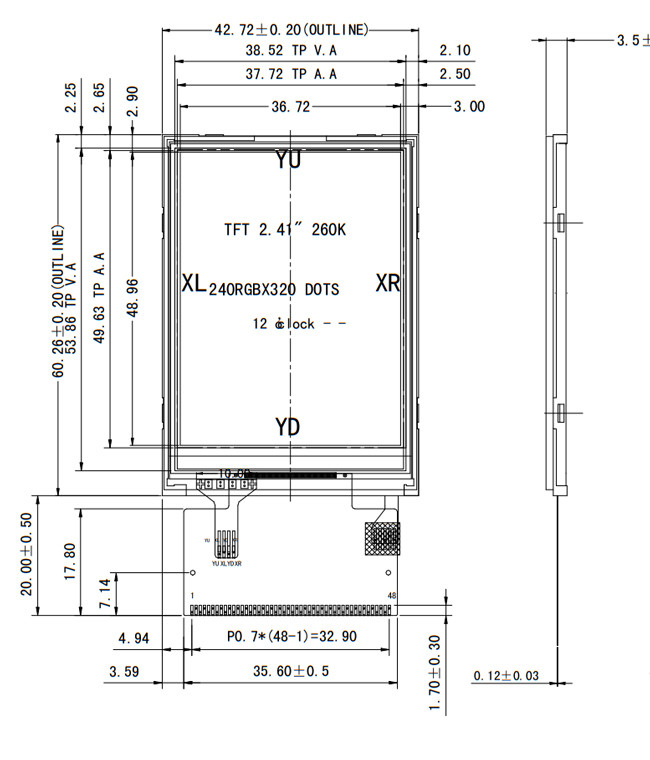

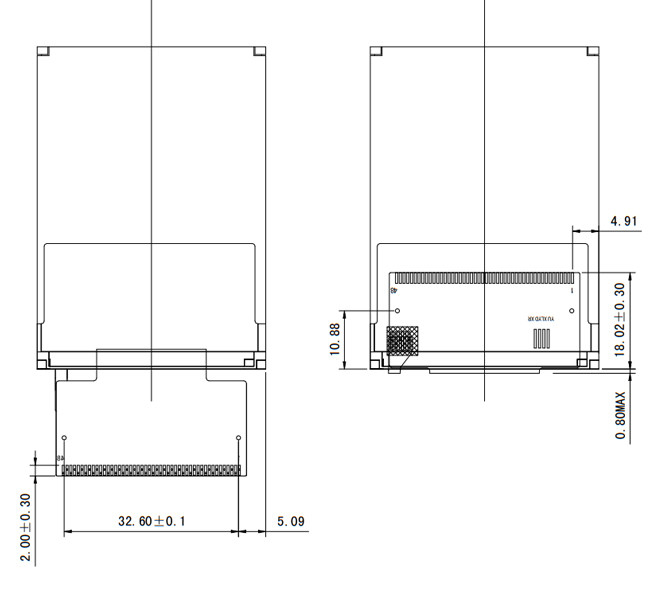

电阻式触摸屏 TFT LCD 2.4 英寸 MCU&RGB 接口产品图

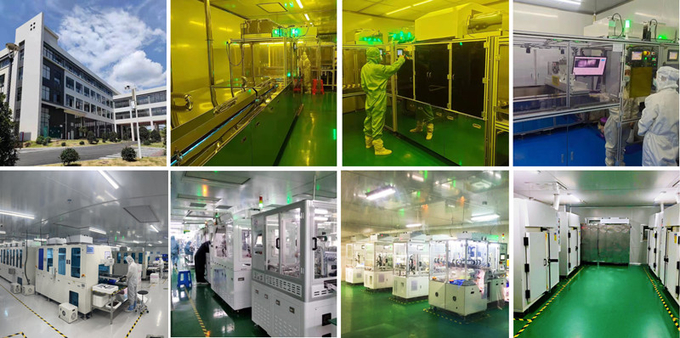

工厂设施和证书
