1.44 英寸 TFT LCD 显示屏制造商中国 128x128 点 MPU 8 位接口

产地：深圳 / 中国

品牌：SAEF

型号：SF-TC144H-8163A-T

认证：ISO9001 / ISO14000

资料下载视频播放

产品详情

Product:	1.44 Inch TFT Display Screen	Touch Screen:	Resistive Touch Panel (optional)
Resolution:	128x128	Cover Glass Dimension:	Customizable
Viewing Direction:	12:00	Interface:	MPU 8 Bits
Pin Number:	24 Pins	Connection:	Plugging
Surface Luminance:	200 Cd/m2 (nits)	LED Lifetime:	40,000 Hours
Driver IC:	ST7735	Compliance:	REACH & RoHS Compliant
Highlight:	1.44 Inch TFT LCD Display, 128x128 Dots TFT LCD Display, 8bit TFT LCD Display

电阻式触摸屏TFT LCD 1.44英寸MPU接口产品介绍

产品快速回顾

· 型号 SF-TC144H-8163A-T

· 分辨率：128x128

· 接口：MPU 8位

· 观看方向：12H

· 亮度：200cd/m2

· 连接方式：ZIF FPC

· 触摸屏：电阻式触摸屏

描述

SF-TC144H-8163A-T是一款1.44英寸方形模式电阻式触摸屏（RTP）TFT LCD模块，支持MPU 8bits接口显示128x128像素分辨率。该TFT LCD模块内置ST7735驱动IC（与ILI9163C IC兼容）。其模拟供电电压（Vcc）范围为2.6V至3.3V，典型值为2.8V。该模块具有防眩光面板，视角12点钟方向，灰阶反转6点钟方向。

SF-TC144H-8163A-T模块是一款方形TFT-LCD，亮度为150尼特（典型值）。该模块也可用于不带触摸屏的选项，其零件号为： SF-TC144H-8163A-N。工作温度为-20°C至+70°C；其储存温度范围为-30°C 至+80°C。

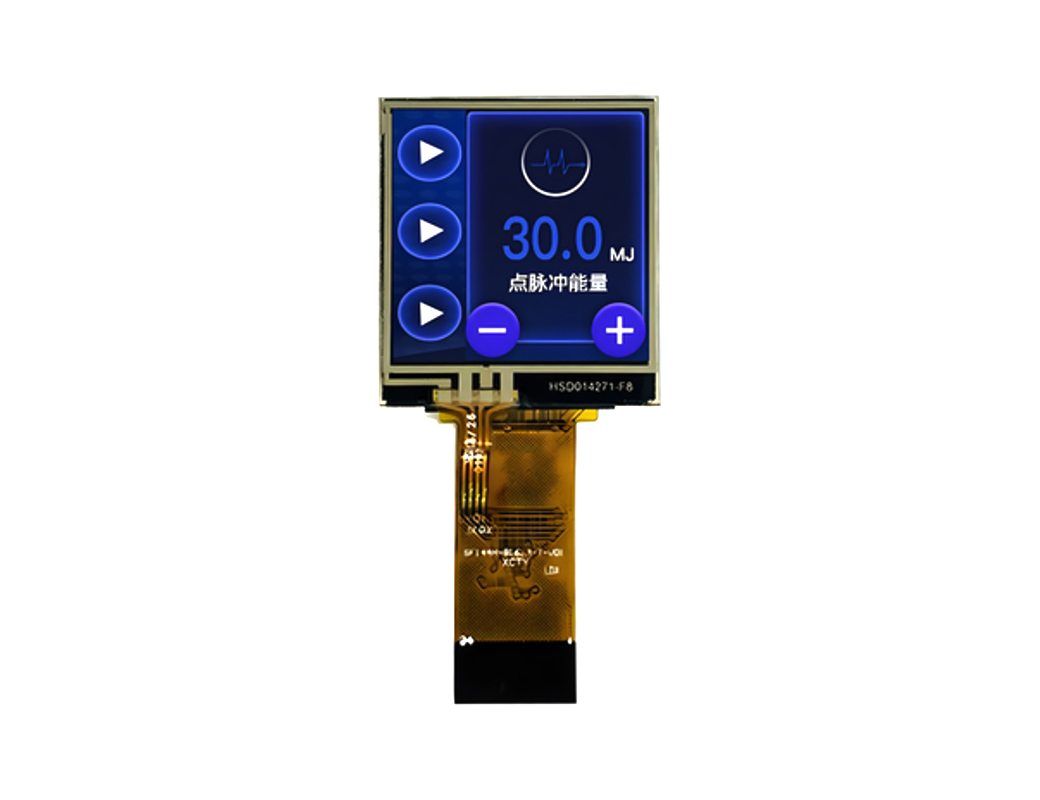

电阻式触摸屏TFT LCD 1.44英寸MPU接口产品图

pl169735800-remark

引脚说明

NO.	PIN NAME	I/O	Description
1	YD	I	Touch Panel Down Input Signal
2	XL	I	Touch Panel left Input Signal
3	YU	I	Touch Panel UP Input Signal
4	XR	I	Touch Panel right Input Signal
5	IOVCC	P	Power Supply1.8V Voltage
6	GND	P	Power ground
7	VDD	P	Power Supply2.8V Voltage
8	DB7	I/O	Display Data I/O
9	DB6	I/O	Display Data I/O
10	DB5	I/O	Display Data I/O
11	DB4	I/O	Display Data I/O
12	DB3	I/O	Display Data I/O
13	DB2	I/O	Display Data I/O
14	DB1	I/O	Display Data I/O
15	DB0	I/O	Display Data I/O
16	/RD	P	Read strobe signal input pin
17	/WR	I	Write strobe signal input pin
18	RS	I	Register select signal
19	/RESET	I	LCM Reset input signal
20	/CS	I	Input pin for chip selection signal
21	BL-K	I	LED Cathode
22	BL-K	I	LED Cathode
23	BL-A	I	LED Anode
24	NC	-	-

最大绝对限制

Item	Symbol	Value	Unit
Power supply voltage for logic	VDD	1.6~3.3	V
Input voltage	Vin	VDD+0.3	V
Operating temperature	Topr	-10 to 60	°C
Storage temperature	Tstg	-20 to 60	°C

直流特性 (VDD=2.8V,Ta=25°C)

Item	Symbol	Min	Type	Max	Unit	Test condition
Operating voltage	VDD	2.6	2.8	3.3	V	-
Supply current	IDD	-	-	5	mA	VDD=2.8V,Ta=25°C
Input voltage	VIH	0.8VDD	-	VDD	V	-
Input voltage	VIL	0	-	0.2VDD	V	-
Input leakage current	IIL	-1.0	-	1.0	mA	VIN=VDD or VSS

背光电光特性

Item	Symbol	MIN	TYP	MAX	UNIT	Test Condition	Note
Supply Voltage	Vf	3.0	3.2	3.4	V	If=40AMA	-
Supply Current	If	-	40	-	mA	-	-
Reverse Voltage	Vr	-	-	5	V	-
Power dissipation	Pd	-	96	-	mW	-
Luminous Intensity for LCM	-	-	200	-	Cd/m2	If=40MA	-
Uniformity for LCM	-	80	-	-	％	If=40MA	-
Backlight Color	White

触摸屏面板规格

Item	Symbol	Min.	Type.	Max.	unit	Remark
TransParency	-	-	82	-	%	JIS K-7105
Haze	-	-	1	-	%	JIS K-7105
Hardness Of Surface	-	-	3	-	H	150gf 45°
FPC Peeling Strength	-	5		-	N	Upward 90°
FPC Bending	-	-	3	-	cycle	R=1.0, 90°
Input Force	-	-		50	gf	-
Rated Voltage	V touch			7	V	DC
X-axis Resistance	Rx	150		500		FPC PIN
X-axis Resistance	Ry	200		800
Linearity	-	-	±1.5	±2.0	%	-
Chattering	-	-	-	20	ms	-
Insulation Resistance	Ri	10	-	-	MΩ	-
Notes Life	-	1,00,000	-	-	Times	-
Input Life	-	1,000,000	-	-	Times	-

光学特性

No.	ITEM		Symbol	Conditions	Specification			Unit	Note
No.	ITEM		Symbol	Conditions	Min	Typ	Max	Unit	Note
1	Response Time		Tr+Tf	25℃	-	25	-	Ms	(1)(2)
2	Transmittance (With PL)		T(%)	-	-	7.1	-	-	-
3	Contrast Rate		Cr	θ=0,Normal viewing angle	300	400	-	-	(1)(3)
4	Viewing Angle	Hor.	θR	CR>10		60	-	Deg	-
		Hor.	θL			60	-
		Ver.	Θ+		-	60	-
		Ver.	Θ-		-	45	-
