3.5 英寸 PCAP TFT 显示屏，带 MCU 和 SPI 接口，12 点钟方向 LCD 屏幕
SFTO350PY-7118A-CT PCAP TFT 显示屏拥有 3.5 英寸 TN 型屏幕，可视方向为 12 点钟方向，提供 320×480 像素的 HVGA 分辨率。此 PCAP TFT LCD 显示模块具有 ILI9488 控制器或等效 IC，支持 MCU 8/16BIT 和 SPI 3/4 线接口。这款高亮度 PCAP TFT LCD 屏幕的典型工作电压为 2.8V，可适应 2.4V 至 3.3V 的 Vdd。
SFTO350PY-7118A-CT 采用电容式触摸屏设计，提供单点触控或多点触控功能选项。此 TFT 模块配置为纵向模式，亮度为 500cd/m2。如需横向模式使用或增强亮度，请随时联系我们获取更多技术帮助。
多功能 TFT 触摸 LCD SFTO350PY-7118A-CT 可广泛应用于各种行业，包括仪表和仪器、GPS 设备、POS 终端、现金阅读器、扫描仪、家庭自动化系统、会议电话、分析仪、家用电器和安全系统等。
产品特点
| Product: | 3.5 Inch TFT LCD Display |
| Resolution: | 320×480 HVGA |
| Interface: | MCU 8/16BIT, SPI 3/4wire |
| Pin Number: | 40pins |
| Viewing Direction: | 12 O’clock |
| Surface Luminance: | 500 Cd/m2(nits) |
| Outline Dim.: | 54.48(H)x84.71(V)x3.40(T) (mm) |
| Active Area: | 48.96(H)x73.44(V) (mm) |
| Touch Screen: | With Capacitive Touch Panel |
| CTP Driver: | FT6336U |
| Driver IC: | ILI9488 |
| Connection: | Plugging |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
高亮度户外 LCD 3.5 英寸 PCAP TFT 显示屏图纸
接口引脚定义
| Pin No. | Symbol | Function |
| 1 | XL | Touch the left line |
| 2 | YU | Touch the upper circuit |
| 3 | XR | Touch the right end line |
| 4 | YD | Touch the lower line |
| 5 | GND | Ground |
| 6 | IOVCC | Power Supply 1.8V |
| 7 | VCC | Power Supply 2.8V |
| 8 | FMARK | Frame synchronization signal |
| 9 | CS | Chip select input pin (active low) |
| 10 | RS | Display data/command selection pin in parallel |
| 11 | WR/SPI_SCL | Write enable in 8080 MCU parallel interface / SCL pin as Serial Clock |
| 12 | RD | Read enable in 8080 MCU parallel interface. |
| 13 | SPI_SDA | serial data input/output bi-direction pin |
| 14 | SPI_SDO | Serial data output |
| 15 | RESET | External reset input. |
| 16 | GND | Ground |
| 17-32 | DB0-DB15 | MCU parallel interface data bus. |
| 33 | LEDA | LED back light(Anode) |
| 34-36 | LEDK | LED back light(Cathode) |
| 37 | GND | Ground |
| 38 | IM0 | Select the interface mode |
| 39 | IM1 | Select the interface mode |
| 40 | IM2 | Select the interface mode |
电容式触摸屏界面
| 1 | CTP_RST | Touch screen reset |
| 2 | CTP_INT | Touch screen interrupt signal |
| 3 | CTP_SDA | Touch screen data signal |
| 4 | CTP_SCL | Touch screen clock signal |
| 5 | GND | Ground |
| 6 | VDD | Power Supply |
光学规格
| Item | Symbol | Condition | Min | Type | Max | Unit | Note | |
| White luminance (Center) | Lv | Θ=0 Normal Viewing Angle IBL= 120mA | — | 300 | — | cd/m2 | (4)(5)(7) | |
| Response time | Tr+Tf | — | 20 | 40 | ms | Note 5 | ||
| Contrast ratio | CR | — | 500 | — | — | Note 2,6 | ||
| Color Chromaticity (CIE1931) | white | Wx | 0.292 | 0.307 | 0.322 | Note 3 | ||
| Wy | 0.312 | 0.327 | 0.342 | |||||
| Viewing Angle | Hor | ΘL | CR≥10 | — | 70 | — | Note 2,6,7 | |
| ΘR | — | 70 | — | |||||
| Ver | ΘU | — | 60 | — | ||||
| ΘD | — | 60 | — | |||||
| Brightness uniformity | Avg | Θ=0 | 80 | 90 | — | % | Note 5 | |
| Color Gamut | NTSC | Θ=0 | 57 | 60 | — | % | Note 3 | |
| Optima View Direction | 12 0’CLOCK | Note 1 | ||||||

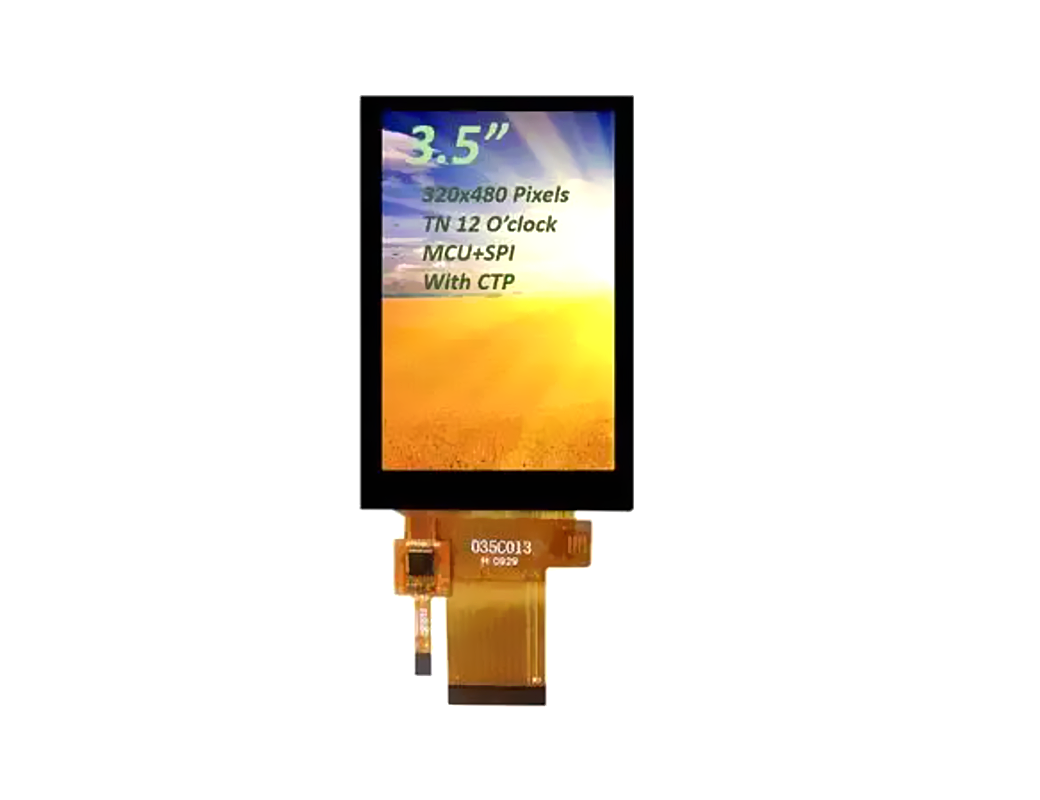

高亮度户外 LCD 3.5 英寸 PCAP TFT 显示屏图像
