| Model Number: | SFTO2150RX-7320AN | Screen Size: | 21.5-inch Diagonal (546.1 Mm) |
| Resolution: | 1920×1080 Pixels (RGB Stripe) | Brightness: | 500 Cd/m² |
| Operating Temp.: | -30°C To +80°C | Contrast Ratio: | 1000:1 (Typ.) |
| Interface: | Dual-Channel LVDS (2 Pixel/Clock) | Power Consumption: | 20.96W |
| Response Time: | 14ms GTG (Gray-to-Gray) | Viewing Angle: | 89° All Directions (CR>10) |
| Backlight: | 50,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | 500 nits Industrial TFT LCD, FHD Industrial TFT LCD, 21.5” Industrial TFT LCD | ||
极端环境下的关键任务工业显示器
SFTO2150RX-7320AN为工业自动化、医疗成像和交通系统树立了可靠性的标杆。其具备500尼特的高亮度和全高清分辨率，即使在阳光直射或低温条件下，也能呈现清晰的视觉效果。
关键工程优势
✅ 军用级耐用性
• 可在北极至沙漠的温度范围内（-30°C~80°C）运行
• 可承受50G的机械冲击（IEC 60068-2-27）
• 在50°C/80%RH的条件下，进行了240小时的湿度运行测试
✅ 工业互联
• 双通道LVDS接口（JAE FI-X30H连接器）
• 仅DE时序模式@74.25MHz
• 6位色深 + Hi-FRC（1670万色）
✅ 零停机设计
• 50,000小时LED背光（7020颗芯片，10S6P×2）
• <300mV输入纹波容差
• ±8kV接触式静电放电保护（IEC 61000-4-2）
工业应用
• 医疗技术：手术监视器、CT控制台
• 航空：驾驶舱显示器，飞行监控系统
• 船舶建造：导航桥梁、机舱面板
• 工厂自动化：监控与数据采集（SCADA）系统，机器人控制系统
保养与保修
• 使用寿命：50,000小时LED运行（@25°C）
• 防止屏幕烧屏：30分钟无活动后进入睡眠模式
• 保修期：1年功能替换
• 防静电保护：采用导电箔进行IPM包装
请求定制
如需了解IP65密封版本、电容式触摸选项或定制边框设计，请联系sales2@saef.com.cn。
规格
| Items | Specification | Unit |
| Active Screen Size | 21.5 | inch |
| Number of Pixels | 1920 X 1080 | Pixel |
| Display Area | 476.64 (H) x 268.11(V) | mm |
| Bezel Opening | 479.84(H) x 271.3(V) | mm |
| Outline Dimension | 495.6(H) x 292.4(V) x 10.35(D) | mm |
| Luminance, White | 500 (Center 1 point,Typ.) | cd/m 2 |
| Power Supply Input Voltage | 12 (Typ) | V |
| Power Supply Voltage | 5.0 (Typ) | V |
| Power Consumption | Total = 20.96 (Typ.) | W |
| Contrast Ratio | 1000:1 | -- |
| Response time | 14 (Typ.)(G to G) | ms |
| Color temperature | TBD | K |
| Weight | TBD(Typ) | Kg |
| Operating Temperature | -30 ~ 80 | ℃ |
| Storage Temperature | -30 ~ 85 | ℃ |
光学特征
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | |
| Viewing Angle range | Horizontal | Θ3 | CR > 10 | 85 | 89 | - | Deg. |
| Θ9 | 85 | 89 | - | Deg. | |||
| Vertical | Θ12 | 85 | 89 | - | Deg. | ||
| Θ6 | 85 | 89 | - | Deg. | |||
| Luminance Contrast ratio | CR | Θ = 0.(Center) Normal Viewing Angle | 450 | 500 | |||
| Cell Transmittance | Tr | - | 3.55 | - | % | ||
| White luminance uniformity | ΔY | 75 | 80 | - | % | ||
| Reproduction of color | White | Wx | 0.283 | 0.313 | 0.343 | - | |
| Wy | 0.299 | 0.329 | 0.359 | - | |||
| Red | Rx | 0.607 | 0.637 | 0.667 | - | ||
| Ry | 0.320 | 0.350 | 0.380 | - | |||
| Green | Gx | 0.266 | 0.296 | 0.326 | - | ||
| Gy | 0.590 | 0.620 | 0.650 | - | |||
| Blue | Bx | 0.120 | 0.150 | 0.180 | - | ||
| By | 0.02 | 0.05 | 0.08 | - | |||
| Response Time | GTG | Tg | 14 | 25 | ms | ||
| Cross Talk | CT | - | - | 2.0 | % | ||
背光特征
| Parameter | Symbol | Value | Unit | ||
| Min. | Typ. | Max. | |||
| LED Light Bar Input Voltage Per Input Pin | VPIN | 46.5 | 48.5 | 51.5 | V |
| LED Light Bar Input total current | IPIN | --- | 360 | mA | |
| LED Life Time | LLED | 40000 | 50000 | --- | Hrs |
| Power Consumption | PBL | 17.46 | W | ||

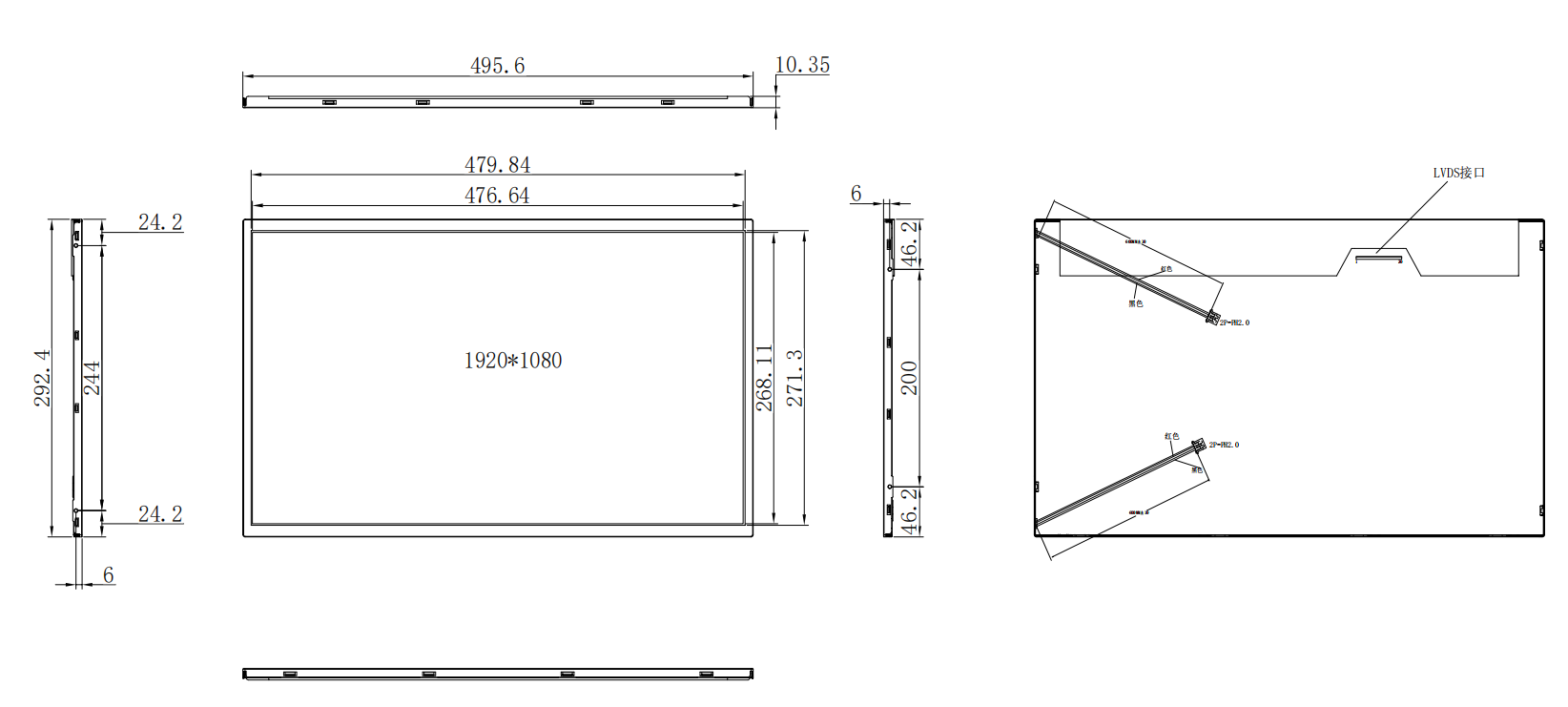

外部尺寸
接口引脚定义
| Pin No | Symbol | Function |
| 1 | RXO0- | Negative Transmission data of Pixel 0 (ODD) |
| 2 | RXO0+ | Positive Transmission data of Pixel 0 (ODD) |
| 3 | RXO1- | Negative Transmission data of Pixel 1 (ODD) |
| 4 | RXO1+ | Positive Transmission data of Pixel 1 (ODD) |
| 5 | RXO2- | Negative Transmission data of Pixel 2 (ODD) |
| 6 | RXO2+ | Positive Transmission data of Pixel 2 (ODD) |
| 7 | GND | Power Ground |
| 8 | RXOC- | Negative Transmission Clock (ODD) |
| 9 | RXOC+ | Positive Transmission Clock (ODD) |
| 10 | RXO3- | Negative Transmission data of Pixel 3 (ODD) |
| 11 | RXO3+ | Positive Transmission data of Pixel 3 (ODD) |
| 12 | RXE0- | Negative Transmission data of Pixel 0 (EVEN) |
| 13 | RXE0+ | Positive Transmission data of Pixel 0 (EVEN) |
| 14 | GND | Power Ground |
| 15 | RXE1- | Negative Transmission data of Pixel 1 (EVEN) |
| 16 | RXE1+ | Positive Transmission data of Pixel 1 (EVEN) |
| 17 | GND | Power Ground |
| 18 | RXE2- | Negative Transmission data of Pixel 2 (EVEN) |
| 19 | RXE2+ | Positive Transmission data of Pixel 2 (EVEN) |
| 20 | RXEC- | Negative Transmission Clock (EVEN) |
| 21 | RXEC+ | Positive Transmission Clock (EVEN) |
| 22 | RXE3- | Negative Transmission data of Pixel 3 (EVEN) |
| 23 | RXE3+ | Positive Transmission data of Pixel 3 (EVEN) |
| 24 | GND | Power Ground |
| 25 | NC | Not connection, this pin should be open |
| 26 | NC | Not connection, this pin should be open |
| 27 | NC | Not connection |
| 28 | VDD | Power Supply: +5V |
| 29 | VDD | |
| 30 | VDD |

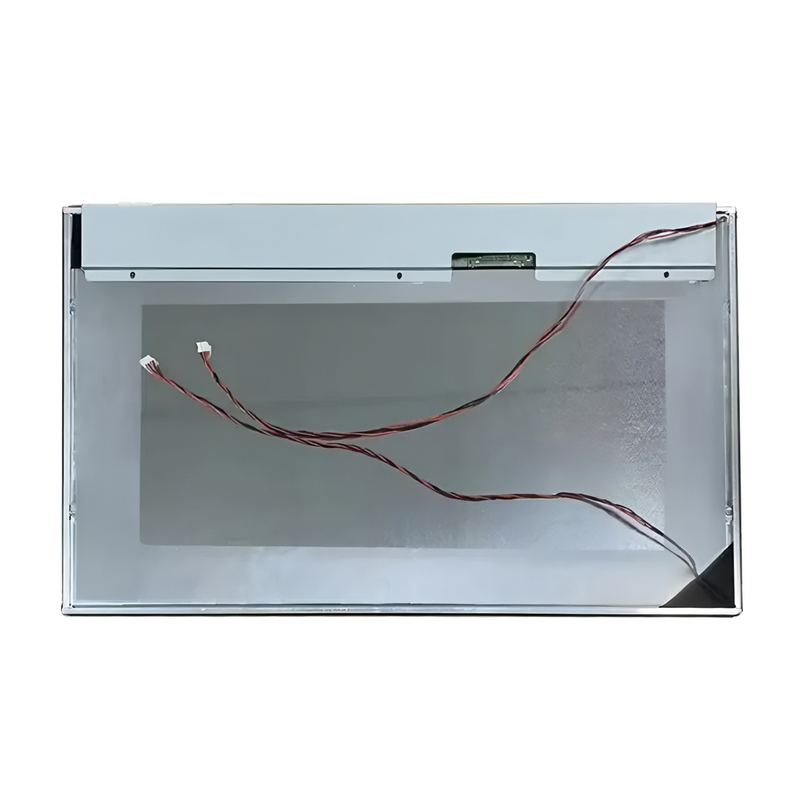

产品图像
