| Screen Size: | 13.3-inch Diagonal | Resolution: | 1920×1080 Pixels (RGB Stripe) |
| Storage Temp.: | -20°C To +70°C | Operating Temp.: | -30°C To +80°C |
| Brightness: | 1000 Cd/m² | Contrast Ratio: | 1000:1 (Typ.) |
| Interface: | 2-lane EDP 1.2 (2.7Gbps) | Power Supply: | 3.3V DC (Logic), 12V/24V (Backlight) |
| Surface Treatment: | AG/AR/AF Coatings (Selectable) | Touch Technology: | Capacitive Touch Panel |
| Cover Glass: | Gorilla Glass/Tempered Glass/PMMA | Touch Points: | 10-Point Multi-Touch |
| Touch Interface: | I²C/USB/RS232 (Configurable) | IC Options: | EETI, ILITEK, Cypress, Goodix |
| Customization: | Silk Printing, Logo, Cut-outs | Compliance: | REACH & RoHS Compliant |
| Highlight: | 1080p Industrial LCD Display Module, Full HD TFT LCD Display Module, eDP Interface TFT LCD Display | ||

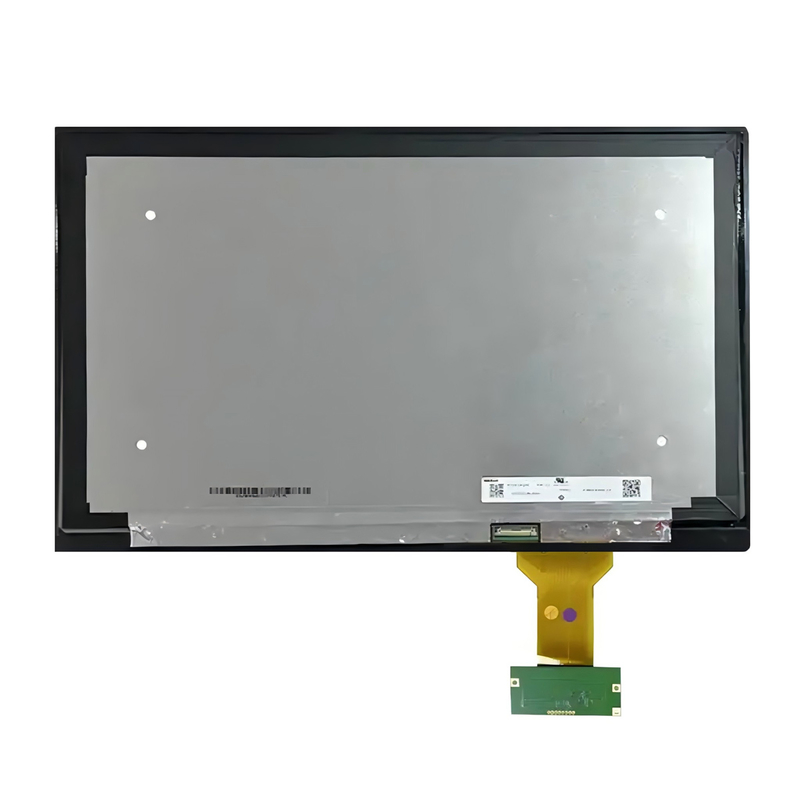

适用于严苛环境的超亮工业级TFT显示屏
SFTO1330SM-7208A3CT2是一款高性能的13.3英寸全高清TFT液晶显示模块，专为需要卓越可见性、耐用性和触摸响应性的工业应用而设计。该显示屏具有高达1000尼特的亮度和72%的NTSC色域，即使在高环境光条件下也能呈现清晰明亮的视觉效果。集成电容式触摸技术，并采用防眩光涂层（6H硬度），确保在工厂、户外信息亭和医疗设备等恶劣环境中实现可靠的输入操作。
主要特点
• 全高清清晰度：1920×1080分辨率，1670万色，文字、图形和视频均清晰锐利。
• 高速eDP接口：双通道嵌入式DisplayPort（2.7Gbps）确保数据传输无缝衔接。
• 宽温工作：在-20°C至+70°C范围内性能可靠（存储温度：-30°C至+80°C）。
• 50,000小时LED背光：节能设计，延长使用寿命，减少维护需求。
• 工业级耐用性：防眩光表面、抗冲击结构，且符合RoHS标准。
• 易于集成：支持PWM调光、I²C/USB/UART触控接口以及直流电源输入（3.3V逻辑电平，12V/24V背光）。
技术卓越
• 光学性能：85°视角，800:1对比度，30毫秒响应时间。
• 触敏性：戴手套、在雾气/表面潮湿的情况下也能流畅操作，并支持多点触控。
• 稳健设计：超薄设计（厚度仅5.2毫米）、轻便，以及具备电磁干扰（EMI）屏蔽功能的连接器（I-PEX 20455-030E）。
• 认证可靠性：通过ISO 9001/14001认证，经过72小时湿度/热冲击测试。
理想应用
• 工业人机界面面板
• POS/零售终端
• 医疗诊断设备
• 视频会议系统
• 交通信息娱乐
• 智能自动售货机
为何选择此显示器？
由信创天源设计的SFTO1330SM-7208A3CT2，将尖端光学技术与工业级耐用性相结合。其eDP接口简化了与嵌入式系统的集成，而电容式触摸屏则增强了用户交互体验。经过严格测试和全球认证，该模块针对欧洲和北美最恶劣环境下的全天候运行进行了优化。
请求定制
如需了解IP65密封版本、电容式触控选项或定制边框设计，请联系sales2@saef.com.cn。

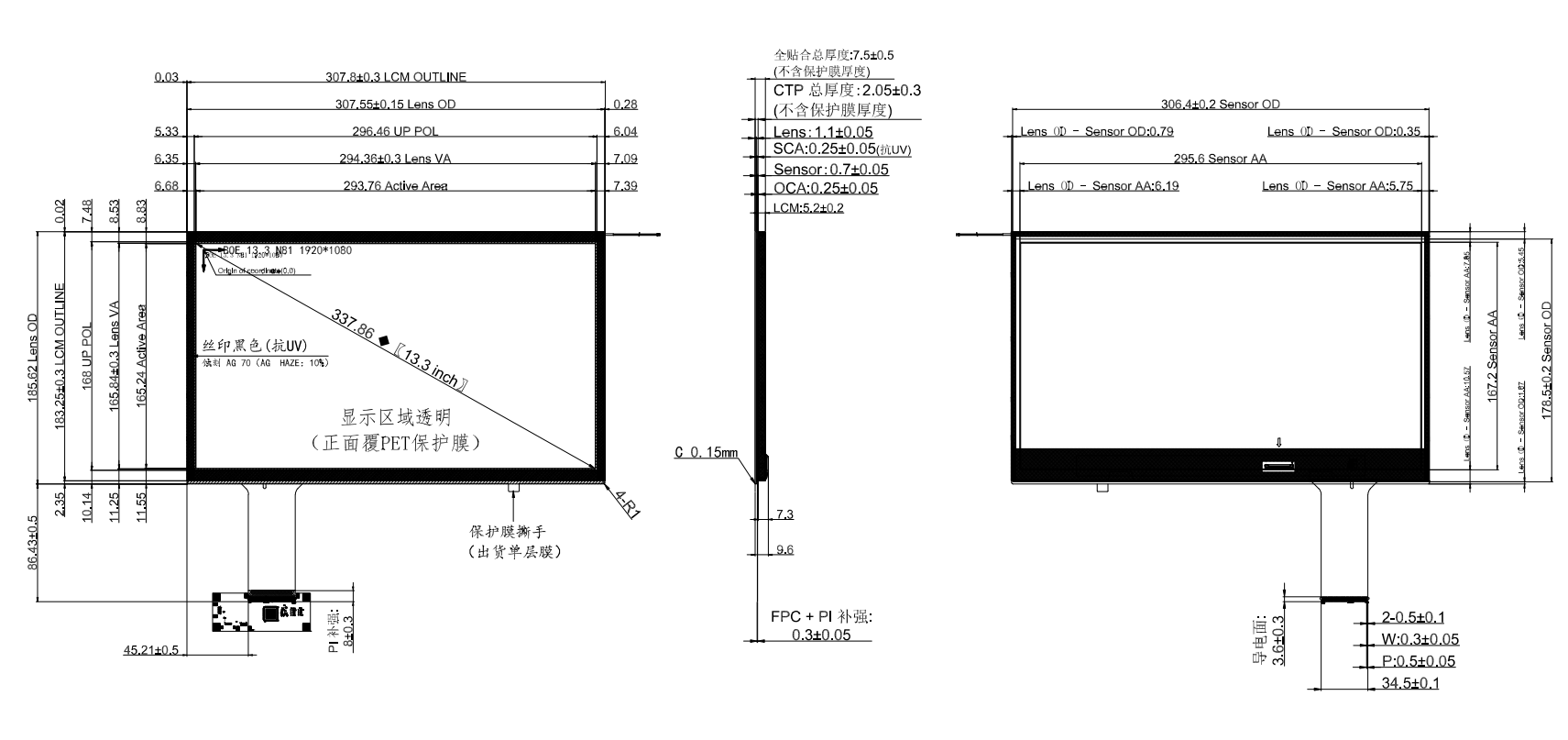

外部尺寸
接口引脚定义
| Pin No. | Symbol | I/O | Function |
| 1 | CABC_ EN / NC | - | Reserved for CD |
| 2 | H_GND | P | High Speed round |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed round |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed round |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed round |
| 12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 14 | NC | I | Reserved for LCD manufacturer’s use |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18 | LED-1 | P | Backlight ground |
| 19 | LED-2 | P | Backlight ground |
| 20 | LED-3 | P | Backlight ground |
| 21 | LED-4 | P | Backlight ground |
| 22 | BL_ ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM |
| 24 | SCL/NC | - | Reserved for LCD manufacturer’s use |
| 25 | SDA/NC | - | Reserved for LCD manufacturer’s use |
| 26 | BL_PWR | P | Backlight power |
| 27 | BL_PWR | P | Backlight power |
| 28 | BL_PWR | P | Backlight power |
| 29 | BL_PWR | P | Backlight power |
| 30 | NC | - | Reserved for LCD manufacturer’s use |
光学特征
| Paramete | Conditions | Min. | Typ. | Max. | Unit | |
| Viewing Angle (CR>10) | Horizontal | θL | - | 85 | - | degree |
| θR | - | 85 | - | |||
| Vertical | θT | - | 85 | - | ||
| θB | - | 85 | - | |||
| Contrast Ratio | Center | 600 | 800 | - | - | |
| Response Time | Tr+Td | - | 30 | 35 | ms | |
| CF Color Chromaticity(CIE1931) | Red x | Typ.-0.05 | TBD | Typ.+0.05 | - | |
| Red y | TBD | - | ||||
| Green x | TBD | - | ||||
| Green y | TBD | - | ||||
| Blue x | TBD | - | ||||
| Blue y | TBD | - | ||||
| White x | (0.323) | - | ||||
| White y | (0.379) | - | ||||
| NTSC ratio | % | (72) | - | |||
| Center Luminance of white | YLI | 800 | 1000 | cd/m2 | ||
背光特征
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Supply voltage | VBL | 5 | 12.0 | 37 | V |
| Power supply Current for Backlight | ILED | 6 | - | 25 | mA |
| Power supply for Back light | PLED | 0.18 | - | 5.55 | W |
| Modulated light signal voltage | VPWM H | 1.2 | - | 5.0 | V |
| VPWM L | 0 | - | 0.6 | V | |
| Brightness Control Duty Ratio | Duty | 1 | - | 100 | % |
| Brightness Control frequency | fPWM | 100 | - | 1,600 | KHz |
| LED-BL ON/OFF High voltage | VCNTH | 1.2 | 5.0 | V | |
| LED-BL ON/OFF low voltage | VCNTL | 0 | - | 0.6 | V |
| LED lifetime | - | 40,000 | 50,000 | - | h |
CTP规范
| Category | Parameter | Specification |
| General | Structure | Cover Glass + DITO Glass |
| Cover Lens Strengthening | Chemically Strengthened | |
| Cover Lens Surface Hardness | ≥6H (Pencil Hardness) | |
| Light Transmission Rate | ≥85% | |
| Operation Temperature | -20℃ ~ +70℃, ≤85% RH | |
| Storage Temperature | -30℃ ~ +80℃, ≤85% RH | |
| Electrical | Interface | IIC / USB / UART |
| Touch IC | IL12511 | |
| Power Supply Voltage (VDD) | 3.3V or 5V (Selectable) | |
| Host Resistance (SDA/SCL) | Configurable on Main-board | |
| Environmental | Operating Conditions | Functional in fog/surface water |
| Surface Properties | Surface Ink | Anti-UV |
| Surface Treatment | Anti-Glare (Haze: 10%) | |
| LCD-TP Lamination | OCA (Optically Clear Adhesive) | |
| Compliance | Material Standards | RoHS & Halogen-Free Compliant |
