| Product: | 5.7 Inch TFT LCD Display | Resolution: | 640x480 VGA |
| Brightness: | 500 Cd/m² (Typical) | Viewing Direction: | 80° (All Directions, CR≥10) |
| Contrast Ratio: | 1200:1 | Interface: | 6-bit RGB (40-pin) |
| Operating Temp.: | -30°C To +80°C | Customization: | Glass/Sensor/FPC Tailoring |
| Driver IC: | JD9168S | LED Lifetime: | 30,000 Hours |
| Touch: | Projected Capacitive (PCAP) | Compliance: | Rohs & Reach Compliant |
| Highlight: | PCAP Touch Industrial TFT LCD, JD9168S Industrial TFT LCD, 640x480 Industrial TFT LCD | ||
坚固耐用的5.7英寸TFT液晶显示屏，亮度高达500尼特，配备PCAP触摸屏 - 工业级宽温设计
Saef Technology的SFTO570DX-7263AN在极端环境中表现出色。这款5.7英寸的VGA TFT显示屏亮度高达500尼特，工作温度范围为-30°C至+80°C，具有80°全向视角，专为欧洲和北美的工业人机界面（HMI）、医疗设备和汽车仪表板而设计。
✅ 极端环境适用：可在北极严寒至沙漠酷热的极端环境下（-30°C~80°C）运行，具备120小时热冲击认证。
✅ 工业耐用性：3H硬化表面可耐刮擦，并具有抗随机振动性能（0.015G²/Hz，5-500Hz）。
✅ 优化功耗：仅1.5W背光功耗 + PWM调光控制（1-50kHz）。
✅ 高视觉清晰度：1200:1 对比度 + 60% NTSC 色域。
无缝触控集成
通过我们的投射电容式（PCAP）触摸定制，升级您的解决方案：
• 玻璃选项：大猩猩玻璃®/钢化玻璃/带AG/AR/AF涂层的PMMA。
• 传感器灵活性：玻璃/薄膜/薄膜+薄膜堆叠+定制柔性电路板（FPC）形状。
• 控制器兼容性：EETI、ILITEK、Cypress、Goodix（I²C/USB/RS232接口）。
• 快速原型制作：显示器+触控组合的样品交付周期为4周。
理想用途：医疗可消毒接口、汽车仪表盘、工厂自动化控制。
产品规格
| Item | Specification | Unit |
| LCD Type | TFT | - |
| Display color | 16.7M | - |
| Viewing Direction | IPS, All viewing angles | O’Clock |
| Operating temperature | -30~+80 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Module size | Refer to outline drawing | mm |
| Active Area(W × H) | 115.20X86.40 | mm |
| Number of Dots | 640 x 480 | dots |
| LCM Controller | JD9168S | - |
| Power Supply Voltage | 3.3 | V |
| Backlight | 3S7P-LEDs (white) | pcs |
| Interface | RGB Interface | - |

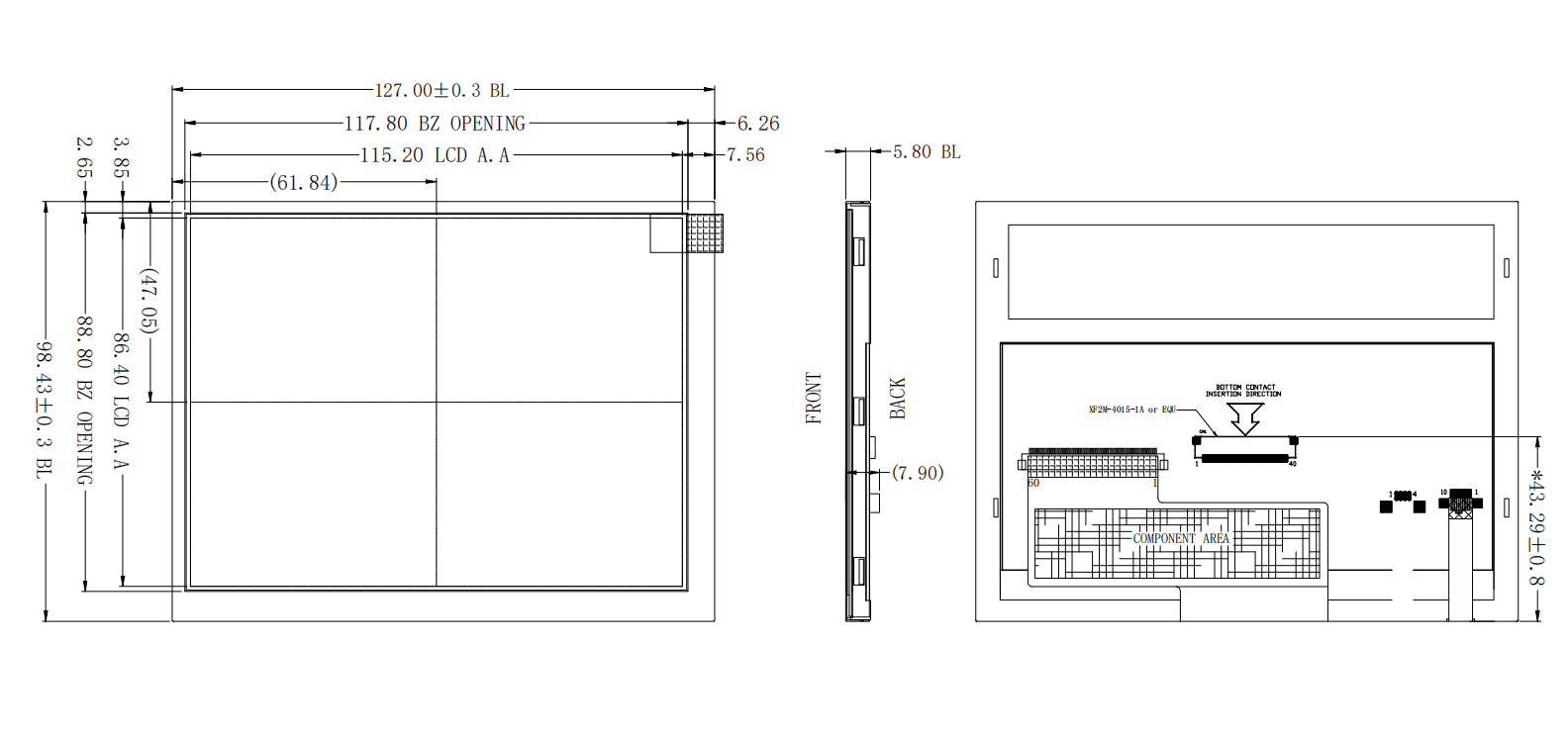

外部尺寸
绝对最大额定值
| Item | Symbol | Min. | Max. | Unit |
| Supply Voltage Voltage | VCC | -0.3 | 3.3 | V |
| Backlight Supply Voltage | VLED | -0.3 | 6.0 | V |
| Operating temperature | Top | -30 | 80 | ℃ |
| Storage temperature | Tst | -30 | 80 | ℃ |
背光特征
| Item | Symbol | Typical Value | |
| Supply voltage | VLED | 5V | |
| Supply Current | IL | 300 - mA | |
| Power Consumption | PL | 1.5 - W | |
| PWM Control Frequency | FPDIM | 50K Hz | |
| Backlight ON-OFF | High | VEN | 1.4 VLED V |
| Low | 0 - 0.4 V | ||
| PWM Control Level | High | VPDIM | 1.5 V |
| Low | 0 - 0.4 V | ||
| Uniformity | ΔBp | 80% | |
| Life Time | time | 40K hours | |
接口引脚定义
| Pin No. | Symbol | I/O | Definition |
| 1 | U/D | I | Up/down scan direction on panel module. |
| 2 | NC | - | No Connection. |
| 3 | HSYNC | I | Horizontal sync input in RGB interface. |
| 4-6 | VLED | P | Power supply for LED driver. |
| 7 | VCC | P | Power supply for TFT. |
| 8 | VSYNC | I | Vertical sync input in RGB interface. |
| 9 | DE | I | Data enable input in RGB interface. |
| 10 | XL | I | No Connection. |
| 11 | YU | I | No Connection. |
| 12 | ADJ | I | PWM signal input pin. |
| 13-15 | B5-B3 | I | Blue data bus. |
| 16 | VSS | P | Ground. |
| 17-19 | B2-B0 | I | Blue data bus. |
| 20 | VSS | P | Ground. |
| 21-23 | G5-G3 | I | Green data bus. |
| 24 | VSS | P | Ground. |
| 25-27 | G2-G0 | I | Green data bus. |
| 28 | VSS | P | Ground. |
| 29-31 | R5-R3 | I | Red data bus. |
| 32 | VSS | P | Ground. |
| 33-35 | R2-R0 | I | Red data bus. |
| 36 | XR | I | No Connection. |
| 37 | YD | I | No Connection. |
| 38 | DCLK | I | Pixel clock input in RGB interface. |
| 39 | VSS | P | Ground. |
| 40 | L/R | I | Left/right scan direction on panel module. |

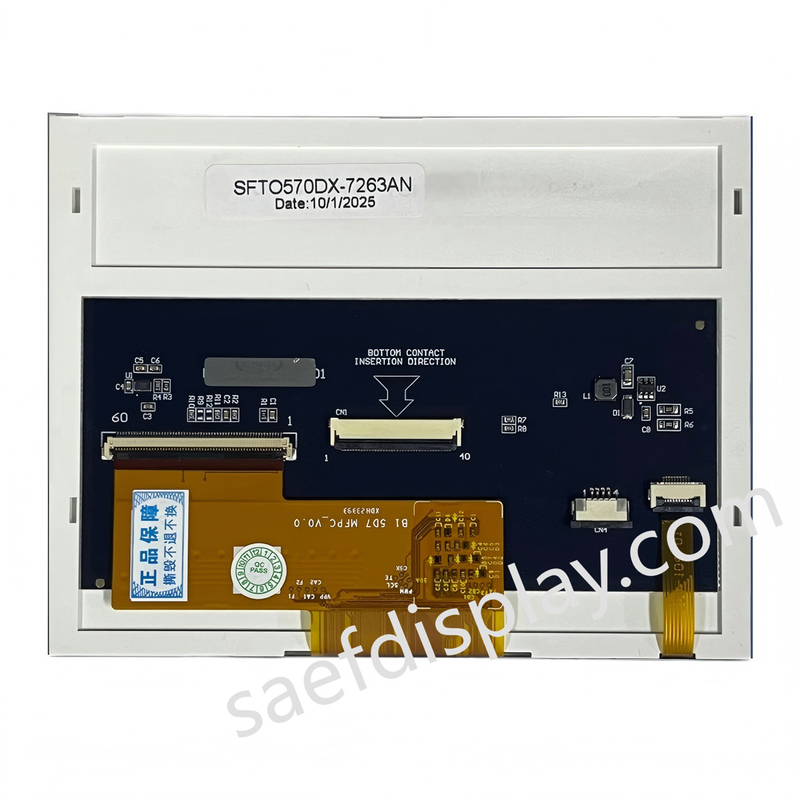

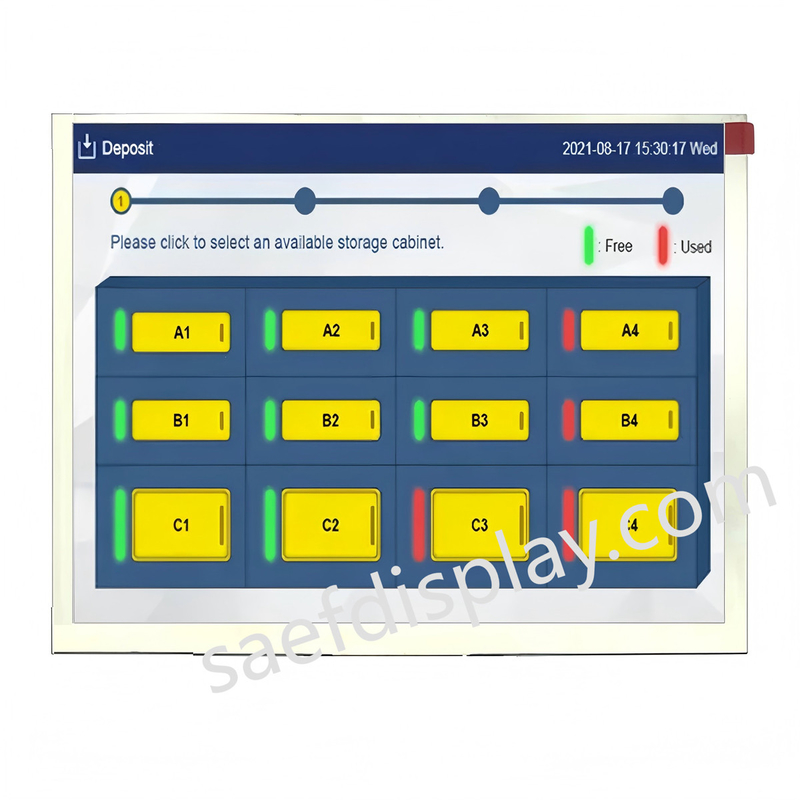

产品图像
