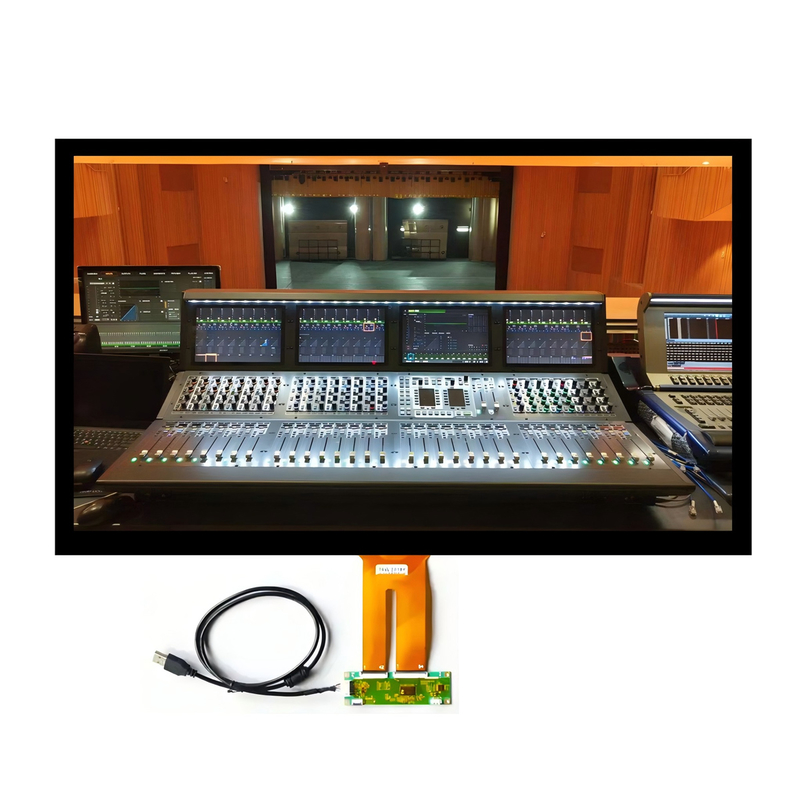

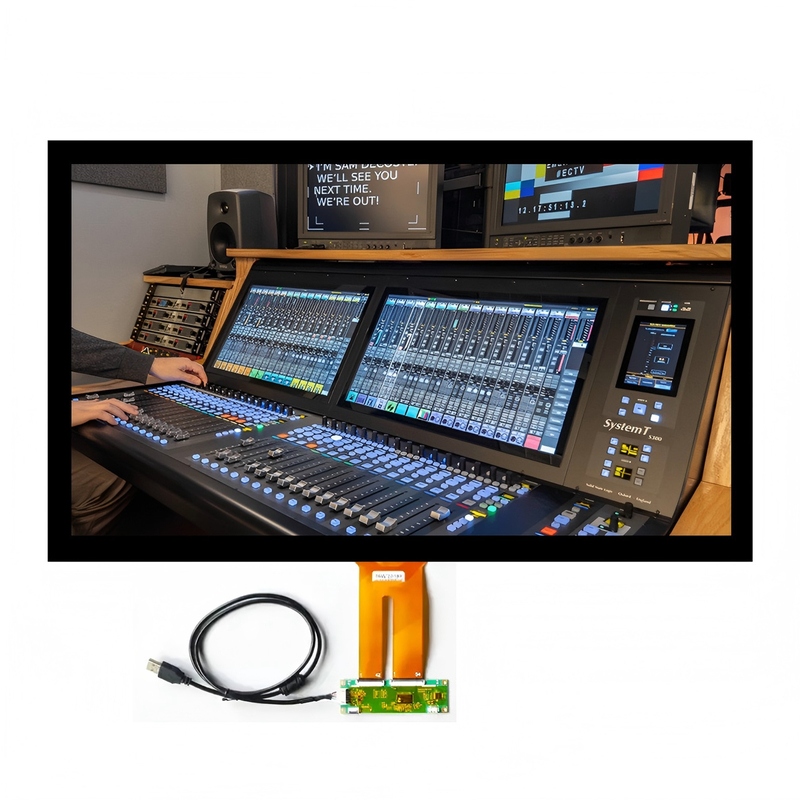

21.5英寸工业级TFT显示屏，支持10点触控 | 全高清1920x1080分辨率 | 双LVDS接口

产品中心/ product: TFT彩屏高亮液晶屏 TFT触摸屏 HDMI TFT显示器工业级TFT屏 OLED屏条型TFT屏圆形TFT屏方形TFT屏全视角TFT屏电阻触摸TFT屏电子墨水屏树莓派触摸屏 OLED模块
推荐产品/ hot

产地：深圳 / 中国

品牌：SAEF

型号：SFHD2150A01PT-H20%2

认证：ISO9001 / ISO14000

资料下载视频播放

Model Number:	SFHD2150A01PT-H20%2	Screen Size:	21.5-inch Diagonal
Resolution:	1920×1080 Pixels (RGB Stripe)	Brightness:	1000 Cd/m²
Storage Temp.:	-10°C To +60°C	Operating Temp.:	-20°C To +60°C
Contrast Ratio:	1000:1 (Typ.)	Interface:	LVDS
Power Supply:	5V DC ±10%	Power Consumption:	37.22W (Typ.)
Surface Treatment:	AG/AF Coatings	Touch Technology:	PCAP(CTP) Optional
Cover Glass:	Gorrila Glass	Touch Points:	10-Point Multi-Touch
Touch Interface:	USB	IC Options:	ILITEK
Customization:	Silk Printing, Logo	Compliance:	REACH & RoHS Compliant
Highlight:	RoHS TFT LCD Module, 21.5 Industrial TFT LCD, LVDS Interface TFT LCD Module

SFHD2150A01PT-H20%2 工业级21.5英寸TFT液晶显示模块

使用Saef Technology的高性能触摸屏显示器，提升您的工业设备性能，该显示器专为在严苛环境中可靠运行而设计。

主要特点：

✅ 全高清清晰度

1920×1080分辨率，1000:1对比度（典型值），采用VA面板技术，并配备防眩光3H表面，确保在明亮光照下依然清晰可见。

✅ 坚固耐用的投射电容式触控

通过USB接口支持10指多点触控。兼容Android/Win7/Win10系统。6H硬化玻璃可承受工业磨损。

✅ 扩展温度范围

在-10°C至+60°C的温度范围内运行无故障（存储温度：-20°C~60°C）。非常适合工厂自动化、医疗设备和户外信息亭。

✅ 工业级耐用性

双通道LVDS接口，确保信号稳定传输

14毫秒快速响应时间

700 cd/m² 高亮度（典型值）

VESA安装支架

✅ 2年保修

享受Saef的延长保修服务（型号：SFHD2150A01PT-H20%2），部署无忧。

技术规格：

• 有效面积：476.064 × 267.786 毫米

• 接口：LVDS（30针连接器）+ USB（触控）

• 电源：5V DC ±10% | 功耗：≤6W（典型值）

• 触控报告率：≥100Hz

• 结构：金属框架，前部密封达到IP65（可选）

应用：

人机界面面板 | 数控机床 | 测试与测量设备 | 运输系统 | 自助服务终端

订单号：SFHD2150A01PT-H20%2

合规性：CE/FCC RoHS（根据要求）

规格

ITEMS	Unit	Specification
Screen Diagonal	mm	546.86(21.5”)
Active area	mm	476.064(H) x 267.786(V)
Pixels H x V	-	1920(x3) x 1080
Pixels Pitch	um	247.95(per one triad) x247.95
Pixel Arrangement	-	R.G.B. Vertical Stripe
Display Mode	-	VA Mode, Normally Black
Response Time	Msec	14ms (typ., on/off)
Weight	Grams	TBD
Electrical Interface	-	Dual channel LVDS,8 bits RGB data input
Support Color	-	16.7M colors
Surface Treatment	-	Anti-Glare,3H
Operating Temperature	℃	-10 to +60
Storage Temperature	℃	-20 to +60

接口引脚定义

Pin No.	Symbol	Description
1	RxO0-	Negative LVDS differential data input (Odd data)
2	RxO0+	Positive LVDS differential data input (Odd data)
3	RxO1-	Negative LVDS differential data input (Odd data)
4	RxO1+	Positive LVDS differential data input (Odd data)
5	RxO2-	Negative LVDS differential data input (Odd data)
6	RxO2+	Positive LVDS differential data input (Odd data)
7	GND	Ground
8	RxOCLK-	Negative LVDS differential clock input (Odd clock)
9	RxOCLK+	Positive LVDS differential clock input (Odd clock)
10	RxO3-	Negative LVDS differential data input (Odd data)
11	RxO3+	Positive LVDS differential data input (Odd data)
12	RxE0-	Negative LVDS differential data input (Even data)
13	RxE0+	Positive LVDS differential data input (Even data)
14	GND	Ground
15	RxE1-	Negative LVDS differential data input (Even data)
16	RxE1+	Positive LVDS differential data input (Even data)
17	GND	Ground
18	RxE2-	Negative LVDS differential data input (Even data)
19	RxE2+	Positive LVDS differential data input (Even data)
20	RxECLK-	Negative LVDS differential clock input (Even clock)
21	RxECLK+	Negative LVDS differential clock input (Even clock)
22	RxE3-	Negative LVDS differential data input (Even data)
23	RxE3+	Positive LVDS differential data input (Even data)
24	GND	Ground
25	CTL	CTL_DVR
26	CE	CE_DVR
27	NC	No connection
28	VDD	Power Supply Input Voltage
29	VDD	Power Supply Input Voltage
30	VDD	Power Supply Input Voltage

光学特征

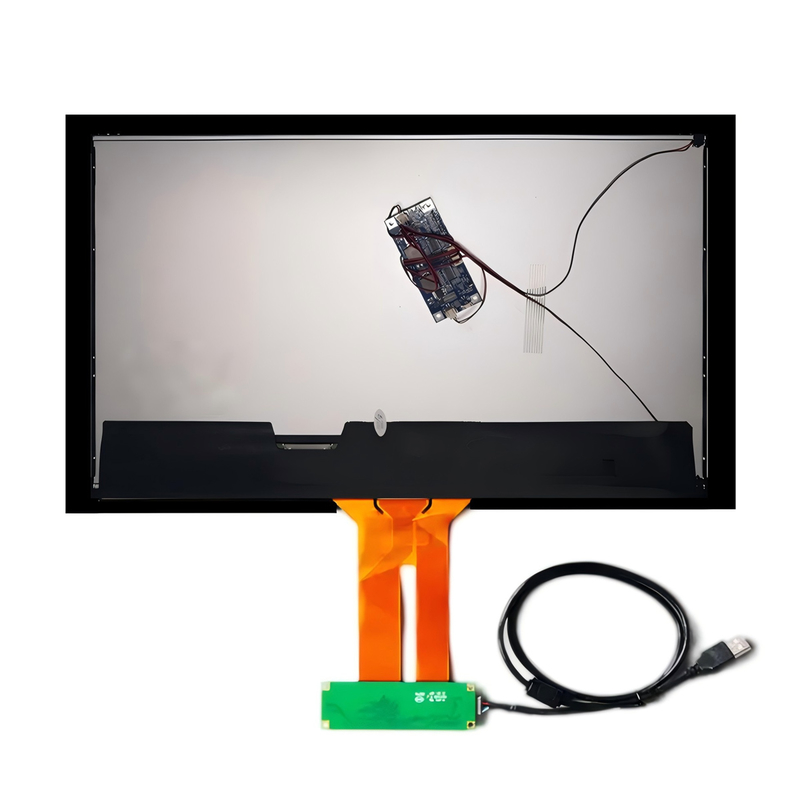

电容触摸面板

Item	Specifications	Unit
Type	Projected touch panel
Size	21.5	Inch
Structure	G+G
Total Thickness	3.95±0.3	mm
Outline of Cover Lens	525*324±0.3	mm
Outline of ITO Sensor	493.64*286.11±0.5	mm
Viewing Area	477.2*268.8±0.3	mm
Active Area	480.64*272.11±0.3	mm
Interface	USB
Number of touch point	10 (with ILI2510-PCIL22 Control PCB)
Input voltage	5V(with ILI2510-PCIL22 Control PCB)
Response time	10	ms
Report Rate	≥100	HZ
Pressure endurance value	＜10g
Input	Handwriting or capacitive pen
Transmittance	≥85%
Surface Hardness	≥6H
Usage	The specification is applied to transparent and handwriting input capacitive touch panels
