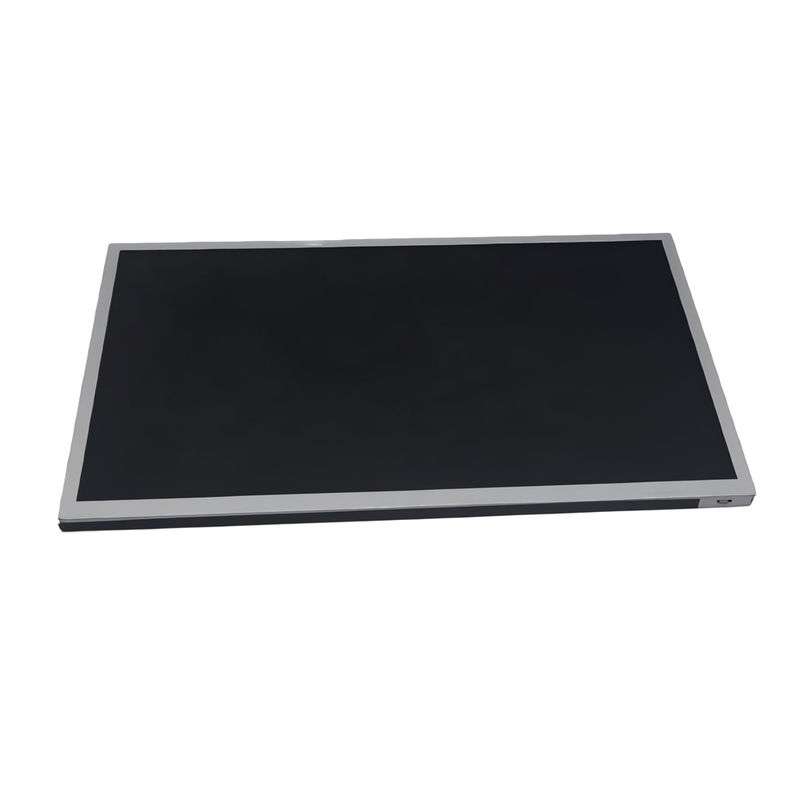

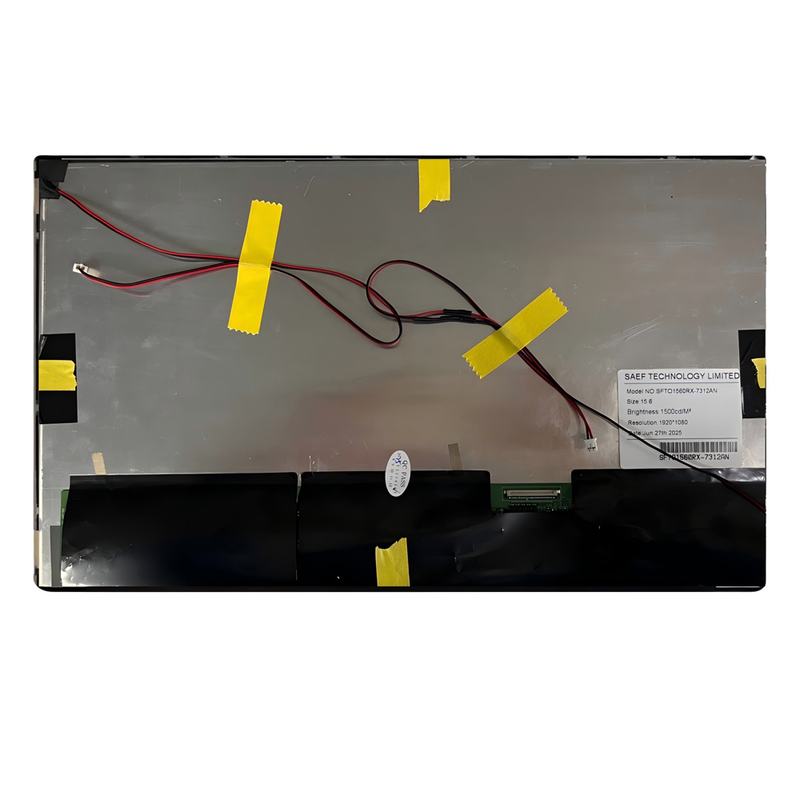

工业15.6“TFT液晶显示器- 1500尼特日光可读，FHD， -30°C至85°C， LVDS

产地：深圳 / 中国

品牌：SAEF

型号：SFTO1560RX-7312AN

认证：ISO9001 / ISO14000

资料下载视频播放

产品详情

Display Type:	Industrial TFT LCD	Screen Size:	15.6-inch (365.72×220.39mm Bezel)
Resolution:	1920×1080 FHD (0.179mm Pixel Pitch)	Peak Brightness:	1500 Cd/m² (Typ)
Viewing Angle:	85°/85°/85°/85° (CR≥10)	Operating Temp.:	-30°C To +85°C (Wide Temp Certified)
Interface:	40-pin 2ch LVDS (I-PEX 20455-040E)	Power Input:	3.3V DC ±10% (4W Typ, 5W Max)
Contrast Ratio:	800:1 (Typ)	Backlight:	External LED Light Bar
LED Lifetime:	24.35W, 50,000hrs Lifespan	Color Gamut:	72% NTSC
Application:	HMI, Outdoor Machinery, Automotive, Medical	Compliance:	REACH & RoHS Compliant

为极端工业环境设计

SFTO1560RX-7312AN是15.6英寸的高光泽TFT LCD，可承受严格的条件。它具有1500nits的亮度和-30°C至85°C的操作，它在直接的阳光下可见度毫不妥协，适用于阳光直射或冷冻温度 - 非常适合建筑设备，工厂自动化和工厂自动化和外部自动化和外部自动化和外部自动化。

工业级坚固性

• 军事级耐用性：通过100个热休克周期，10-55Hz振动测试和±12KV ESD保护验证。

• 50,000小时的LED背光：外部轻杆，带有45.1V输入（IP67可选），以进行最小维护。

• 耐化学表面：3H硬化的抗透明涂层可承受工业清洁剂。

智能集成功能

• 插件LVD接口：40针连接器（I-PEX 20455）具有反向扫描控制以进行灵活安装。

• 零图像保留：唯一的信号模式可防止24/7操作期间燃烧。

• 低功率设计：3.3V时4W典型的消费 - 减少系统热负载。

获得全球部署认证

• 符合欧盟RoHS/REACH标准

• 通过ISO 9001（质量）和14001（环境）认证

• 1年功能保修

受到行业的信任：

• 重型机械：挖掘机控制面板，农业展示

• 运输：航空仪表板，海洋导航系统

• 医疗：诊断设备，便携式监视

• 能源：石油钻机HMIS，太阳能农场控制终端

请求自定义：与sales2@saef.com.cn联系，以获取IP级版本，触摸屏集成或自定义挡板。

规格

Item	Specification	Unit
Screen Size	15.6” real diagonal
Beael Opening	365.72x220.39x12.5	mm
Pixel Number	1920 x R.G.B. x 1080	pixel
Pixel Pitch	0.17925 (H) x 0.17925 (V)	mm
Display Area	344.16x193.59	mm
Display Colors	16.7M	color
Transmissive Mode	Normally Black	-
Surface Treatment	AG type, 3H hard coating,	-
Power Consumption	Total cell
TC	8100	k
NTSC	72 (Typ)	%

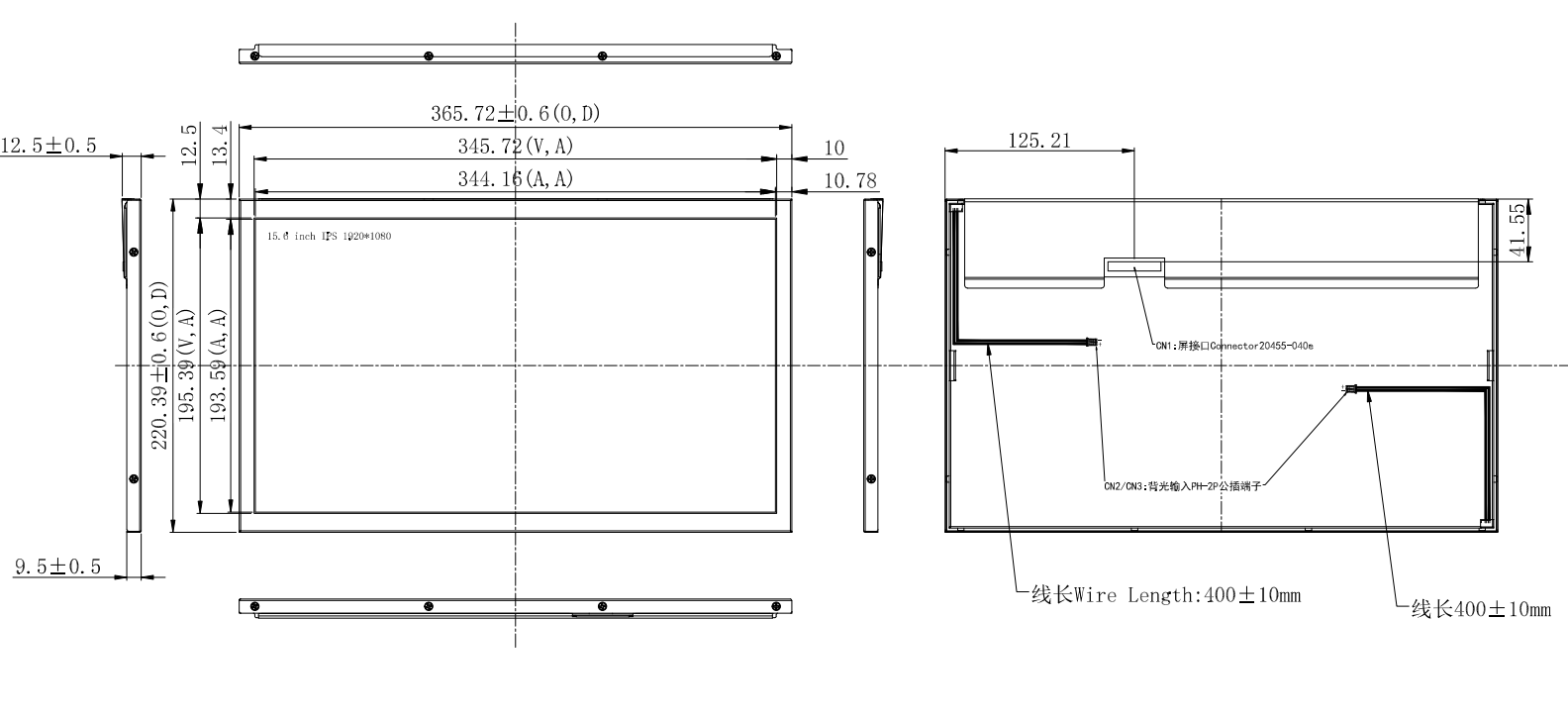

外部尺寸

详情-1

接口引脚定义

Pin	Name	Description
1	NC	Not connection, this pin should be open
2	NC	Not connection, this pin should be open
3	NC	Not connection, this pin should be open
4	NC	Not connection, this pin should be open
5	NC	Not connection, this pin should be open
6	NC	Not connection, this pin should be open
7	NC	Not connection, this pin should be open
8	NC	Not connection, this pin should be open
9	NC	Not connection, this pin should be open
10	NC	Not connection, this pin should be open
11	LCD_VCC	LCD logic and driver power 3.3V
12	LCD_VCC	LCD logic and driver power 3.3V
13	LCD_VCC	LCD logic and driver power 3.3V
14	NC	Not connection, this pin should be open
15	NC	Not connection, this pin should be open
16	NC	Not connection, this pin should be open
17	REV_SCAN	Low → Normal Mode. High → Horizontal & Vertical Reverse Scan
18	RXO0-	Negative LVDS differential data input. Channel O0 (odd)
19	RXO0+	Positive LVDS differential data input. Channel O0 (odd)
20	RXO1-	Negative LVDS differential data input. Channel O1 (odd)
21	RXO1+	Positive LVDS differential data input. Channel O1 (odd)
22	RXO2-	Negative LVDS differential data input. Channel O2 (odd)
23	RXO2+	Positive LVDS differential data input. Channel O2 (odd)
24	LCD GND	LCD logic and driver ground
25	RXOC-	Negative LVDS differential clock input. (odd)
26	RXOC+	Positive LVDS differential clock input. (odd)
27	LCD GND	LCD logic and driver ground
28	RXO3-	Negative LVDS differential data input. Channel O3(odd)
29	RXO3+	Positive LVDS differential data input. Channel O3 (odd)
30	RXE0-	Negative LVDS differential data input. Channel E0 (even)
31	RXE0+	Positive LVDS differential data input. Channel E0 (even)
32	RXE1-	Negative LVDS differential data input. Channel E1 (even)
33	RXE1+	Positive LVDS differential data input. Channel E1 (even)
34	LCD GND	LCD logic and driver ground
35	RXE2-	Negative LVDS differential data input. Channel E2 (even)
36	RXE2+	Positive LVDS differential data input. Channel E2 (even)
37	RXEC-	Negative LVDS differential clock input. (even)
38	RXEC+	Positive LVDS differential clock input. (even)
39	RXE3-	Negative LVDS differential data input. Channel E3 (even)
40	RXE3+	Positive LVDS differential data input. Channel E3 (even)
