7 英寸触摸屏 TFT，带 IK08 Konning Gorilla 2 盖玻璃，表面硬度>7H

产地：深圳 / 中国

品牌：SAEF

型号：SF-TO700B-8857A-CT

认证：ISO9001 / ISO14000

资料下载视频播放

产品详情

Keywords:	7" Inch TFT	Touch Screen:	CTP(Capacitive Touch Screen)
Resolution:	1024x600 Dots	Cover Glass Dimension:	Konning Gorilla
LCM Interface:	MIPI	Surface Luminance:	300 Cd/m2 (up To 1500 Nits )
EMI:	With EMI Shielding	Surface Hardness:	>7H
Shock Resistance:	IK08	LED Lifetime:	40,000 Hours
Pins:	30 Pins	Viewing Direction:	All Viewing Angle(80/80/80/80)
CTP Interface:	I2C	Operating Temp.:	–20℃ To +70℃
Compliance:	REACH & RoHS Compliant	Dustproof:	With 3M VHB
Highlight:	7H Hardness touch screen TFT, 7-inch touch screen TFT, IK08 touch screen TFT

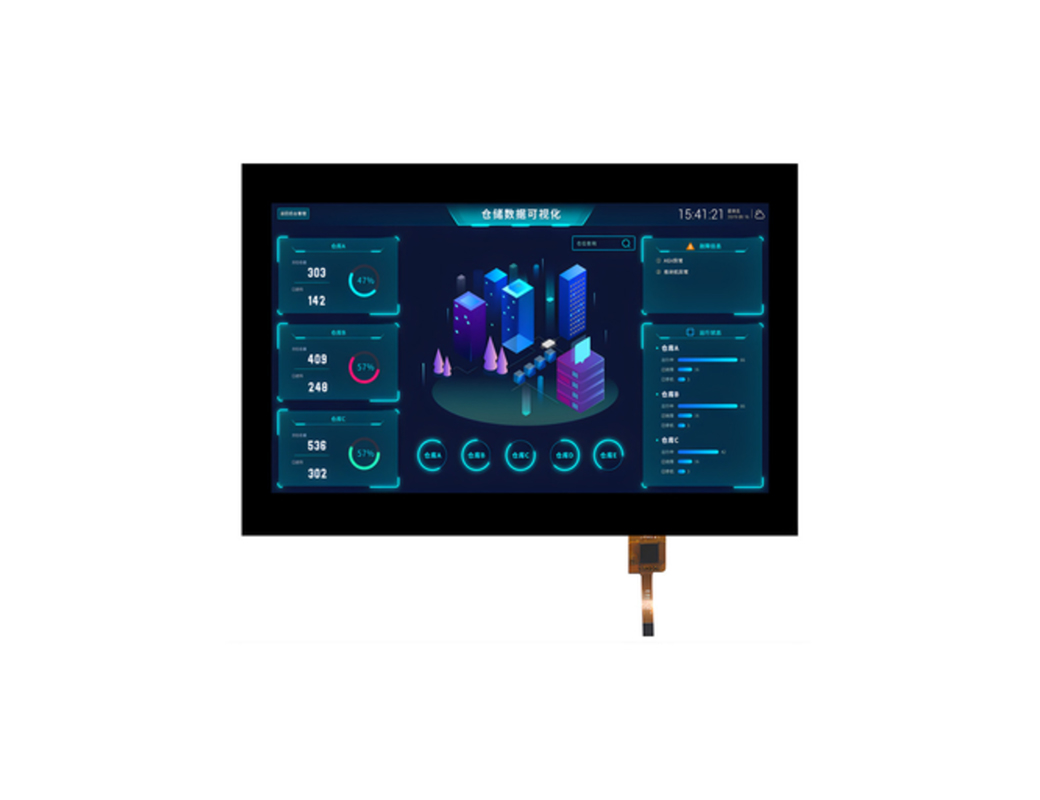

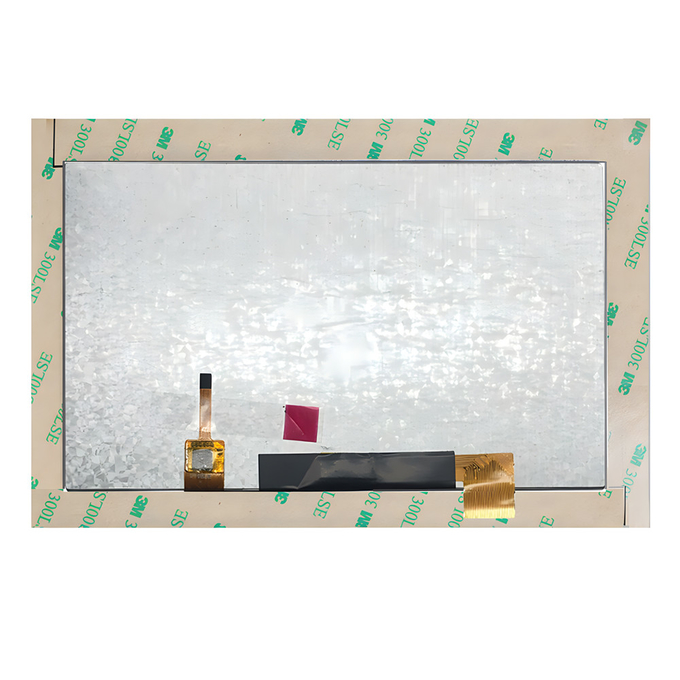

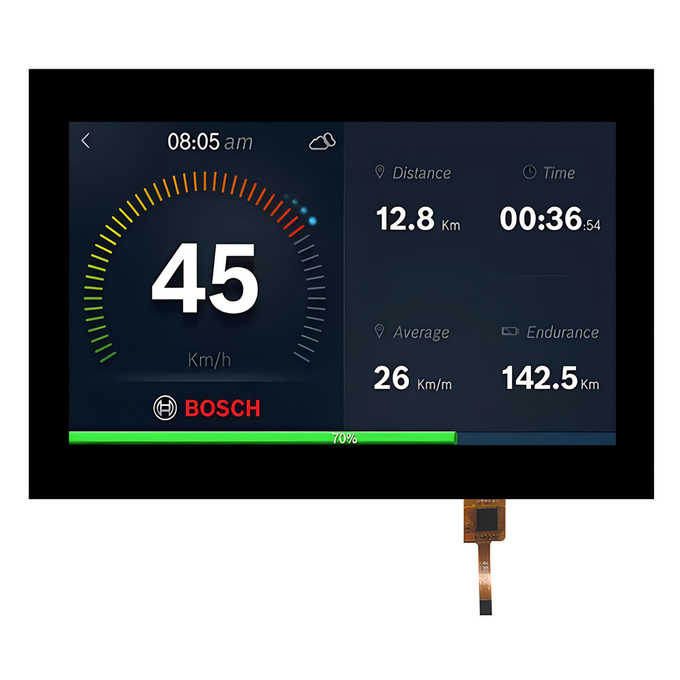

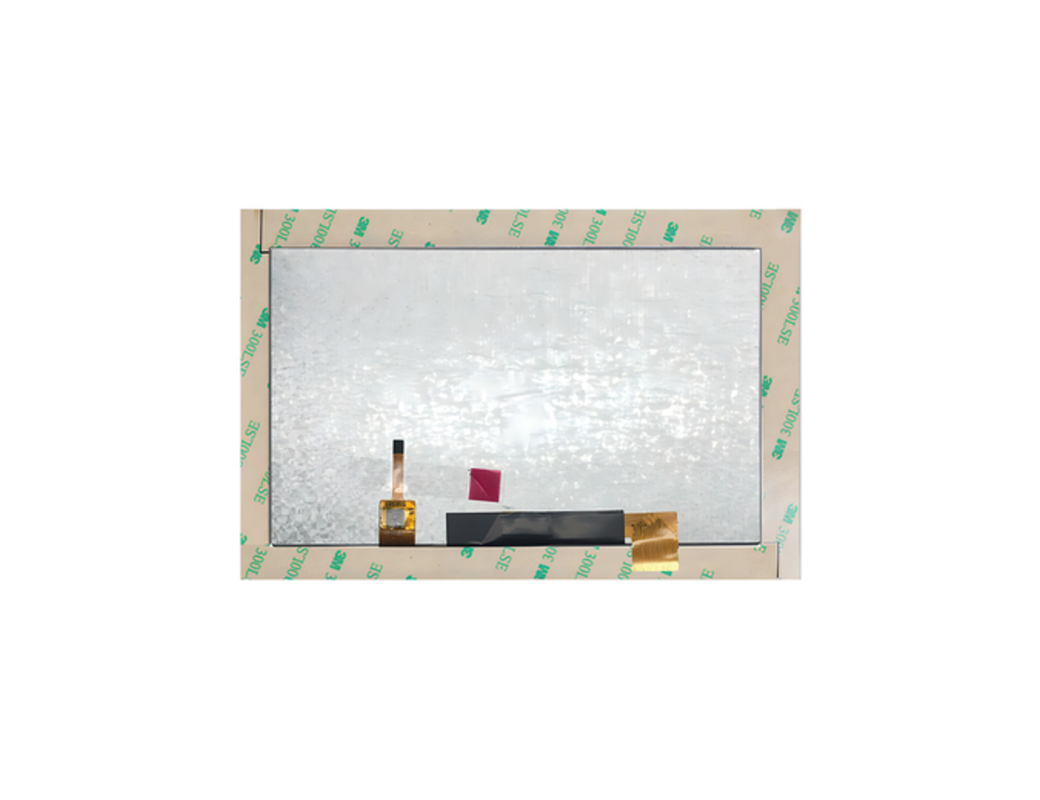

SAEF科技SF-TO700B-8857A-CT采用康宁大猩猩2mm玻璃作为盖板，具有IK08抗冲击性能，表面硬度高达7H。玻璃表面处理有抗菌、防水、防指纹、防眩光、防反射等多种功能选择。我们可以根据客户的具体要求进行定制。盖板玻璃的尺寸可以根据客户的应用进行定制。为了实现防尘，我们会在玻璃背面的台阶上涂抹3M VHB，可以完全防止灰尘进入用户的设备。在这款产品的设计中，我们还进行了防静电处理。通过接触静电测试，产品/用户设备静电等级达到8KV，并通过空气静电测试，达到10KV。另一个应用选择是，无论徒手还是戴着塑料手套，该产品都能拥有完美的触摸效果。

SAEF科技SF-TO700B-8857A-CT目前已被客户使用，亮度为300nits。同时，我们可以将产品的亮度提高到500nits、1000nits、1500nits，以满足用户在不同环境下的需求。

产品快速详细信息

1. LCD 尺寸：7”英寸 TFT

2. 分辨率：1024x600

3. 可视角度：自由、全视角

4. 外形尺寸：164x97x2.6mm

5. LCM 接口类型：MIPI

6. CTP 接口类型：I2C

7. 温度：最高-20°C 至+70°C； Tst -30°C 至 +80°C

8. 触摸屏：电容式触摸屏（CTP）

规格

Item	Contents	UNIT
LCD Type	7.0” TFT-LCD, Transmissive
Outline Dimension	190.0 (V)x 138.0 (H)x5.78(T)	mm
Active Area	85.92(V) x154.21(H)	mm
Viewing direction	ALL Viewing angles	---
Display Color	16.7M
Number of Dots	1024(RGB)x600	Dots
Dot Pitch (H×V)	0.1506(W) x 0.1432(H)	mm
Assy Type	COG+FPC+BL+CTP	---
BACKLIGHT	WHITE LED Backlight	-
Interface	MIPI INTERFACE
WEIGHT	TBD	g

TFT液晶模组 7寸 1024x600 MIPI接口 IPS 带CTP 产品图

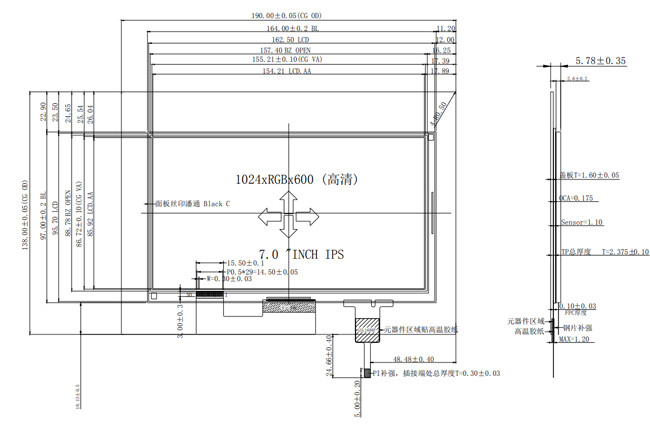

pl85587885-remark

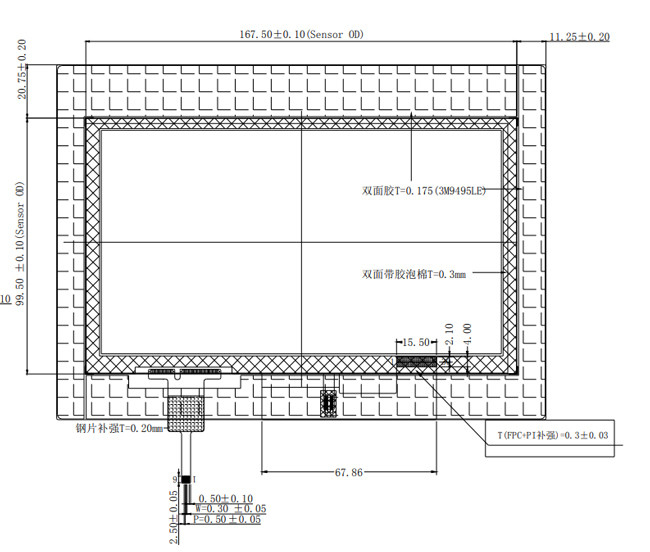

pl85587887-remark

LCM引脚定义

Pin No.	Symbol	Function
1	VLED+	LED Anode
2	VLED+	LED Anode
3	VGH	Positive power for TFT
4	VGL	Negative power for TFT
5	UPDN	Gate up or down scan control. UPDN = ”L”, STV2 output vertical start pulse and UD pin output logical “L” to Gate driver. (default) UPDN = ”H”, STV1 output vertical start pulse and UD pin output logical “H” to Gate driver
6	SHLR	Source right or left sequence control. SHLR = ”L“, shift left: last data = S1←S2←S3….......←S1536 = first data. SHLR = ”H“, shift right: first data = S1→S2→S3….....→S1536 = last data.(default)
7	VLED-	LED Cathode
8	VLED-	LED Cathode
9	AVDD	Power for Analog Circuit
10	GND	Ground
11	D3P	MIPI data input.
12	D3N	MIPI data input.
13	GND	Ground
14	D2P	MIPI data input.
15	D2N	MIPI data input.
16	GND	Ground
17	CLKP	MIPI clock input
18	CLKN	MIPI clock input
19	GND	Ground
20	D1P	MIPI data input.
21	D1N	MIPI data input.
22	GND	Ground
23	D0P	MIPI data input.
24	D0N	MIPI data input.
25	GND	Ground
26	STBYB	Standby mode. STBYB = ”H“,normal operation(default) STBYB = ”L”, timing controller, source driver will turn off, all output are GND.
27	RESET	Global reset pin. Active Low to enter Reset State. Normally pull high. Connecting with an RC reset circuit for stability.
28	VDD(1.8V)	Digital circuit
29	VDD(1.8V)	Digital circuit
30	VCOMIN	Common voltage
