| Brightness: | 1000 Cd/m² (Sunlight Readable) | Screen Size: | 13.3-inch Diagonal |
| Resolution: | 1920×1080 Pixels (RGB Stripe) | Storage Temp.: | -20°C To +70°C |
| Operating Temp.: | -30°C To +80°C | Touch Technology: | Capacitive Touch Panel |
| Interface: | 2-lane EDP 1.2 (2.7Gbps) | Color Gamut: | 72% NTSC |
| Viewing Angles: | 85°/85°/85°/85° | Backlight Lifetime: | 50,000 Hours (LED, @25°C) |
| Surface Treatment: | AG/AR/AF Coatings (Selectable) | Contrast Ratio: | 800:1 (Typical) |
| Surface Hardness: | ≥6H (Anti-Glare, Haze 10%) | IC Options: | EETI, ILITEK, Cypress, Goodix |
| Environmental Resistance: | Operational In Fog/Surface Moisture | Compliance: | RoHS, Halogen-Free, ISO 9001/14001 (EU/US Certified) |
| Highlight: | eDP Interface TFT LCD Display Module, Industrial TFT LCD Display Module, Industrial TFT LCD Display Module | ||
行业领先的1000尼特TFT显示屏，提供极致的可见性
SFTO1330SM-7208A3CT2以卓越的1000 cd/m²亮度重新定义了高亮度性能，专为北美和欧洲的关键应用而设计。这款13.3英寸全高清TFT液晶显示模块非常适合户外信息亭、工业人机界面和医疗设备，在直射阳光或高环境温度下都能提供无与伦比的清晰度。它配备坚固的电容式触摸屏（可戴手套操作）和超宽工作温度范围（-20°C至+70°C），符合严格的欧盟/美国工业标准。
核心创新
• 阳光可读清晰度：1000尼特亮度+72% NTSC色域，在恶劣光照下呈现生动视觉效果。
• 工业级触控：防眩光玻璃盖板（6H硬度），支持雾气/凝结环境下操作（相当于IP65的坚固性）。
• 高速连接：2通道eDP 1.2接口（2.7Gbps）确保实时控制系统实现零延迟数据传输。
• 50,000小时背光：采用PWM调光（100Hz–1.6KHz）的高效节能LED，与冷阴极荧光灯（CCFL）相比，功耗降低40%。
• 即插即用集成：支持3.3V逻辑电源+12V/24V背光输入，兼容HDMI 2.0驱动板（数据表中已包含）。
面向欧盟/美国市场的技术优势
• 卓越光学性能：85°可视角度，800:1对比度，以及<35ms响应时间，确保视频播放流畅。
• 极端环境适用：可在-20°C（冰冻条件）至+70°C（工厂车间）的温度范围内运行，并具备72小时湿度/热冲击认证。
• 零合规风险：符合RoHS标准、无卤素、通过ISO 9001/14001认证——完全符合欧洲EMC和美国FCC指令。
• 紧凑耐用：纤薄的5.2毫米机身，防震设计，以及电磁干扰（EMI）屏蔽的I-PEX连接器。
目标应用程序
• 户外支付终端（POS/自助服务终端）
• 工业控制面板（自动化、机器人）
• 医学影像设备
• 交通信息娱乐（公交、火车）
• 智能工厂设备
为何全球客户信赖此显示器
由信创天源制造的SFTO1330SM-7208A3CT2，将军用级耐用性与尖端光学技术完美结合。其eDP接口简化了与NVIDIA Jetson、Raspberry Pi和工业PC的集成，而阳光下可读的面板则省去了昂贵的外部屏蔽。该模块享有2年保修服务，是面向美国、德国、英国和斯堪的纳维亚等以可靠性为导向的市场的OEM厂商的最佳选择。

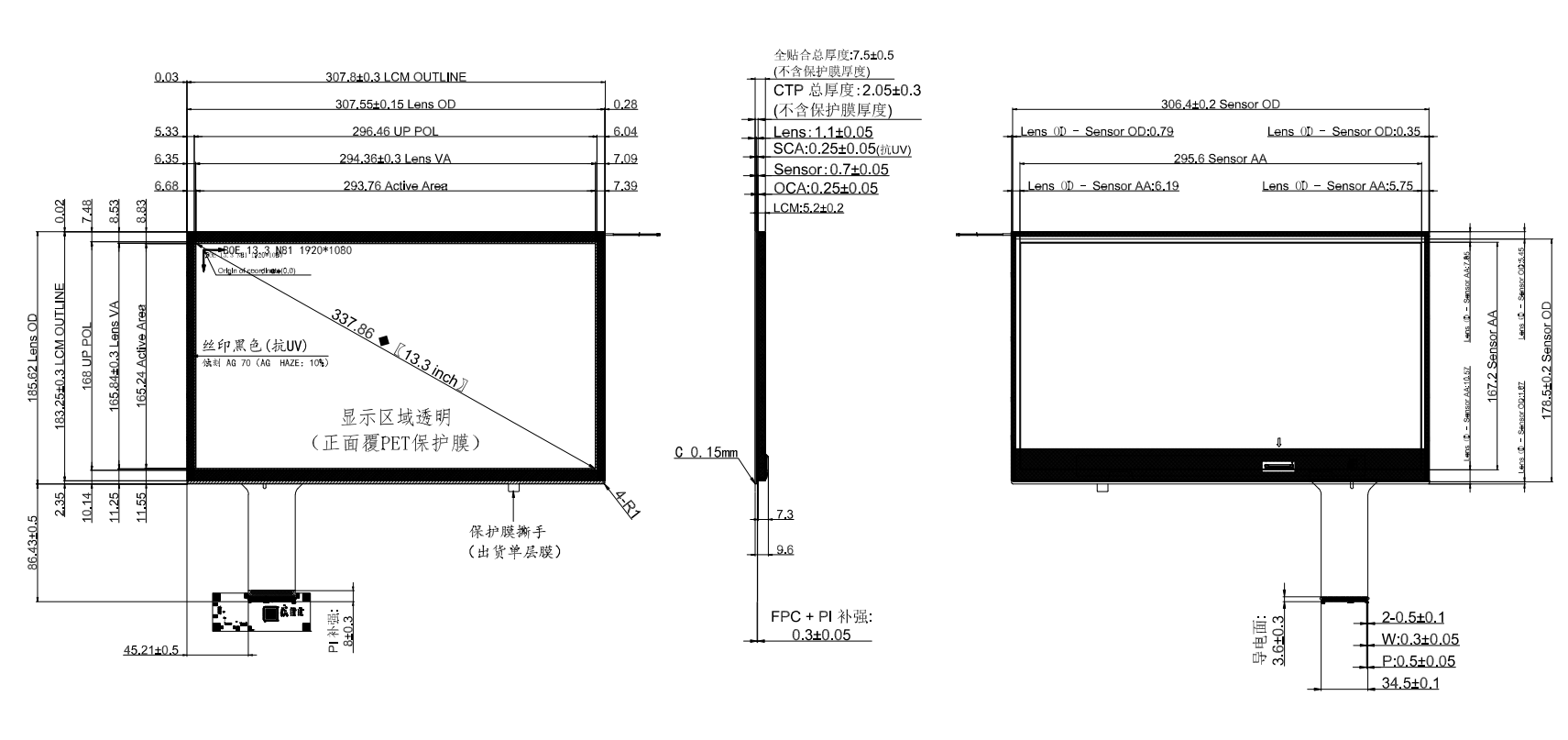

外部尺寸
接口引脚定义
| Pin No. | Symbol | I/O | Function |
| 1 | CABC_ EN / NC | - | Reserved for CD |
| 2 | H_GND | P | High Speed round |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed round |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed round |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed round |
| 12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 14 | NC | I | Reserved for LCD manufacturer’s use |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18 | LED-1 | P | Backlight ground |
| 19 | LED-2 | P | Backlight ground |
| 20 | LED-3 | P | Backlight ground |
| 21 | LED-4 | P | Backlight ground |
| 22 | BL_ ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM |
| 24 | SCL/NC | - | Reserved for LCD manufacturer’s use |
| 25 | SDA/NC | - | Reserved for LCD manufacturer’s use |
| 26 | BL_PWR | P | Backlight power |
| 27 | BL_PWR | P | Backlight power |
| 28 | BL_PWR | P | Backlight power |
| 29 | BL_PWR | P | Backlight power |
| 30 | NC | - | Reserved for LCD manufacturer’s use |
光学特征
| Paramete | Conditions | Min. | Typ. | Max. | Unit | |
| Viewing Angle (CR>10) | Horizontal | θL | - | 85 | - | degree |
| θR | - | 85 | - | |||
| Vertical | θT | - | 85 | - | ||
| θB | - | 85 | - | |||
| Contrast Ratio | Center | 600 | 800 | - | - | |
| Response Time | Tr+Td | - | 30 | 35 | ms | |
| CF Color Chromaticity(CIE1931) | Red x | Typ.-0.05 | TBD | Typ.+0.05 | - | |
| Red y | TBD | - | ||||
| Green x | TBD | - | ||||
| Green y | TBD | - | ||||
| Blue x | TBD | - | ||||
| Blue y | TBD | - | ||||
| White x | (0.323) | - | ||||
| White y | (0.379) | - | ||||
| NTSC ratio | % | (72) | - | |||
| Center Luminance of white | YLI | 800 | 1000 | cd/m2 | ||
背光特征
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Supply voltage | VBL | 5 | 12.0 | 37 | V |
| Power supply Current for Backlight | ILED | 6 | - | 25 | mA |
| Power supply for Back light | PLED | 0.18 | - | 5.55 | W |
| Modulated light signal voltage | VPWM H | 1.2 | - | 5.0 | V |
| VPWM L | 0 | - | 0.6 | V | |
| Brightness Control Duty Ratio | Duty | 1 | - | 100 | % |
| Brightness Control frequency | fPWM | 100 | - | 1,600 | KHz |
| LED-BL ON/OFF High voltage | VCNTH | 1.2 | 5.0 | V | |
| LED-BL ON/OFF low voltage | VCNTL | 0 | - | 0.6 | V |
| LED lifetime | - | 40,000 | 50,000 | - | h |
CTP规范
| Category | Parameter | Specification |
| General | Structure | Cover Glass + DITO Glass |
| Cover Lens Strengthening | Chemically Strengthened | |
| Cover Lens Surface Hardness | ≥6H (Pencil Hardness) | |
| Light Transmission Rate | ≥85% | |
| Operation Temperature | -20℃ ~ +70℃, ≤85% RH | |
| Storage Temperature | -30℃ ~ +80℃, ≤85% RH | |
| Electrical | Interface | IIC / USB / UART |
| Touch IC | IL12511 | |
| Power Supply Voltage (VDD) | 3.3V or 5V (Selectable) | |
| Host Resistance (SDA/SCL) | Configurable on Main-board | |
| Environmental | Operating Conditions | Functional in fog/surface water |
| Surface Properties | Surface Ink | Anti-UV |
| Surface Treatment | Anti-Glare (Haze: 10%) | |
| LCD-TP Lamination | OCA (Optically Clear Adhesive) | |
| Compliance | Material Standards | RoHS & Halogen-Free Compliant |

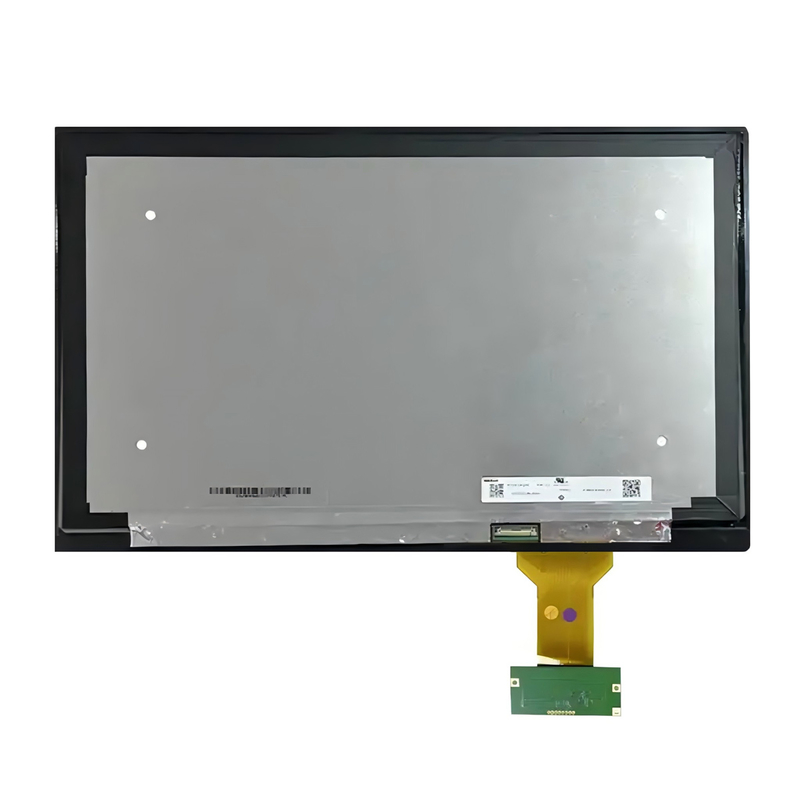

产品图像
