| Display Size: | 4.3-inch (480 × 272) | Display Brightness: | 1000 Cd/m² (Sunlight Readable) |
| Panel Technology: | IPS (In-Plane Switching) | Color Depth: | 16.7 Million Colors |
| Contrast Ratio: | 1000:1 (Typical) | Viewing Angle: | 85° All Directions (CR≥10) |
| Touch Technology: | I2C Capacitive (G+G Structure) | Operating Temp.: | -35°C To +85°C (Industrial Range) |
| Interface: | RGB 24-bit Parallel | Driver IC: | ST7283 (RAM-less Architecture) |
| Backlight: | 16-LED Edge Lit (4×4 Series) | Compliance: | RoHS/REACH, Halogen-Free |
| ESD Protection: | ±8kV Air / ±4kV Contact (IEC 61000-4-2) | Special Features: | Glove/Wet Touch Support, IP65 Optional |
| Highlight: | 4.3 inch IPS TFT LCD, 1000nit high brightness display, capacitive touch TFT screen | ||
1000NIT高亮度IPS显示针对极端环境
SFTO430HD-7338A-CT为我们的户外设备和德国工业HMI提供了可读的阳光可读性，将1000NIT IPS面板与工业级的电容式触摸相结合。为光学清晰度和可靠性不可谈判的应用程序设计：
• -30°C冷启动：冻结条件下的即时操作（根据IEC 60068-2-1测试）
• 手套/湿触摸：FT5446控制器支持2mm的触摸精度
• 反胶水优化：6h硬化玻璃 +≤2％的反射率
关键设计参数（竞争分化）
| Category | This Module | Typical Competitor |
| Brightness | 1000 cd/m² (Sustained) | 600–800 cd/m² |
| Temp Range | -30°C to +80°C | -20°C to +70°C |
| Touch Sensitivity | 0.5mm (Glove mode) | 1.5mm+ |
| Power Efficiency | 112mW (Max Backlight) | 150–200mW |
| Optical Clarity | 85% Light Transmission | 70–75% |
德国/美国工程师的技术亮点
①光学卓越
• 像素完美的IP：0.198mm像素间距γ-校正（ΔE<1.5）
• 均匀性保证：> 80％的亮度均匀性在9区网格
• 零色移：CIE1931坐标：白色（0.307X，0.330y）
②为行业4.0的稳健构建
• 振动阻力：1.5mm振幅 @55Hz（IEC 60068-2-6）
• 化学硬质表面：抵抗溶剂/消毒剂（DIN 58196）
• 密封键合：OCA/OCR层压可防止雾气
③接口精度
• ST7283驱动程序：消除外部RAM成本
• 信号完整性：CLK抖动<0.1T（40MHz操作）
• 低噪声设计：DEN/HSYNC/VSYNC屏蔽路由
目标应用
| Market | Critical Use Cases | Key Value |
| U.S. (Outdoor) | Construction equipment displays | 1000nit sunlight readability |
| Germany (Industrial) | Factory robot HMIs | -30°C cold start, glove touch |
| Medical | Portable surgical monitors | IP65 sealing, chemical resistance |
| Transport | Railway control panels | 55Hz vibration immunity |
合规性和认证
▸EU：EN 62368-1，ROHS/REACH，VDE 0805（德国）
▸US：FCC第15B部分，UL 60950-1▸
可靠性：120hr热循环（-35°C↔85°C），ISTA 3A下降测试

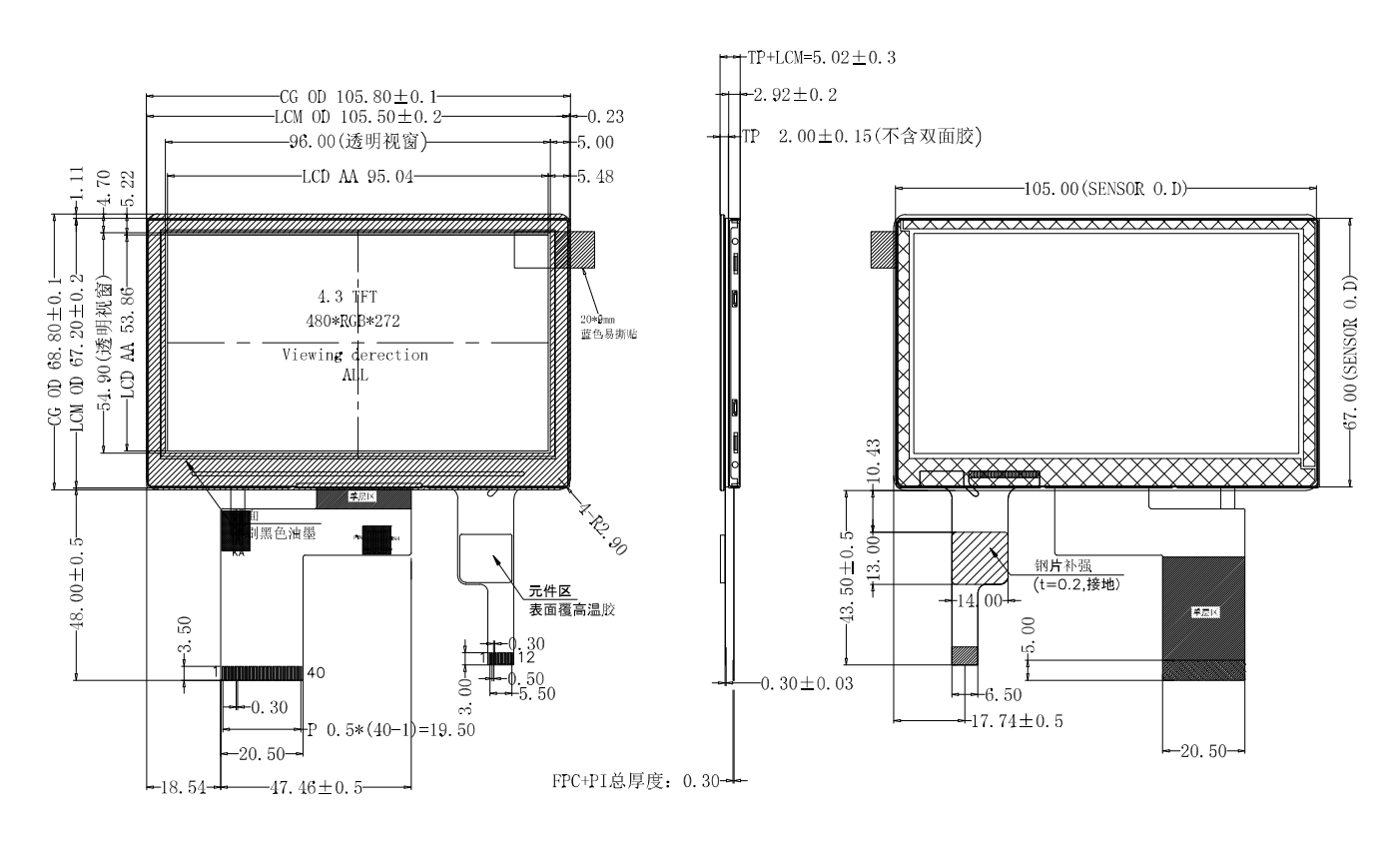

机械尺寸
产品信息
| Item | Specification | Unit |
| LCD Size | 4 . 3 ” | inch |
| Panel Type | IPS | - |
| Resolution | 480xRGBx272 | Pixel |
| Display Mode | Normally Black | - |
| Number of Colors | 16.7M | - |
| Viewing Direction | ALL | - |
| NTSC | 50% | - |
| Contrast Ratio | 1000 | - |
| Luminance | 1000 | cd/m2 |
| Module Size | 67.20(H)x105.5(V)x2.92(D) | mm |
| Panel Active Area | 95.04X53.86 | mm |
| Pixel Pitch | 0.198x0.198 | mm |
| Pixel Arrangement | RGB-stripe | |
| Weight | TBD | g |
| Driver IC | ST7283 | - |
| Driver IC RAM Size | RAM less | bit |
| Light Source | 1 6 LED Chips | - |
| Interface | RGB 24BIT | - |
| Operating Temperature | -30~+80 | ℃ |
| Storage Temperature | -35~+85 | ℃ |
CTP规范
| Category | Parameter | Specification |
| General | Structure | Cover Glass + ITO Sensor Glass (G+G) |
| Cover Lens Strengthening | Chemically Strengthened | |
| Cover Lens Surface Hardness | ≥6H (Pencil Hardness) | |
| Light Transmission Rate | ≥85% | |
| Operation Temperature | -30℃ ~ +80℃, ≤90% RH | |
| Storage Temperature | -35℃ ~ +85℃, ≤90% RH | |
| Electrical | Interface | I2C |
| Touch IC | FT5446 | |
| Power Supply Voltage (VDD) | 2.8V ~ 3.3V | |
| Host Resistance (SDA/SCL) | Configurable on Main-board | |
| Environmental | Operating Conditions | Functional in fog/ surface water/Glove |
| Surface Properties | Surface Ink | Clear type |
| Surface Treatment | Customizable | |
| LCD-TP Lamination | AIR, OCA and OCR Bonding Optional | |
| Compliance | Material Standards | RoHS & Halogen-Free Compliant |
接口引脚定义
| Pin No. | Symbol | Function |
| 1 | LEDK | Backlight cathode |
| 2 | LED_A | Backlight anode |
| 3 | GND | Ground |
| 4 | VCC | Analog Power Supply for LCM( 2.8V ) |
| 5-12 | R0-R7 | Data bus |
| 13-20 | G0-G7 | Data bus |
| 21-28 | B0-B7 | Data bus |
| 29 | GND | Ground |
| 30 | CLK | Pixel clock signal in RGB I/F |
| 31 | DISP | Display |
| 32 | HSYNC | Horizontal sync . Signal in RGB I/F |
| 33 | VSYNC | Vertical sync . Signal in RGB I/F |
| 34 | DEN | Data enable signal in RGB I/F DE mode |
| 35 | NC | |
| 36 | GND | Ground |
| 37 | XR | Touch panel pin |
| 38 | YD | Touch panel pin |
| 39 | XL | Touch panel pin |
| 40 | YU | Touch panel pin |
绝对最大额定值
| Item | Symbol | Value | Unit | Remark |
| Analog Power Supply Voltage | VDD | -0.3~+4.6 | V | - |
| Logic Input Voltage Range | VIN | -0.3 ~VDDI+0.3 | V | - |
| Logic Output Voltage Range | VO | -0.3 ~VDDI+0.3 | V | - |
典型的操作条件
| Item | Symbol | Min. | Typ. | Max. | Unit |
| Supply Voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| NVM Supply Voltage | VPP | 7.4 | 7.5 | 7.6 | V |
| Input High Voltage | VIH | 0.7*VDD | - | VDD | V |
| Input Low Voltage | VIL | DGND | - | 0.3*VDD | V |
| Output High Voltage | VOH | VDD-0.4 | - | VDD | V |
| Output Low Voltage | VOL | DGND | - | DGND+0.4 | V |
光学特征
| Item | Symbol | Condition | Min. | Typ. | Max. | Unit | |
| Viewing Angle Range | Left | θL | CR≧10 | 80 | 85 | - | degree |
| Right | θR | 80 | 85 | - | |||
| Top | θT | 80 | 85 | - | |||
| Bottom | θB | 80 | 85 | - | |||
| Response Time | Ton+Toff | θ=Ф=0˚ | - | 40 | ms | ||
| Contrast Ratio | CR | θ=Ф=0˚ | 800 | 1000 | - | - | |
| Luminance | L | θ=Ф=0˚ | 1000 | - | cd/m2 | ||
| Color Chromaticity (CIE1931) | White | Wx | Normal θ=Ф=0˚ | 0.307 | - | ||
| Wy | 0.33 | ||||||
| Red | Rx | 0.608 | |||||
| Ry | 0323 | ||||||
| Green | Gx | 0.317 | |||||
| Gy | 0.549 | ||||||
| Blue | Bx | 0.145 | |||||
| By | 0.138 | ||||||
| Uniformity | UL | θ=Ф=0˚ | - | 80 | - | % | |

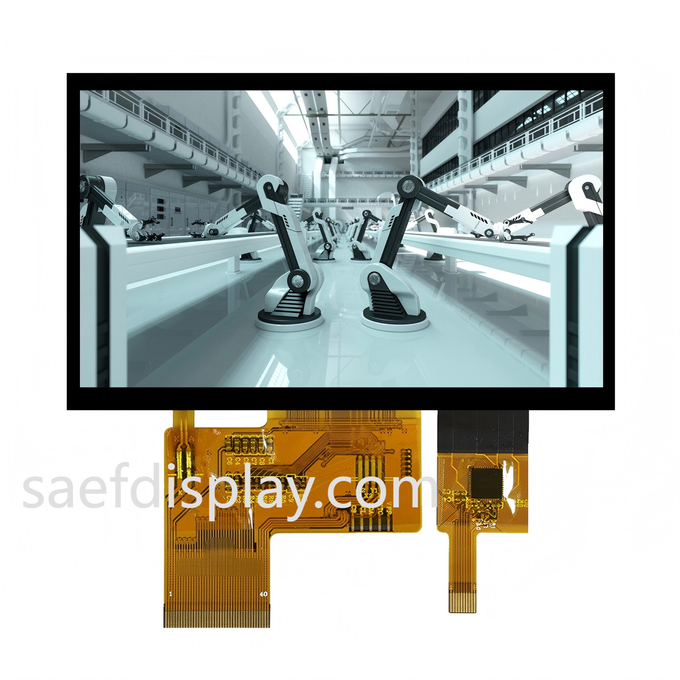

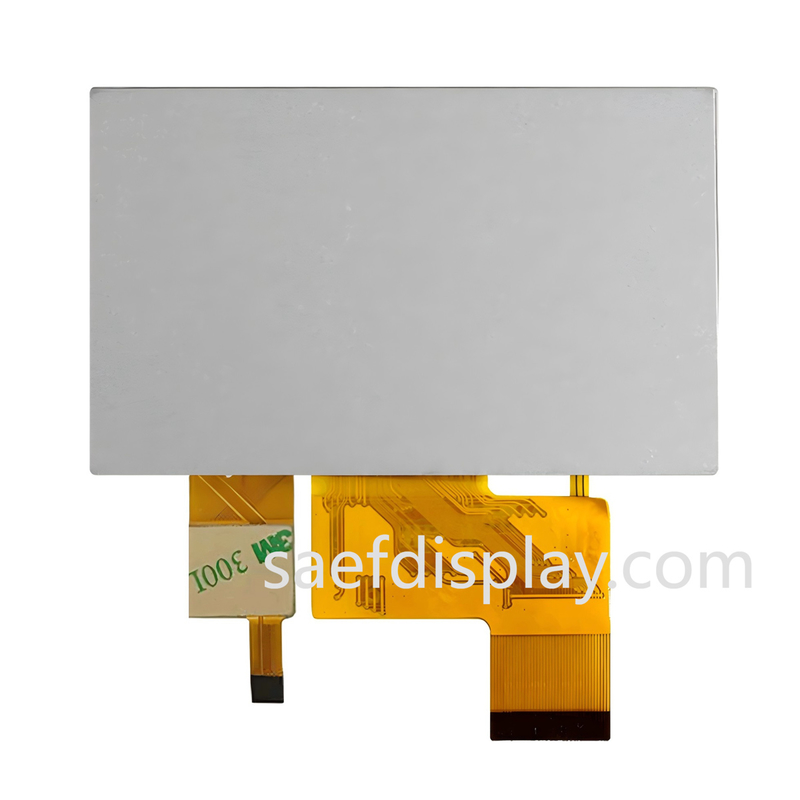

产品图像
