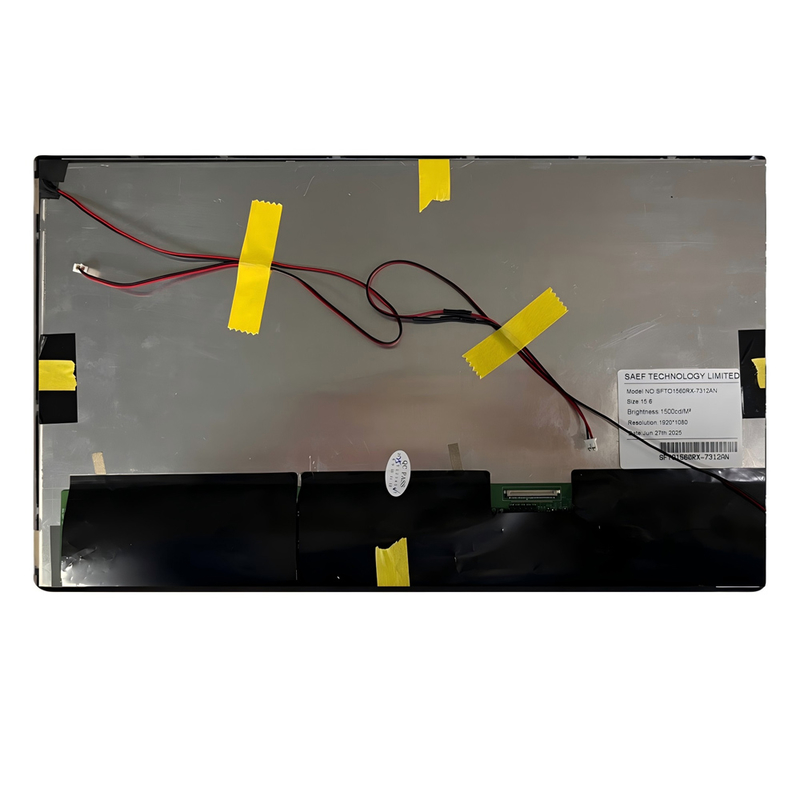

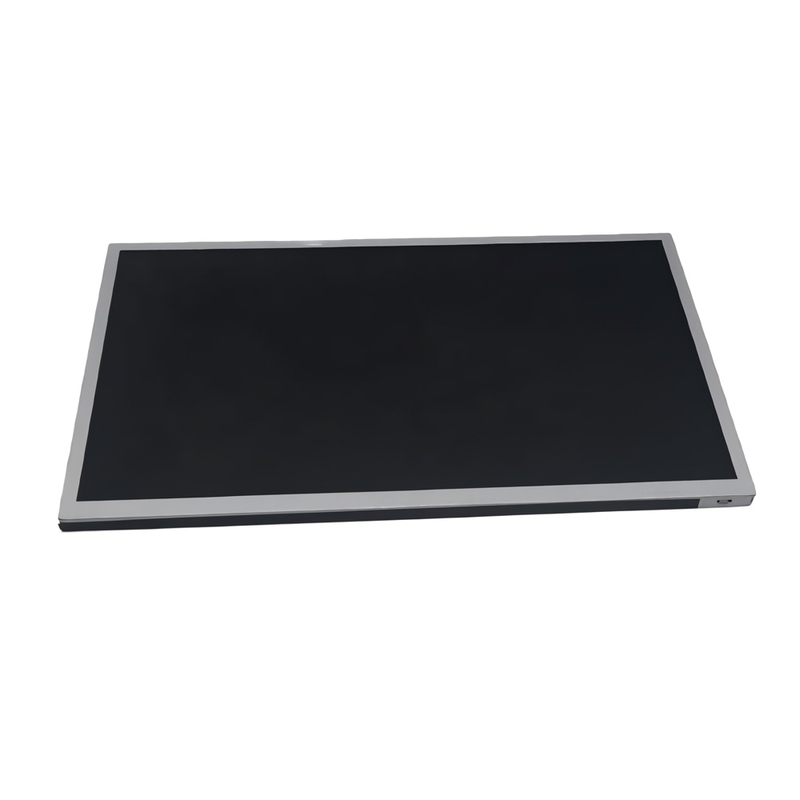

15.6“工业日光可读TFT液晶显示器- 1500尼特FHD，宽温度，LVDS接口

产地：深圳 / 中国

品牌：SAEF

型号：SFTO1560RX-7312AN

认证：ISO9001 / ISO14000

资料下载视频播放

产品详情

Screen Size:	15.6-inch Diagonal	Brightness:	1500 Cd/m² (Typ)
Resolution:	1920×1080 FHD	Viewing Angle:	85°/85°/85°/85° (CR≥10)
Operating Temp.:	-30°C To +85°C	Interface:	40-pin 2-Channel LVDS
Power Consumption:	4W (Typ) @ 3.3V	Contrast Ratio:	800:1 (Typ)
Backlight:	External LED Light Bar	LED Lifetime:	24.35W, 50,000hrs Lifespan
Surface Treatment:	Anti-Glare, 3H Hard Coating	Color Gamut:	72% NTSC
Vibration/ESD Rated:	MIL-STD-202G Compliant	Compliance:	REACH & RoHS Compliant

恶劣环境中无与伦比的可见性

SFTO1560RX-7312AN 15.6“高光泽度TFT LCD显示屏可在直射阳光下提供1500nits亮度清晰可见性。该FHD（1920×1080）设计为工业应用，具有反粘贴的3H硬涂层，并具有完整的-30°Ciofical for-30°c of tor-flaw of-355555555。系统和重型机械。

关键的技术优势

工业耐用性：通过热休克（-30°C85°C），振动（10-55Hz）和±12KV ESD测试。

长期背光： 50,000小时的LED系统，输入45.1V（540mA typ）。

灵活集成：具有反向扫描控制（Rev_Scan PIN）的LVD接口进行多功能安装。

真正的颜色性能： 72％NTSC颜色域和800：1对比度。

认证的可靠性

ISO 9001/14001认证并符合欧盟ROHS/涉及标准。包括一年的功能保修。

理想的：

户外数字标牌

施工和农业设备

航空驾驶舱显示

海洋导航系统

医疗设备

请求样本：通过sales2@saef.com.cn与我们的欧盟/美国支持团队联系，以获取工业定价和定制选项。

规格

Item	Specification	Unit
Screen Size	15.6” real diagonal
Beael Opening	365.72x220.39x12.5	mm
Pixel Number	1920 x R.G.B. x 1080	pixel
Pixel Pitch	0.17925 (H) x 0.17925 (V)	mm
Display Area	344.16x193.59	mm
Display Colors	16.7M	color
Transmissive Mode	Normally Black	-
Surface Treatment	AG type, 3H hard coating,	-
Power Consumption	Total cell
TC	8100	k
NTSC	72 (Typ)	%

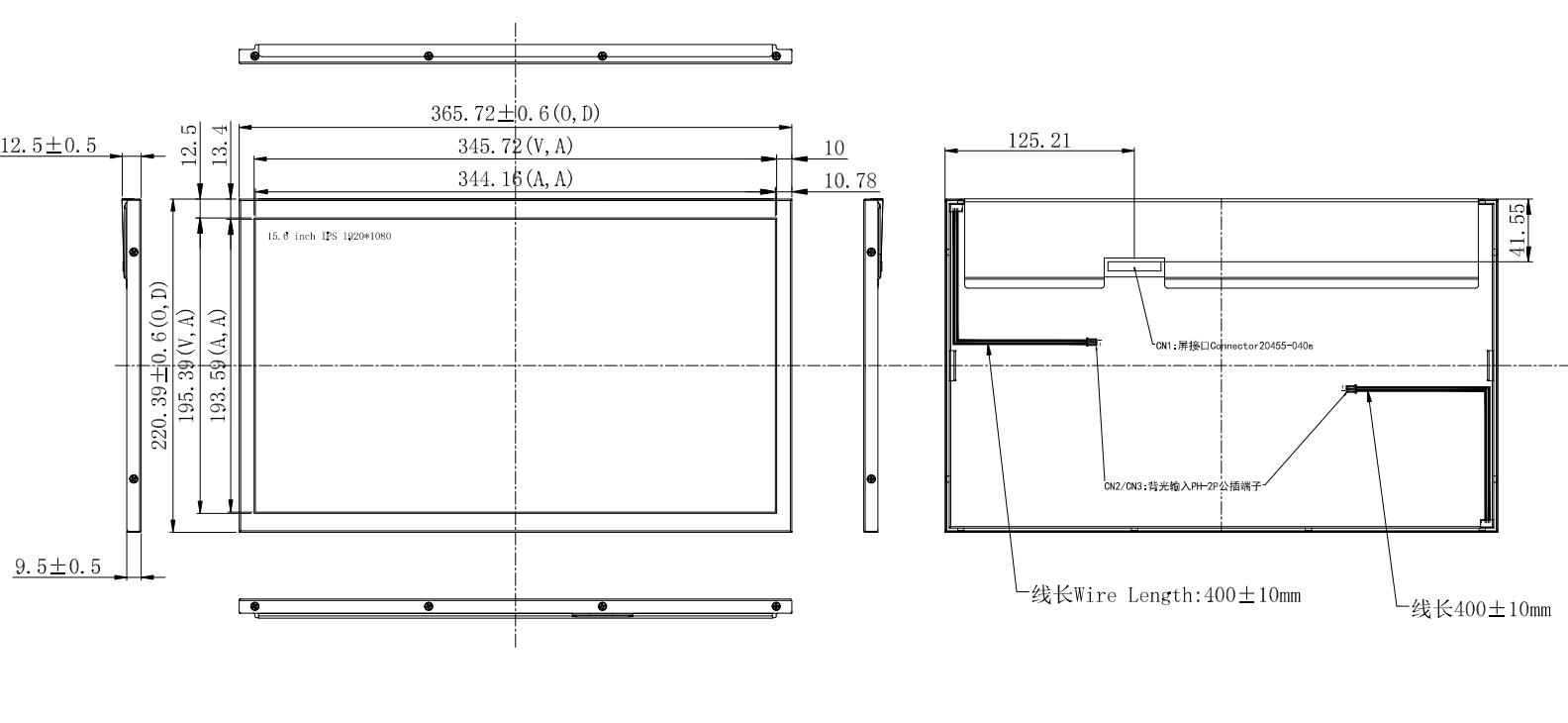

外部尺寸

详情-1

接口引脚定义

Pin	Name	Description
1	NC	Not connection, this pin should be open
2	NC	Not connection, this pin should be open
3	NC	Not connection, this pin should be open
4	NC	Not connection, this pin should be open
5	NC	Not connection, this pin should be open
6	NC	Not connection, this pin should be open
7	NC	Not connection, this pin should be open
8	NC	Not connection, this pin should be open
9	NC	Not connection, this pin should be open
10	NC	Not connection, this pin should be open
11	LCD_VCC	LCD logic and driver power 3.3V
12	LCD_VCC	LCD logic and driver power 3.3V
13	LCD_VCC	LCD logic and driver power 3.3V
14	NC	Not connection, this pin should be open
15	NC	Not connection, this pin should be open
16	NC	Not connection, this pin should be open
17	REV_SCAN	Low → Normal Mode. High → Horizontal & Vertical Reverse Scan
18	RXO0-	Negative LVDS differential data input. Channel O0 (odd)
19	RXO0+	Positive LVDS differential data input. Channel O0 (odd)
20	RXO1-	Negative LVDS differential data input. Channel O1 (odd)
21	RXO1+	Positive LVDS differential data input. Channel O1 (odd)
22	RXO2-	Negative LVDS differential data input. Channel O2 (odd)
23	RXO2+	Positive LVDS differential data input. Channel O2 (odd)
24	LCD GND	LCD logic and driver ground
25	RXOC-	Negative LVDS differential clock input. (odd)
26	RXOC+	Positive LVDS differential clock input. (odd)
27	LCD GND	LCD logic and driver ground
28	RXO3-	Negative LVDS differential data input. Channel O3(odd)
29	RXO3+	Positive LVDS differential data input. Channel O3 (odd)
30	RXE0-	Negative LVDS differential data input. Channel E0 (even)
31	RXE0+	Positive LVDS differential data input. Channel E0 (even)
32	RXE1-	Negative LVDS differential data input. Channel E1 (even)
33	RXE1+	Positive LVDS differential data input. Channel E1 (even)
34	LCD GND	LCD logic and driver ground
35	RXE2-	Negative LVDS differential data input. Channel E2 (even)
36	RXE2+	Positive LVDS differential data input. Channel E2 (even)
37	RXEC-	Negative LVDS differential clock input. (even)
38	RXEC+	Positive LVDS differential clock input. (even)
39	RXE3-	Negative LVDS differential data input. Channel E3 (even)
40	RXE3+	Positive LVDS differential data input. Channel E3 (even)
