| Keywords: | TFT LCD Display 12.1 Inch | Resolution: | 1024*768 Pixels |
| Active Area: | 245.76*184.32mm | LCD Interface: | LVDS |
| Touch Screen: | No Touch (PCAP Optional) | Surface Luminance: | 1000 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ | Storage Temp.: | -30℃ To +80℃ |
| Display Type: | IPS Full Viewing Angles | Contrast Ratio: | 1000 |
| Display Color: | 16.7 M | LED Lifetime: | 40,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 12.1 Inch TFT LCD Display, 1024*768 TFT LCD Display, 1000nits High Brightness LCD Display | ||
高亮度1000nits 12.1英寸IPS TFT LCD显示
通过我们的视觉体验来提高您的视觉体验12.1英寸高亮度IPS TFT LCD显示。该显示为清晰度和性能而设计，提供了显着的亮度1000尼特，即使在明亮的环境中，也可以确保充满活力的图像。分辨率1024x768像素，每个细节都栩栩如生，非常适合包括工业控制，医疗设备和室外标牌在内的各种应用。
关键功能：
• 出色的亮度：峰值亮度为1000列，在任何照明条件下都可以享受令人惊叹的视觉效果。
• IPS技术：我们的面内切换（IPS）技术可确保视角和一致的色彩再现，从任何角度增强您的观看体验。
• 解决：1024x768点的清晰清晰分辨率可提供细节和出色的图像质量。
• LVD接口：LVD（低压差异信号传导）界面可确保高速数据传输，使其与广泛的系统和设备兼容。
• 多功能应用程序：该显示非常适合工业，医疗，汽车和商业用途，是为耐用性和可靠性而构建的。
规格：
• 屏幕大小：12.1英寸
• 亮度：1000尼特
• 接触：1024x768点
• 界面：LVD
• 触摸屏：电容触摸屏可选
用我们的高亮度升级设备12.1英寸IPS TFT LCD显示- 卓越可见性和性能的理想选择。无论您是开发高级诊断工具还是寻求增强产品显示器，此LCD屏幕都可以满足您对可靠性和质量的需求。
立即订购！如今，通过清晰的视觉效果和鲜艳的色彩使您的项目栩栩如生！
特征
| ITEM | CONTENTS | UNIT |
| LCD Type | TFT / Transmissive / Normally Black | |
| Size | 12.1 | Inch |
| Viewing Angle | 85/85/85/85 | |
| Display Mode | Nomally Black | |
| LCD (W × H) | 260.48 × 204 × 7.2 | mm |
| Active Area (W × H) | 245.76 × 184.32 | mm |
| Dot Pitch (W × H) | 0.08 × 0.08 | mm |
| Number of Dots (Pixels) | 1024 (RGB) × 768 | |
| White Point (x,y) (Under C Light) | X: 0.305, y: 0.347 (Typ.) | |
| Response Time | ≤35 | ms |
| LCD Luminance | 1000 (typical) | cd/m2 |
| Contrast Ratio | 1000:1 (Typ.) | |
| Interface Type | LVDS | |
| Colour Depth | 256K / 16.7M | |
| Pixel Arrangement | RGB Stripe | |
| Surface Treatment | AG | |
| Operating Temp | -20~70 | ℃ |
| Storage Temp | -30~80 | ℃ |

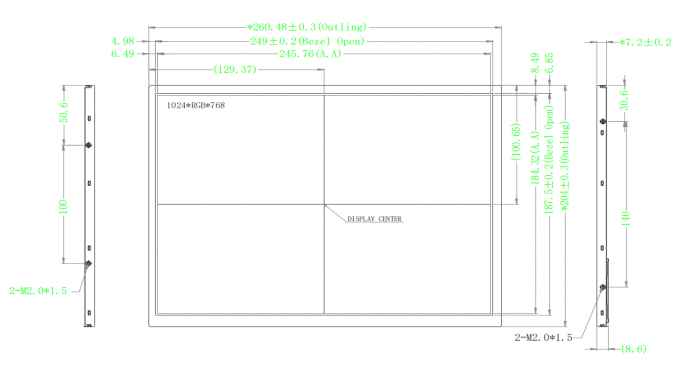

外部尺寸
绝对最大额定值
| PARAMETER | SYMBOL | MIN | MAX | UNIT |
| Power Supply Voltage | VDD | -0.3 | 3.8 | V |
| LED_VCCS | -0.3 | 25 | V | |
| Operating Temperature | TOP | -20 | 70 | °C |
| Storage Temperature | TST | -30 | 80 | °C |
背光规格
| ITEM | SYMBOL | VALUES | UNIT | REMARK | ||
| MIN. | TYP. | MAX. | ||||
| Output Power | LED+ | 23 | 24 | 25 | V | LED+ =24V @8S4P |
| 35 | 36 | 37 | V | LED+ =36V @11S4P | ||
| Output Power Current | ILED1-~LED4- | 44.55 | 45 | 45.45 | mA | Total 180mA (Typ.) (45mA x 4channel) |
光学特征
| ITEM | SYM | CONDITION | MIN | TYP | MAX | UNIT |
| Viewing Angle Range | θ | ∅ = 90° | 85 | 89 | - | deg |
| ∅ = 270° | 85 | 89 | - | deg | ||
| ∅ = 0° | 85 | 89 | - | deg | ||
| ∅ = 180° | 85 | 89 | - | deg | ||
| Color Chromaticity (CIE1931) | White,x | X=0, Y=0 R=G=B=255 Grayscale | -0.02 | 0.305 | +0.02 | - |
| White,y | 0.347 | |||||
| Center Transmittance | T% | 5.06 | 5.62 | - | % | |
| Response Time | Tr+Tf | - | 25 | 35 | ms | |
| Contrast Ratio | Cr | 700 | 1000 | - | - | |
| Response Time | Tr+Tf | x=0 , Y =0 | - | 25 | 35 | ms |
接口引脚定义
| NO. | SYMBOL | DESCRIPTION |
| 1 | RX3+ | Differential Data Input, CH3 (Positive) |
| 2 | RX3- | Differential Data Input, CH3 (Negative) |
| 3 | BIST | Normal operation/BIST pattern select BIST=0: Normal operation BIST=1: BIST mode |
| 4 | SEL68 | LVDS 6/8 bit select function control, SEL68=1: LVDS input data is 6 bit SEL68=0: LVDS input data is 8 bit |
| 5 | GND | Ground |
| 6 | RXC+ | Differential Clock Input (Positive) |
| 7 | RXC- | Differential Clock Input (Negative) |
| 8 | GND | Ground |
| 9 | RX2+ | Differential Data Input, CH2 (Positive) |
| 10 | RX2- | Differential Data Input, CH2 (Negative) |
| 11 | GND | Ground |
| 12 | RX1+ | Differential Data Input, CH1 (Positive) |
| 13 | RX1- | Differential Data Input, CH1 (Negative) |
| 14 | GND | Ground |
| 15 | RX0+ | Differential Data Input, CH0 (Positive) |
| 16 | RX0- | Differential Data Input, CH0 (Negative) |
| 17 | reLR | Left or right display control LR=1: Left-->Right LR=0: Right--> Left |
| 18 | reUD | Up or Down display control LR=1: Up-->Down LR=0: Down--> Up |
| 19 | VDD | Power supply 3.3V |
| 20 | VDD | Power supply 3.3V |

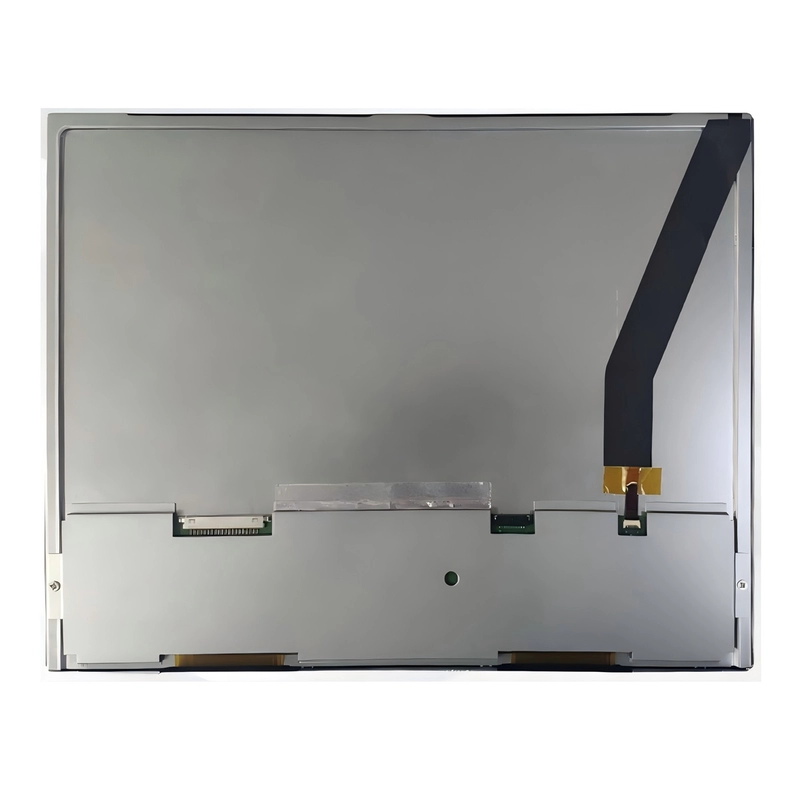

产品图片
