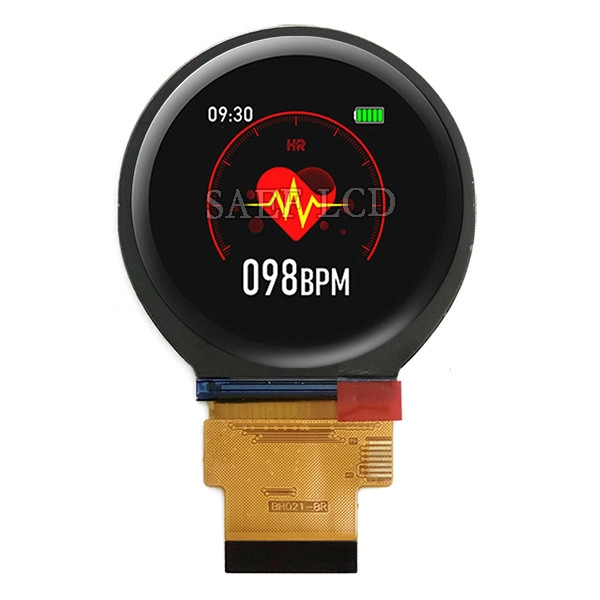

1000 Nit高亮度TFT显示屏，2.1英寸圆形TFT LCD 480x480 DOTS矩阵SPI和RGB接口

产品中心/ product: TFT彩屏高亮液晶屏 TFT触摸屏 HDMI TFT显示器工业级TFT屏 OLED屏条型TFT屏圆形TFT屏方形TFT屏全视角TFT屏电阻触摸TFT屏电子墨水屏树莓派触摸屏 OLED模块
推荐产品/ hot

产地：深圳 / 中国

品牌：SAEF

型号：SF-TC210B-8947A3N

认证：ISO9001 / ISO14000

资料下载视频播放

描述

Product:	2.1" Inch Round TFT	Resolution:	480x480 Dots
Interface:	3 Line SPI + 18 Bits RGB	Touch Screen:	No Touch (PCAP Optional)
Viewing Direction:	IPS (80/80/80/80)	Driver IC:	ST7701S
Pin Number:	40 Pins	Module Size:	58.18 X 59.71 X 2.26 (mm)
Active Area:	53.28 Mm Diameter	Connection:	ZIF
Surface Luminance:	1000 CD/M2 (Nits)	Operating Temp.:	-20℃ To +70℃
LED Lifetime:	40,000 Hours	Compliance:	REACH & RoHS Compliant
Highlight:	1000 Nits High Brightness TFT Display,2.1 Inch Round TFT LCD,480x480 Dots Matrix TFT Display

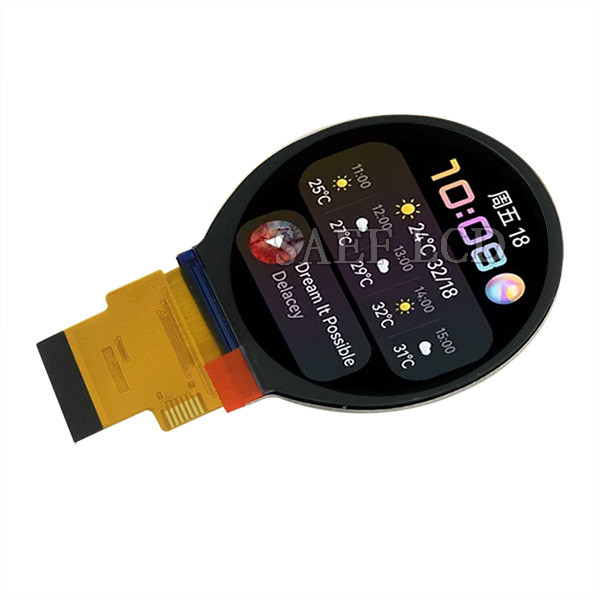

关于此项目SF-TC210B-8947A3N

介绍我们在展示技术方面的最新创新：高亮度1000 Nit 2.1英寸圆形TFT LCD！该紧凑的显示器旨在提供出色的图像清晰度和鲜艳的色彩，具有480x480点矩阵解决方案，确保每个细节都栩栩如生。

关键功能包括：

• Ultra-Bright 1000 Nit：即使在阳光直射的阳光下，也可以体验无与伦比的可见性，使其非常适合户外应用。

• 2.1英寸圆形设计：时尚时尚的外形为各种用法场景提供了多功能性，从可穿戴设备到仪表板显示器。

• 双接口支持：借助SPI和RGB接口，集成与现有系统无缝，为开发人员和制造商提供了灵活性。

无论您是希望增强用户在消费电子，汽车显示器还是工业接口方面的体验，此TFT LCD都是完美的解决方案。通过我们的高亮度显示，提高产品的视觉性能，使您的想法栩栩如生！

发现我们的显示质量差异与我们高亮度1000 Nit 2.1英寸圆形TFT LCD- 辉煌会遇到创新的地方！

一般规格

LCD type	2.1 inch
Resolution (H*V)	480(RGB)×480
Technology Type	a-Si TFT
Pixel Configuration	R.G.B. Vertical Stripe
Display Mode	Normally Black
Viewing Direction	ALL
Gray Scale Inversion Direction	-
OutlineDimensions (W x H x T) (mm)	58.1860.712.26
Active Area(mm)	53.28*53.28
CTP View Area(mm)	/
With /Without Touch screen	Without
Connector Type	0.5 PITCH 40PIN
Backlight Type	LED
Weight (g)	TBD
Display Interface	3SPI+18RGB
Number of color	262k
Display Driver IC	ST7701S

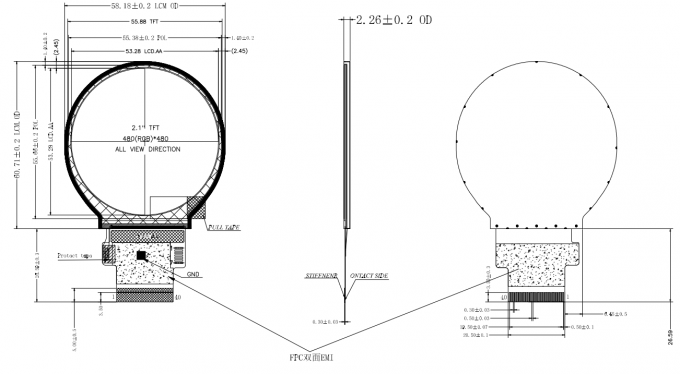

外部尺寸

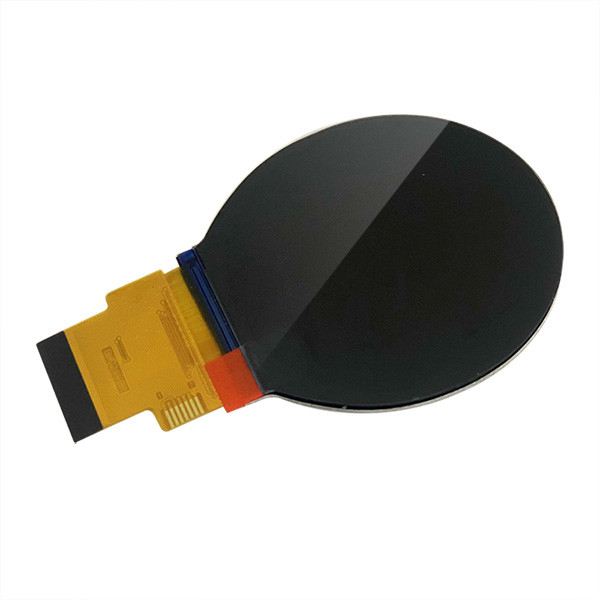

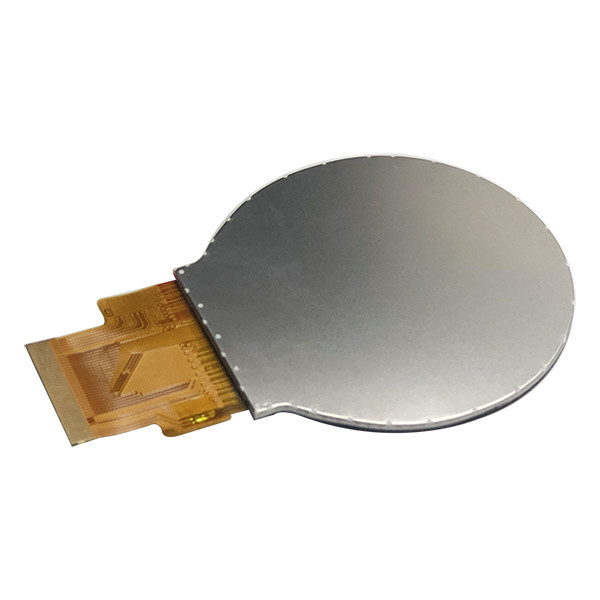

详情-1

接口引脚定义

1	LED A	LED ANODE
2	LED K	LED CATHODE
3	LED K	LED CATHODE
4	GND	Ground
5	VCI	Power supply
6	RESET	Reset Signal ,Active Low
7	NC	NC
8	NC	NC
9	SDA	SPI Data signal
10	Sck	SPI Clock signal
11	CS	SPI Chip select signal
12	PCLK	RGB dot clock signal
13	OF	RGB data enable signal
14	Vsync	RGB frame synchronizing signal
15	HSYNC	RGB line synchronizing signal
16~33	DB0~DB17	RGB data signal(DB0:BlUE LSB;DB5:BIUE MSB;DB6:GREEN LSB;DB11:GREEN,MSB;DB12:RED LSB;DB17:RED MSB)
34	GND	Ground
35	TP_INT	Touch Interrupt
36	Tp_sda	Touch IIC Data signal
37	TP_SCL	Touch IIC Clock signal
38	TP_RESET	Touch Reset Signal
39	TP_VCI	Touch Power supply
40	GND	Ground

绝对最大额定值

Item	Symbol	Value	Unit
Power supply voltage for logic	VDD	0.3~4.8	V
Input voltage	Vin	VDD+0.3	V
Operating temperature	TOPR	-20 to 70	°C
Storage temperature	Tstg	-30 to 80	°C

电特性
