描述
| Keywords: | 8 Inch TFT LCD | Resolution: | 1920*1200 |
| Interface: | LVDS | Pins: | 45 PINS |
| Touch Screen: | Available / Optional | Surface Luminance: | 1200 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours | Viewing Direction: | All Viewing Angles |
| Connection: | Connector Type | Operating Temp.: | –30℃ To +85℃ |
| Driving Board: | Available / Optional | LED Current Constant: | Available / Optional |
| Compliance: | REACH & RoHS Compliant | Certification: | ISO9001:2015 / ISO14000:2015 |
| Highlight: | 1200nits TFT LCD, 8 Inch TFT LCD, FHD TFT LCD | ||
引入8英寸TFT LCD显示屏 - 高亮度，用于工业和室外应用的全高清分辨率！
您是否正在寻找用于工业或室外项目的高性能显示解决方案？别再看！我们的8英寸TFT LCD显示屏具有1200 NIT亮度和全高清1920x1200分辨率，旨在满足甚至最具挑战性的环境的需求。
关键功能：
• 高亮度：1200 NIT可确保即使在阳光直射的阳光下也可以清晰可见。
• 全高清分辨率：1920x1200像素提供清晰详细的视觉效果。
• LVD界面：与工业系统和控制器的易于集成。
• IPS技术：广泛的视角和鲜艳的色彩。
• 电容触摸屏：交互式应用程序的可选触摸功能。
• 工业级：建立以承受恶劣的条件，非常适合户外使用。
• 美国最优惠的价格：负担得起，而不会损害质量。
理想的：
• 工业应用：控制面板，监视系统等。
• 室外使用：数字标牌，信息亭和其他室外显示器。
• 汽车显示：仪表板，信息娱乐系统等。
• 智能家庭系统：家庭自动化和安全性的优雅显示器。
• DIY项目：Arduino，Raspberry Pi和其他嵌入式系统。
为什么选择我们的8英寸TFT LCD显示屏？
• 耐用性：高质量的材料可确保长期性能。
• 多功能性：适用于广泛的应用。
• 易用性：简单的设置和与流行平台的集成。
• 客户支持：专门的支持团队为您的每一步提供帮助。
不要错过这个令人难以置信的报价！立即使用8英寸TFT LCD显示器升级您的项目！
产品规格
| Parameter | Specification | Unit | Remark |
| Outline Size | 181.7(H) ×119.8(V) ×5.5(T) | mm | FOG |
| Active Area | 172.224(H) ×107.640(V) | mm | Note 1.1 |
| Brightness | 1000-1200 | cd/m² | - |
| Number of Pixels | 1920(H)xRGB×1200 (V) | pixels | - |
| Pixel Pitch | 29.9(H) ×3×89.7(V) | μm | - |
| Pixel Arrangement | RGB Vertical Stripe | - | - |
| Display Colors | 16.7M | - | - |
| Color Gamut | 70%(Min.), 75% (Typ.) | CF @C Light | |
| Display Mode | Normally Black | - | - |
| Viewing Direction | 85/85/85/85 (Typ.) 80/80/80/80 (Min.) | Deg. | CR>=10 |
| Weight | TBD | gram | - |
| interface | 2-port LVDS( 8bit) | - | - |
| IC | FL5893DA | Note 1.2 |

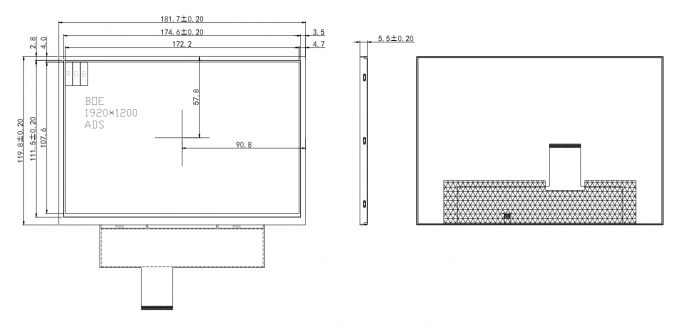

机械图
引脚描述
| No. | Symbol | Function | No. | Symbol | Function |
| 1 | VLED- | Power for LED backlighr (Cathode) | 24 | GND | ground |
| 2 | VLED- | Power for LED backlighr (Cathode) | 25 | OLV2P | LVDS differential data input Positive |
| 3 | VLED+ | Power for LED backlighr (Anode) | 26 | OLV2N | LVDS differential data input Negative |
| 4 | VLED+ | Power for LED backlighr (Anode) | 27 | GND | ground |
| 5 | NC | No connection | 28 | OLVCLKP | LVDS differential data input Positive |
| 6 | GND | ground | 29 | OLVCLKN | LVDS differential data input Negative |
| 7 | ELV3P | LVDS differential data input Positive | 30 | GND | ground |
| 8 | ELV3N | LVDS differential data input Negative | 31 | OLV1P | LVDS differential data input Positive |
| 9 | GND | ground | 32 | OLV1N | LVDS differential data input Negative |
| 10 | ELV2P | LVDS differential data input Positive | 33 | GND | ground |
| 11 | ELV2N | LVDS differential data input Negative | 34 | OLV0P | LVDS differential data input Positive |
| 12 | GND | ground | 35 | OLV0N | LVDS differential data input Negative |
| 13 | ELVCLKP | LVDS differential data input Positive | 36 | GND | ground |
| 14 | ELVCLK N | LVDS differential data input Negative | 37 | I2C _SDA | data input/output for I2C(please let these pins open.) |
| 15 | GND | ground | 38 | I2C _SCL | Clock signal for I2C(please let these pins open.) |
| 16 | ELV1P | LVDS differential data input Positive | 39 | VDD_OTP | Power supply for OTP circuit(please let these pins open.) |
| 17 | ELV1N | LVDS differential data input Negative | 40 | EEPEN | Only test Pin( please let these pins open.) |
| 18 | GND | ground | 41 | VDDIN | Power supply |
| 19 | ELV0P | LVDS differential data input Positive | 42 | VDDIN | Power supply |
| 20 | ELV0N | LVDS differential data input Negative | 43 | VDDIN | Power supply |
| 21 | GND | ground | 44 | VDDIN | Power supply |
| 22 | OLV3P | LVDS differential data input Positive | 45 | VDDIN | Power supply |
| 23 | OLV3N | LVDS differential data input Negative |
光学规格
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | Remark | |
| Viewing Angle Range | Horizontal | Θ3 | CR > 10 | 80 | 85 | - | Deg. | Note 6.1 |
| Θ9 | 80 | 85 | - | Deg. | ||||
| Vertical | Θ12 | 80 | 85 | - | Deg. | |||
| Θ6 | 80 | 85 | - | Deg. | ||||
| Contrast Ratio | CR | 1000 | 1200 | - | HC+APF | |||
| Cell Transmittance | Tr | Θ = 0 | 3.8 | 4.5 | - | % | Note 6.2/6.3 | |
| Chroma@CIE1931 | Rx | Θ = 0 | 0.654 | 0.674 | 0.694 | @C Light Note 6.4 | ||
| Ry | 0.302 | 0.322 | 0.342 | |||||
| Gx | 0.249 | 0.269 | 0.289 | |||||
| Gy | 0.582 | 0.602 | 0.622 | |||||
| Bx | 0.113 | 0.133 | 0.153 | |||||
| By | 0.095 | 0.115 | 0.135 | |||||
| Wx | 0.276 | 0.296 | 0.316 | |||||
| Wy | 0.318 | 0.338 | 0.358 | |||||
| Color Gamut | Θ = 0 | 70 | 75 | - | % | |||
| Response Time | Tr+Tf | Ta= 25 C | 30 | 35 | ms | Note 6.5 | ||
| Θ = 0 | - |
可靠性测试参数
| No | Items | Conditions |
| 1 | High Temperature Storage test(HTS) | 85℃ , 240hrs, Non-operational |
| 2 | Low Temperature Storage test(LTS) | -30℃ , 240hrs, Non-operational |
| 3 | High Temperature Operating test(HTO) | 85℃ , 240hrs, operational |
| 4 | Low Temperature Operating test(LTO) | -30℃ , 240hrs, operational |
| 5 | Thermal Humidity Operating test(THO) | 60℃/90%RH, 240hrs, operational |
| 6 | Thermal Cycle Storage test(TST) | -30~80℃ , 100cycles, 1hr/cycle, Non-operational 5*5 Pattern, 1hr 25℃±2℃ check pattern Gray 127,after 3 min, the mura must be d isap peared completely |
| 7 | Image Sticking |

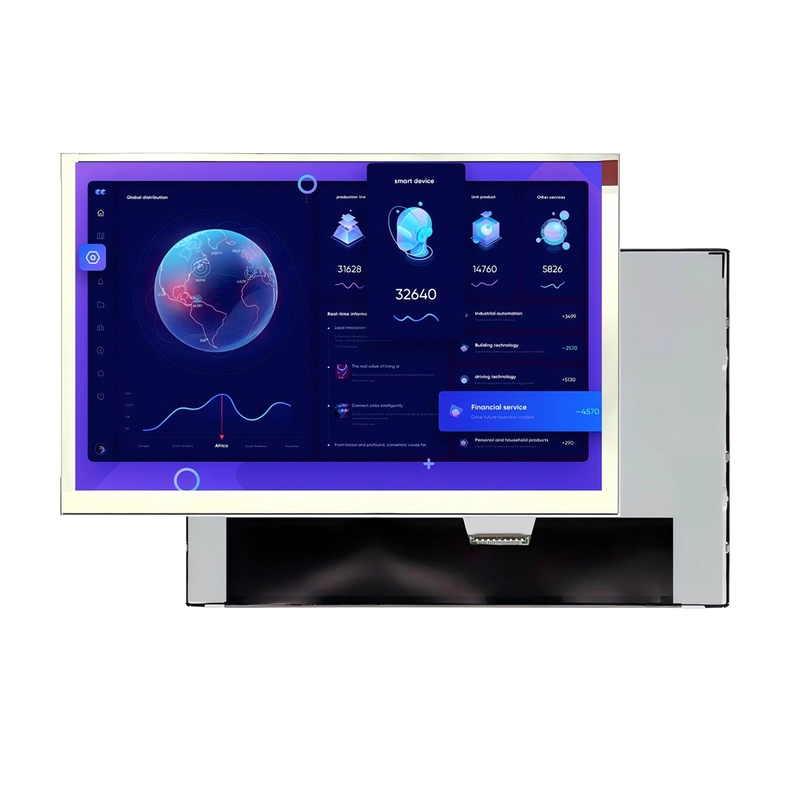

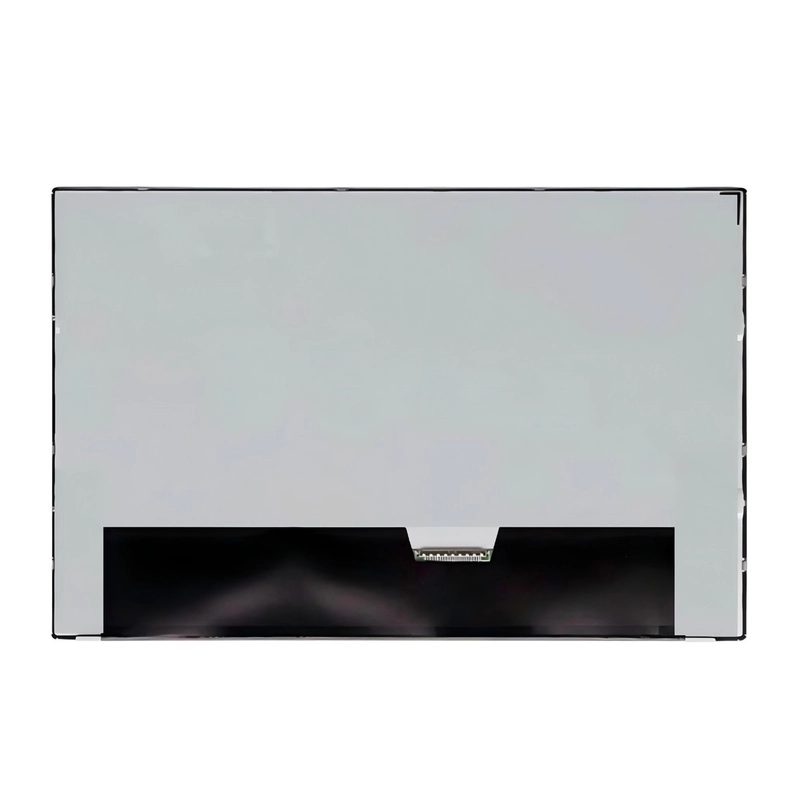

产品图像
